Part Number # 7904180000
SKU # 2121573
Image Disclaimers Message
Brand: Weidmuller
7904180000

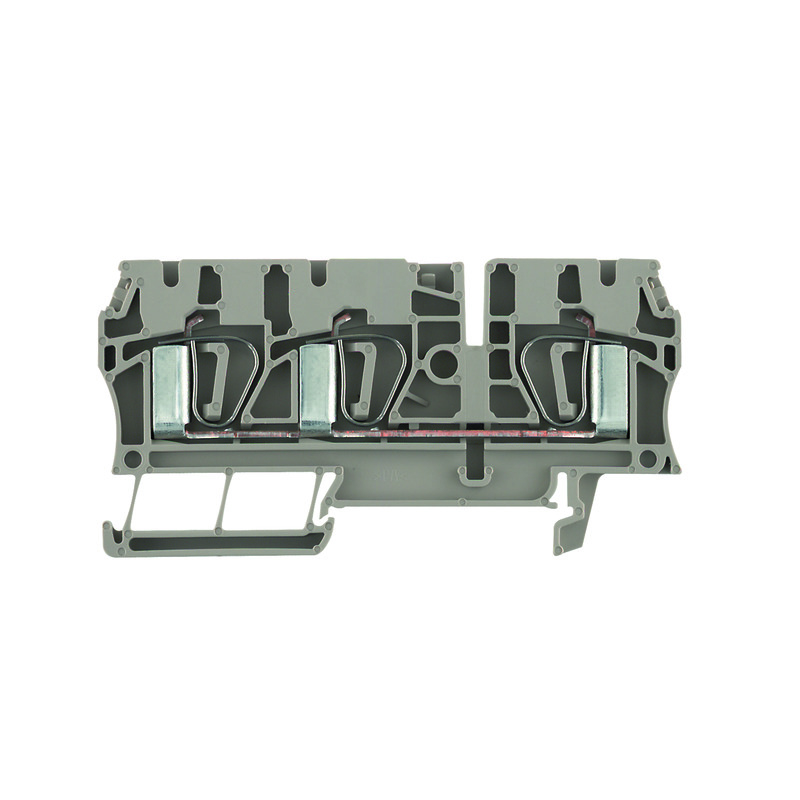

Weidmuller 7904180000 Klippon Terminal Block
Part Number # 7904180000
SKU # 2121573
$92.00 / 50Each
Typical price:$99.60 / Each
Weidmuller 7904180000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 7904180000 |
| SKU #: | 2121573 |
| Amperage Rating: | 32 A |
| Dimensions: | 83.5 mm H x 6.1 mm W x 43 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | Feed-Through Standard |
| Wire Size: | 4 sq-mm |
| Color: | Dark Beige |
| Connection type: | Tension Clamp |
| Country of origin: | Canada |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190575953 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$92.00 / 50Each
Typical price:$99.60 / Each
Quantity:
Weidmuller 7904180000 Klippon Terminal Block
Brand: Weidmuller
Part Number: 7904180000
Additional Description: WEID-7904180000 ZDU 4/3AN FEED-THROUGH TERMINAL BLOCK, TENSION-CLAMP CONNECTION, 4 MM, 800 V, 32 A, NUMBER OF CONNECTIONS: 3
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
7904180000 Item Features
- Spring connection with tension clamp technology
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
7904180000 Standards
RoHS Compliant|UL/cULus File No. E60693|CSA File No. 200039-1152892|EAC Certified|cULus Ex Recognized|ATEx Certified|DNV-GL Approved|IEC Ex Certified|INMETRO Certified|Ex ATEX KEMA Certified|Lloyds Register|RMRS Certified|UL 94 V-0 Flammability Rating|ATEX File No. KEMA00ATEX2107U|IECEX File No. IECEXULD05.0009U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G DSKU #2121573Part Number #7904180000UNSPSC39121410UPC04008190575953
