Part Number # 7906100000
SKU # 2163704
7906100000
Weidmuller 7906100000 Terminal Strip
Part Number # 7906100000
SKU # 2163704
Weidmuller 7906100000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 7906100000 |
| SKU #: | 2163704 |
| Barrier Style: | Enclosed |
| Dimensions: | 92 mm H x 22 mm W x 20 mm D |
| Screw Size: | M3 |
| Series: | BK Series |
| Torque Rating: | 0.5 to 0.6 N-m |
| Type: | 12-Pole Multi-Pin |
| Country of origin: | Canada |
| Material: | KrG |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190576301 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 7906100000 Terminal Strip
Brand: Weidmuller
Part Number: 7906100000
Weidmueller 7906100000 Terminal Strip, Multipin, 24 Terminal, Wire Size: 22 - 12 AWG Rated, 26 - 12 AWG Factory Wiring UL, 22 - 12 AWG Field Wiring UL, 22 - 12 AWG CSA, 32 AMP Rated, 20 AMP UL, 10 AMP CSA, 28 AMP ATEX, Voltage Rating: 400 V Rated, 300 V UL, 300 V CSA, 275 V ATEX, Material: 5VA UL 94 flammable KrG, Medium Yellow, Screw on Side Connection, 92 MM Length X 22 MM Width X 20 MM Height, 6 KV Rated Impulse Withstand Voltage, -60 To 130 DEG C Continuous Operating Temperature, 4 SQ-MM Wir
Additional Description: WEID-7906100000 BK 12/E SINGLE- AND MULTI-POLE TERMINAL STRIP, SCREW CONNECTION, 4 MM, 400 V, 32 A, NUMBER OF POLES: 12, 22 MM, MEDIUM YELLOW
Catalog Description: Weidmueller 7906100000 Terminal Strip, Multipin, 24 Terminal, Wire Size: 22 - 12 AWG Rated, 26 - 12 AWG Factory Wiring UL, 22 - 12 AWG Field Wiring UL, 22 - 12 AWG CSA, 32 AMP Rated, 20 AMP UL, 10 AMP CSA, 28 AMP ATEX, Voltage Rating: 400 V Rated, 300 V UL, 300 V CSA, 275 V ATEX, Material: 5VA UL 94 flammable KrG, Medium Yellow, Screw on Side Connection, 92 MM Length X 22 MM Width X 20 MM Height, 6 KV Rated Impulse Withstand Voltage, -60 To 130 DEG C Continuous Operating Temperature, 4 SQ-MM Wire Connection Cross Section, UL E60693VOL1SEC30 Listed, CSA 200039-2165696 Certified, ATEX SIRA01ATEX3247U Certified, IEC 60947-7-1, ROHS Compliant, For Mounting Rail
7906100000 Application
For the mounting rails7906100000 Item Features
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
7906100000 Standards
CSA Certified|RoHS Compliant|UL File No. E60693|IEC 60947-7-1|EAC Certified|IECEx II 2 G D|UR Certified|ATEX Certified|KEMA KEUR Certified|UL 94 V-0/5VA Flammability RatingSKU #2163704Part Number #7906100000UNSPSC39121410UPC04008190576301

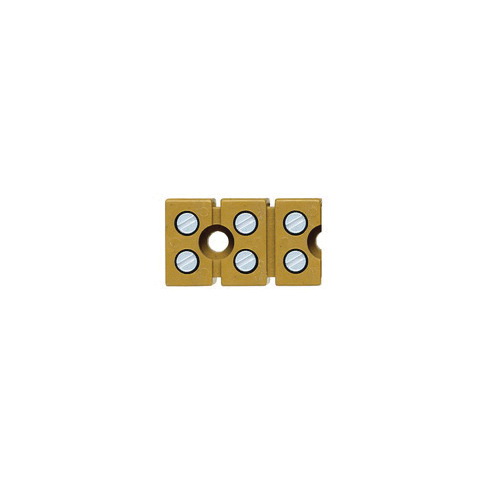

Image provided may only be a representation of final product and may include optional equipment
