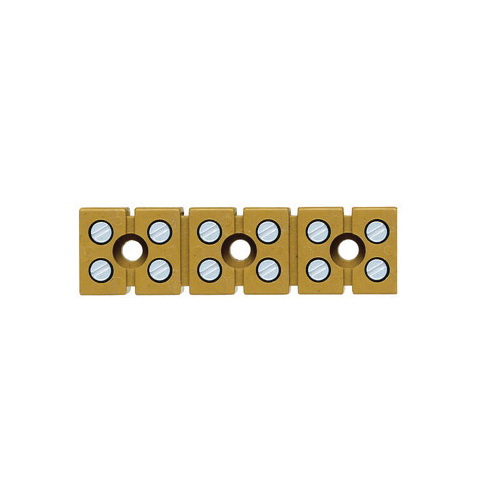

Weidmuller 7906120000 Terminal Strip

Weidmuller 7906120000 Terminal Strip

Brand: Weidmuller

Part Number: 7906120000

Weidmueller 7906120000 Terminal Strip, Multipin, 6 Terminal, Wire Size: 22 - 12 AWG Rated, 22 - 12 AWG Factory Wiring UL, 22 - 12 AWG Field Wiring UL, 22 - 12 AWG CSA, 24 AMP Rated, 20 AMP UL, 25 AMP CSA, 21 AMP ATEX, Voltage Rating: 400 V Rated, 600 V UL, 300 V CSA, 275 V ATEX, Material: 5VA UL 94 flammable KrG, Medium Yellow, Screw on Side Connection, 26-1/2 MM Length X 15 MM Width X 16.1 MM Height, 6 KV Rated Impulse Withstand Voltage, -60 To 130 DEG C Continuous Operating Temperature, 2.5 SQ

Additional Description: WEID-7906120000 MK 3/3/E SINGLE- AND MULTI-POLE TERMINAL STRIP, SCREW CONNECTION, 2.5 MM, 400 V, 24 A, NUMBER OF POLES: 3, 26.5 MM, MEDIUM YELLOW

Catalog Description: Weidmueller 7906120000 Terminal Strip, Multipin, 6 Terminal, Wire Size: 22 - 12 AWG Rated, 22 - 12 AWG Factory Wiring UL, 22 - 12 AWG Field Wiring UL, 22 - 12 AWG CSA, 24 AMP Rated, 20 AMP UL, 25 AMP CSA, 21 AMP ATEX, Voltage Rating: 400 V Rated, 600 V UL, 300 V CSA, 275 V ATEX, Material: 5VA UL 94 flammable KrG, Medium Yellow, Screw on Side Connection, 26-1/2 MM Length X 15 MM Width X 16.1 MM Height, 6 KV Rated Impulse Withstand Voltage, -60 To 130 DEG C Continuous Operating Temperature, 2.5 SQ-MM Wire Connection Cross Section, UL E60693VOL1SEC13 Listed, CSA 12400-149 Certified, ATEX SIRA01ATEX3248U Certified, IEC 60947-7-1, PCT ME25 ROHS Compliant, For Mounting Rail
