7906210000

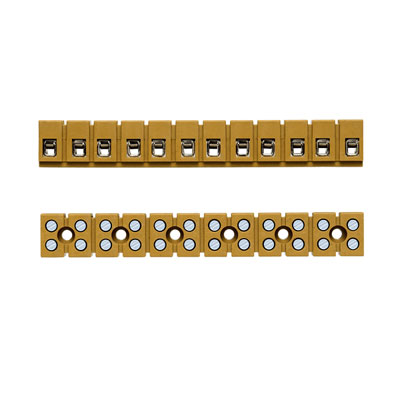

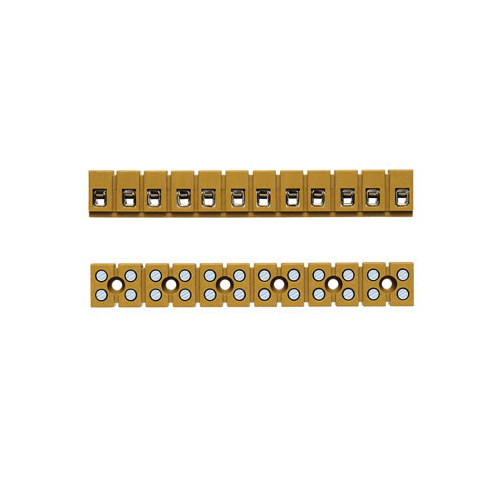

Weidmuller 7906210000 Electrical Terminal
Part Number # 7906210000
SKU # 2198591
$276.60 / 20Each
Typical price:$307.20 / Each
Weidmuller 7906210000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 7906210000 |
| SKU #: | 2198591 |
| Amperage Rating: | 24 A |
| Barrier Style: | Enclosed |
| Dimensions: | 110 mm H x 15 mm W x 16.1 mm D |
| Number of Terminals: | 24 |
| Screw Size: | M2.5 |
| Series: | MK Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Torque Rating: | 0.4 to 0.45 N-m |
| Type: | 12-Pole Multi-Pin |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Screw |
| Country of origin: | HU |
| Material: | KrG |
| Mounting type: | Surface |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04008190576417 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$276.60 / 20Each
Typical price:$307.20 / Each
Quantity:
- Weidmuller Terminal Strip, 12-Pole Multi-Pin, Series: MK Series, 400 V AC, 24 A, 24 Terminals, 22 to 12 AWG Wire, Enclosed Barrier Style, M2.5 Screw, 0.4 to 0.45 N-m Torque, Surface Mounting, Screw Connection, -60 to 130 deg C, KrG, Medium Yellow, 110 mm H x 15 mm W x 16.1 mm D Dimensions
7906210000 Application
For the mounting rails7906210000 Item Features
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
7906210000 Standards
RoHS Compliant|UL File No.E60693|CSA 12400-149|EAC Certified|IECEx II 2 G D|UR Certified|ATEX Certified|KEMA KEUR Certified|IEC 60947-7-1|UL 94 5VA Flammability RatingSKU #2198591Part Number #7906210000UNSPSC39121410UPC04008190576417
Image provided may only be a representation of final product and may include optional equipment
