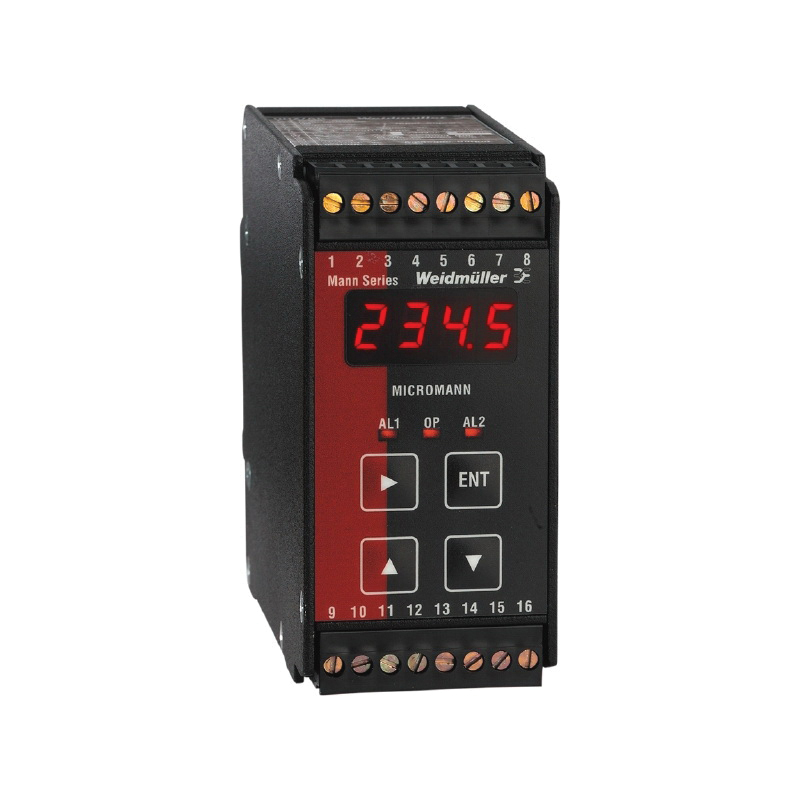

Weidmuller 7940126719 Process Monitoring
Part Number # 7940126719
SKU # 2137797
Weidmuller 7940126719 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 7940126719 |
| SKU #: | 2137797 |
| Dimensions: | 97 mm H x 46 mm W x 120 mm D |
| Input Type: | Thermocouple/mV Signals |
| Response Time: | 320 ms, 250 ms to 32 s |
| Series: | UTCAR |
| Specifications: | 12 to 50 VDC Supply, 300 V Rated, 2 kV Insulation, 6 W at 24 VDC Power Consumption, -25 to 70 deg C Storage, 0 to 90% Non-Condensation Humidity |
| Temperature Rating (Degrees F): | 0 to 60 deg C |
| Connection type: | Screw |
| Country of origin: | AU |
| Mounting type: | DIN Rail |
| Output current: | 0 to 22 mA |
| Output type: | Analog Standard Signals/(2) Relay/Voltage/Current/(2) NO Contacts |
| Output voltage: | 0 to 11 V |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121020 |
| UPC: | 04064675291008 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 7940126719 Process Monitoring
Brand: Weidmuller
Part Number: 7940126719
Weidmuller Process Monitoring, Series: UTCAR, Thermocouple/mV Signals Input, Analog Standard Signals/(2) Relay/Voltage/Current/(2) NO Contacts Output, 0 to 11 V Output, 0 to 22 mA Output, Screw, DIN Rail Mount, 0 to 60 deg C, 320 ms, 250 ms to 32 s Response, <0.1 % Accuracy, 12 to 50 VDC Supply, 300 V Rated, 2 kV Insulation, 6 W at 24 VDC Power Consumption, -25 to 70 deg C Storage, 0 to 90% Non-Condensation Humidity, 97 mm H x 46 mm W x 120 mm D
Additional Description: WEID-7940126719 9103813500 201-T3-6A 9103813500
7940126719 Includes
07940126719 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|cULus Listed|CE CertifiedSKU #2137797Part Number #7940126719UNSPSC39121020UPC04064675291008
