8019900000
Weidmuller 8019900000 Control Relay
Part Number # 8019900000
SKU # 2227460
$67.14 / Each
Weidmuller 8019900000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8019900000 |
| SKU #: | 2227460 |
| Cable Size: | 26 to 12 AWG |
| Connector Type: | Sub-D Female |
| Dimensions: | 80 mm L x 87 mm W x 80 mm H |
| Terminal Type: | LP3R/Screw |
| Cable type: | Solid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151703 |
| UPC: | 04008190052171 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$67.14 / Each
Quantity:
- Weidmuller Interface Module, Series: RS Series, 100 V AC, 1.5 A, 37 Ports, Sub-D Female Connector, Solid Cable, 26 to 12 AWG Cable, LP3R/Screw Terminal, 0 to 55 deg C, 80 mm L x 87 mm W x 80 mm H Dimensions
8019900000 Application
For signal transmission8019900000 Item Features
- Passive interfaces for signal transmission on a Sub-D connector equipped with a clamping yoke connection in accordance with IEC 807-2/DIN 41652
- Group with 9, 15, 37 and 50-pole male and female connectors
- One-to-one electrical connection between controller and field connections
- Very compact triple level modules can be attached to conventional TS35 or TS32 mounting rails
- Pin on Sub-D for the earth connection
8019900000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|DIN EN 50178|IEC 60807/DIN 41652|CE Certified|EAC CertifiedSKU #2227460Part Number #8019900000UNSPSC32151703UPC04008190052171

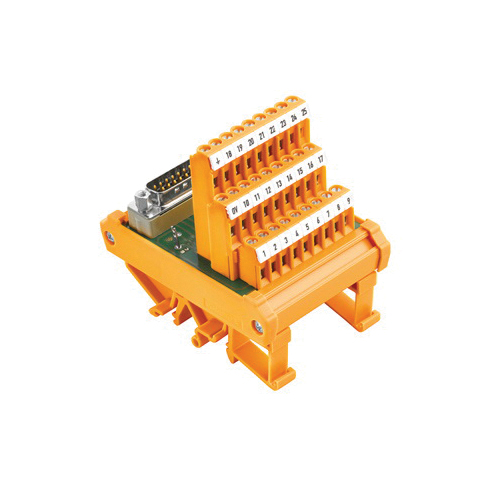

Image provided may only be a representation of final product and may include optional equipment
