Weidmuller 8537180000 Control Relay
Part Number # 8537180000
SKU # 2217365
$62.86 / Each
Weidmuller 8537180000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8537180000 |
| SKU #: | 2217365 |
| Cable Size: | 24 to 14 AWG |
| Dimensions: | 50 mm L x 87 mm W x 64 mm H |
| Terminal Type: | LM2NZF/Tension Clamp |
| Cable type: | Flat/Solid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151703 |
| UPC: | 04032248172931 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$62.86 / Each
Quantity:

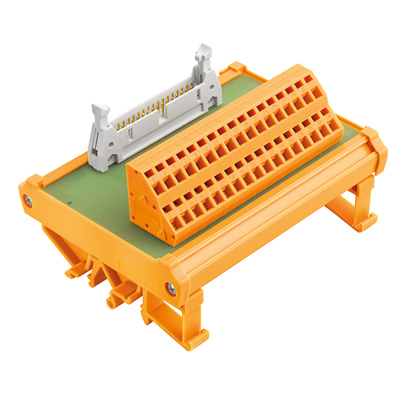

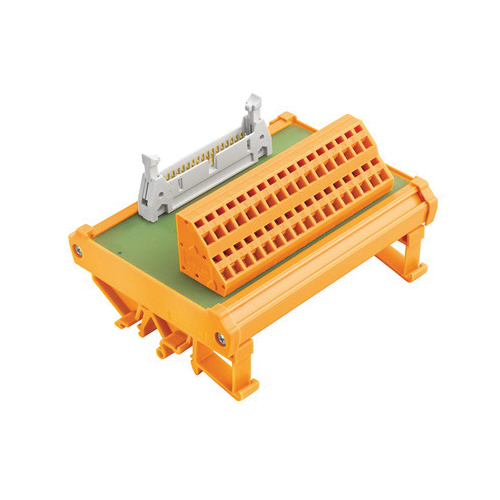

Weidmuller 8537180000 Control Relay
Brand: Weidmuller
Part Number: 8537180000
Additional Description: WEID-8537180000 RS F26 Z INTERFACE MODULE WITH TERMINAL, CONNECTOR, PLUG-IN CONNECTOR IN ACC. WITH IEC60603-13 / DIN41651, 26-POLE, LM2NZF 5.08MM, TENSION-CLAMP CONNECTION
Catalog Description: Transfer module as an interface with terminals and connectors.
8537180000 Application
For signal transmission8537180000 Item Features
- Passive interfaces for signal transmission on a flat cable connector equipped with a tension clamp connection in accordance with IEC 603-1/DIN 41651
- Group with 10 to 64-pole connectors
- One-to-one electrical connection between controller and field connections
- Very compact modules can be attached to conventional TS35 or TS32 mounting rails
- Longer attachment hooks
8537180000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|DIN EN 50178|IEC 60603-13/DIN 41651|CE Certified|EAC CertifiedSKU #2217365Part Number #8537180000UNSPSC32151703UPC04032248172931
Image provided may only be a representation of final product and may include optional equipment
