Weidmuller 8564060000 Terminal Block
Part Number # 8564060000
SKU # 2220715
$155.34 / Each
Typical price:$163.92 / Each
Weidmuller 8564060000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8564060000 |
| SKU #: | 2220715 |
| Series: | FBCon |
| Height: | 37 mm |
| Width: | 64 mm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151903 |
| UPC: | 04032248236596 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$155.34 / Each
Typical price:$163.92 / Each
Quantity:

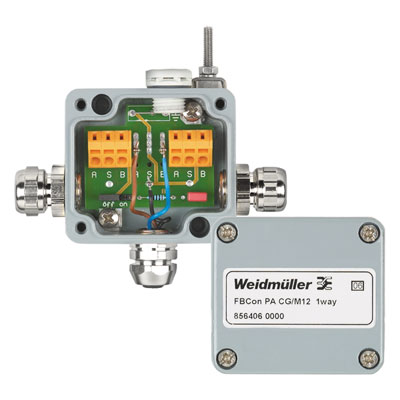

- Weidmuller Field Bus T-Distributor, Series: FBCon, 2 Outlets, IP66 Enclosure, Aluminum, Silver Gray, 37 mm Height, 64 mm Width
8564060000 Application
Non-Hazardous Area Locations, Food and Beverage Industry, Process Industries, Chemical Industry and Standard Industrial Applications8564060000 Item Features
- FBCon segment protectors are designed to protect connected field devices from over voltages and short-circuits
- As voltage limiting protective elements, suppressor diodes are used
- Due to the integrated current limitation, the segment is also protected against short-circuit on a spur line
- EMC cable glands, protection class IP66 and a wide operating temperature range safely protect your connections in harsh environments
- EMC cable glands for trunk and spurs
- M12 connector for spurs
- External earthing stud
- Pressure equalizing element
- Profibus PA/foundation fieldbus compatible
8564060000 Standards
RoHS Compliant|cULus File No. E141197|REACH SVHC Lead 7439-92-1|EAC Certified|ATEX CertifiedSKU #2220715Part Number #8564060000UNSPSC32151903UPC04032248236596
Image provided may only be a representation of final product and may include optional equipment
