8564090000

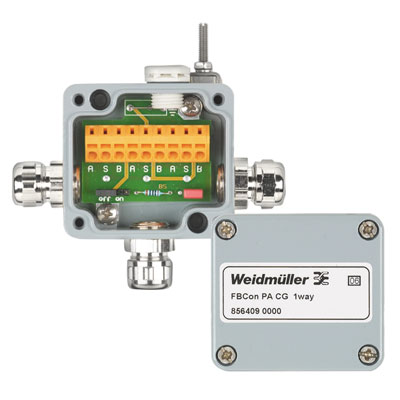

Weidmuller 8564090000 Terminal Block
Part Number # 8564090000
SKU # 2255402
$144.61 / Each
Typical price:$152.60 / Each
Weidmuller 8564090000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8564090000 |
| SKU #: | 2255402 |
| Cable Entry Size: | M16 |
| Series: | FBCon |
| Height: | 37 mm |
| Width: | 64 mm |
| UNSPSC: | 32151903 |
| UPC: | 04032248235711 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$144.61 / Each
Typical price:$152.60 / Each
Quantity:
Weidmuller 8564090000 Terminal Block
Brand: Weidmuller
Part Number: 8564090000
Additional Description: WEID-8564090000 FBCON PA CG 1WAY FIELD BUS DISTRIBUTOR
Catalog Description: Fieldbus distributor for coupling field devices or sensors. They are connected via spur lines. Communication and device power feed are transferred by a common 2-wire line.
8564090000 Application
Non-Hazardous Area Locations, Food and Beverage Industry, Process Industries, Chemical Industry and Standard Industrial Applications8564090000 Item Features
- FBCon segment protectors are designed to protect connected field devices from over voltages and short-circuits
- As voltage limiting protective elements, suppressor diodes are used
- Due to the integrated current limitation, the segment is also protected against short-circuit on a spur line
- EMC cable glands, protection class IP66 and a wide operating temperature range safely protect your connections in harsh environments
- EMC cable glands for trunk and spurs
- M12 connector for spurs
- External earthing stud
- Pressure equalizing element
- Profibus PA/foundation fieldbus compatible
8564090000 Standards
RoHS Compliant|cULus File No. E141197|REACH SVHC Lead 7439-92-1|EAC Certified|ATEX CertifiedSKU #2255402Part Number #8564090000UNSPSC32151903UPC04032248235711
Image provided may only be a representation of final product and may include optional equipment
