Part Number # 8564110000
SKU # 2255406
Image Disclaimers Message
Brand: Weidmuller
8564110000

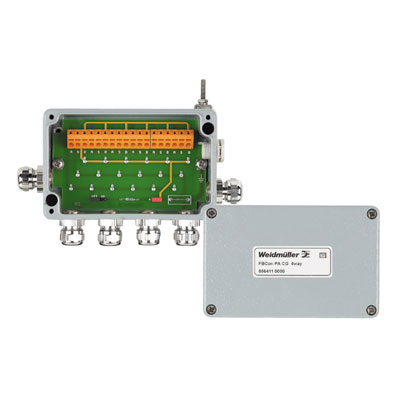

Weidmuller 8564110000 Field Bus T-Distributor
Part Number # 8564110000
SKU # 2255406
$274.65 / Each
Typical price:$283.24 / Each
Weidmuller 8564110000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8564110000 |
| SKU #: | 2255406 |
| Cable Entry Size: | M16 |
| Enclosure Type: | IP66 |
| Number of Outlets: | 4 |
| Series: | FBCon |
| Color: | Silver Gray |
| Country of origin: | PL |
| Height: | 37 mm |
| Material: | Aluminum |
| Width: | 80 mm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151903 |
| UPC: | 04032248235704 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$274.65 / Each
Typical price:$283.24 / Each
Quantity:
Weidmuller 8564110000 Field Bus T-Distributor
Brand: Weidmuller
Part Number: 8564110000
Additional Description: WEID-8564110000 S4M FBCON PA CG 4WAY FIELD BUS DISTRIBUTOR
Catalog Description: Fieldbus distributor for coupling field devices or sensors. They are connected via spur lines. Communication and device power feed are transferred by a common 2-wire line.
8564110000 Application
Non-Hazardous Area Locations, Food and Beverage Industry, Process Industries, Chemical Industry and Standard Industrial Applications8564110000 Item Features
- FBCon segment protectors are designed to protect connected field devices from over voltages and short-circuits
- As voltage limiting protective elements, suppressor diodes are used
- Due to the integrated current limitation, the segment is also protected against short-circuit on a spur line
- EMC cable glands, protection class IP66 and a wide operating temperature range safely protect your connections in harsh environments
- EMC cable glands for trunk and spurs
- M12 connector for spurs
- External earthing stud
- Pressure equalizing element
- Profibus PA/foundation fieldbus compatible
8564110000 Standards
RoHS Compliant|cULus File No. E141197|REACH SVHC Lead 7439-92-1|EAC Certified|ATEX CertifiedSKU #2255406Part Number #8564110000UNSPSC32151903UPC04032248235704
