Weidmuller 8613680000 Control System Distribution Box
Part Number # 8613680000
SKU # 2429045
8613680000
Weidmuller 8613680000 Control System Distribution Box
Part Number # 8613680000
SKU # 2429045
$376.96 / Each
Typical price:$397.78 / Each
Weidmuller 8613680000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8613680000 |
| SKU #: | 2429045 |
| Cable Entry Size: | M16 |
| Enclosure Type: | IP66 |
| Number of Outlets: | 4 |
| Series: | FBCon |
| Country of origin: | PL |
| Height: | 36 mm |
| Material: | Stainless Steel |
| Width: | 80 mm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151903 |
| UPC: | 04032248316977 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$376.96 / Each
Typical price:$397.78 / Each
Quantity:

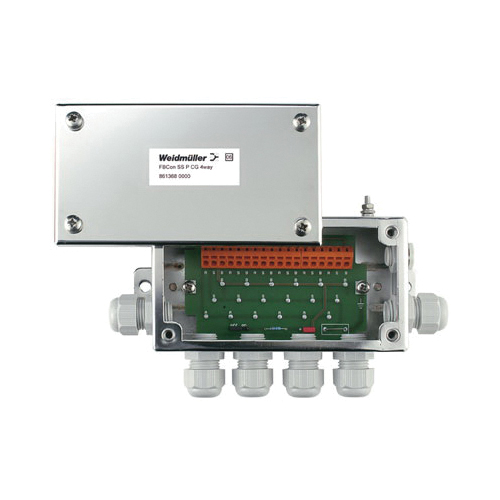

- Weidmuller Field Bus T-Distributor, Series: FBCon, 4 Outlets, IP66 Enclosure, M16 Cable Entry, Stainless Steel, Silver Gray, 36 mm Height, 80 mm Width
8613680000 Application
Non-Hazardous Area Locations, Food and Beverage Industry, Process Industries, Chemical Industry and Standard Industrial Applications8613680000 Item Features
- FBCon segment protectors are designed to protect connected field devices from over voltages and short-circuits
- As voltage limiting protective elements, suppressor diodes are used
- Due to the integrated current limitation, the segment is also protected against short-circuit on a spur line
- EMC cable glands, protection class IP66 and a wide operating temperature range safely protect your connections in harsh environments
- EMC cable glands for trunk and spurs
- M12 connector for spurs
- External earthing stud
- Pressure equalizing element
- Profibus PA/foundation fieldbus compatible
8613680000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|EAC Certified|ATEX CertifiedSKU #2429045Part Number #8613680000UNSPSC32151903UPC04032248316977
Image provided may only be a representation of final product and may include optional equipment
