8614800000

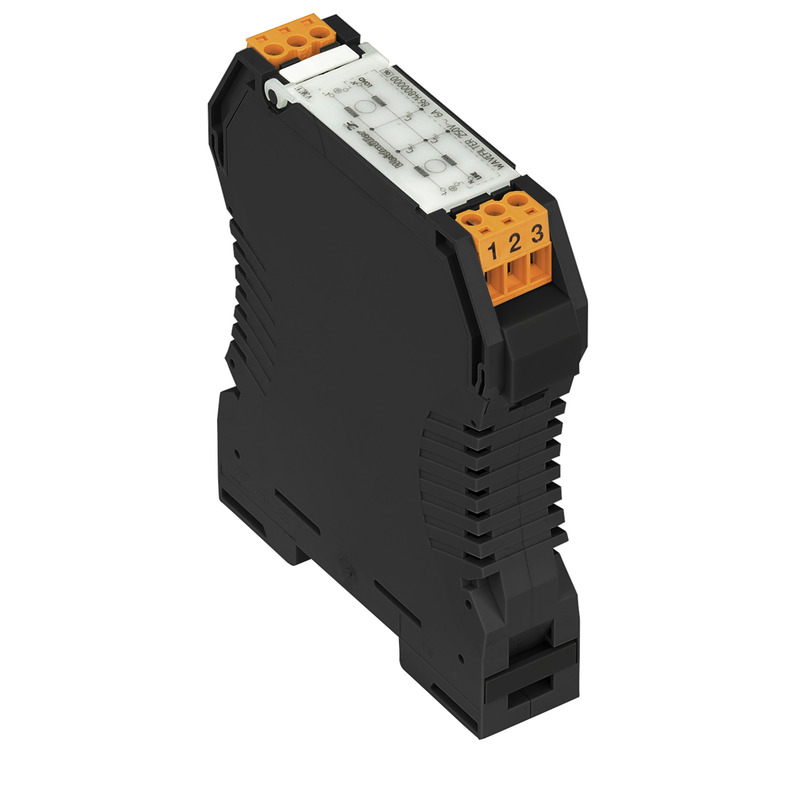

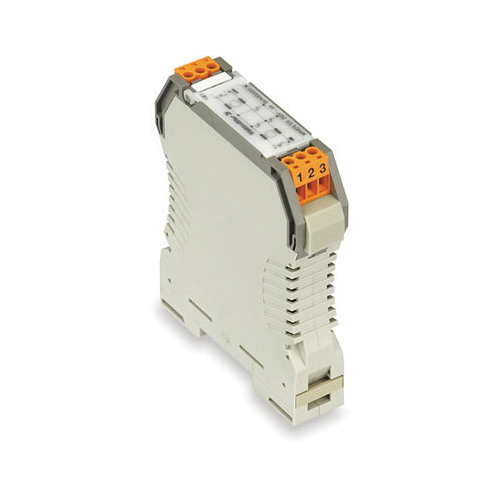

Weidmuller 8614800000 Surge Arrestor
Part Number # 8614800000
SKU # 2354786
$102.74 / Each
Weidmuller 8614800000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8614800000 |
| SKU #: | 2354786 |
| Dimensions: | 73.4 mm H x 22.5 mm W x 73.4 mm D |
| Electrical Ratings: | 250 V AC/DC, 6 A |
| Enclosure Type: | IP20 |
| Environmental Conditions: | -20 to 40 deg C Operating, -25 to 55 deg C Storage |
| Series: | WAVEFILTER Series |
| Wire Size: | 0.5 to 1.5 sq-mm |
| Country of origin: | PL |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121634 |
| UPC: | 04032248277094 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$102.74 / Each
Quantity:
- Weidmuller Main Power Filter, Series: WAVEFILTER Series, 250 V AC/DC, 6 A Electrical Rating, 0.5 to 1.5 sq-mm Wire, Environmental Conditions: -20 to 40 deg C Operating, -25 to 55 deg C Storage, IP20 Enclosure, DIN Rail Mounting, 73.4 mm H x 22.5 mm W x 73.4 mm D Dimensions, Beige
8614800000 Application
For surge protection8614800000 Item Features
- High symmetrical and asymmetrical attenuation
- Simple radio noise suppression in the cabinet
- The WAVEFILTER series eliminates the need for time consuming bolting processes of mains filters
- The filters are snapped onto TS 35 and connected to the device whose noise is to be suppressed
- <0.5 dB at 0.15 MHz, 18 dB at 1 MHz, 45 dB at 10 MHz, 40 dB at 100 MHz attenuation
8614800000 Standards
RoHS Compliant|UL File No. E64388|REACH SVHC Lead 7439-92-1|cULus File No. E64388 Recognized|EAC Certified|EN 50178|DIN 46228-1SKU #2354786Part Number #8614800000UNSPSC39121634UPC04032248277094
Image provided may only be a representation of final product and may include optional equipment
