8670750000
Weidmuller 8670750000 Electrical Terminal
Part Number # 8670750000
SKU # 2367418
$193.00 / 50Each
Typical price:$214.60 / Each
Weidmuller 8670750000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8670750000 |
| SKU #: | 2367418 |
| Amperage Rating: | 30/25/32 A |
| Dimensions: | 77.6 mm H x 6.1 mm W x 60 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | 2-Tier Feed-Through Modular Roof Style |
| Wire Size: | 26 to 10 AWG |
| Connection type: | Tension Clamp |
| Country of origin: | CZ |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248422012 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$193.00 / 50Each
Typical price:$214.60 / Each
Quantity:

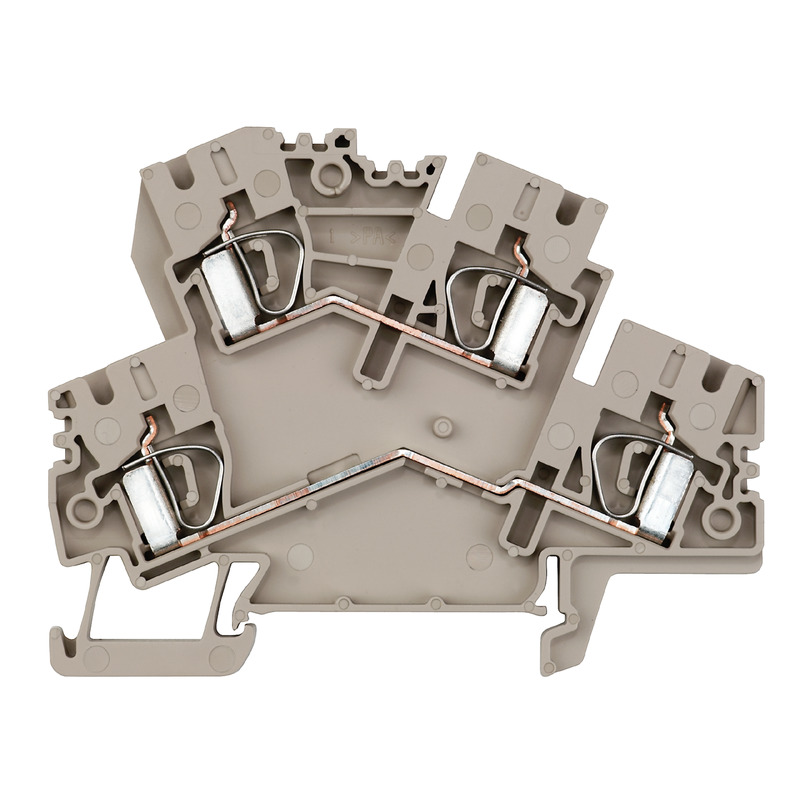

- Klippon Terminal Block, 2-Tier Feed-Through Modular Roof Style, Series: Z Series, 600/800 V, 30/25/32 A, 26 to 10 AWG Wire, 10 mm Wire Strip Length, DIN Rail Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Dark Beige, 77.6 mm H x 6.1 mm W x 60 mm D Dimensions
8670750000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 800 V IEC, 600 V UL and CSA
- 32 A IEC, 25 A UL and 30 A CSA
8670750000 Standards
RoHS Compliant|UL File No. E60693|CSA 200039-1236167|UL 94 V-0 Flammability Rating|CE Certified|EAC Certified|IEC 60947-7-1SKU #2367418Part Number #8670750000UNSPSC39121410UPC04032248422012
Image provided may only be a representation of final product and may include optional equipment
