8690220000

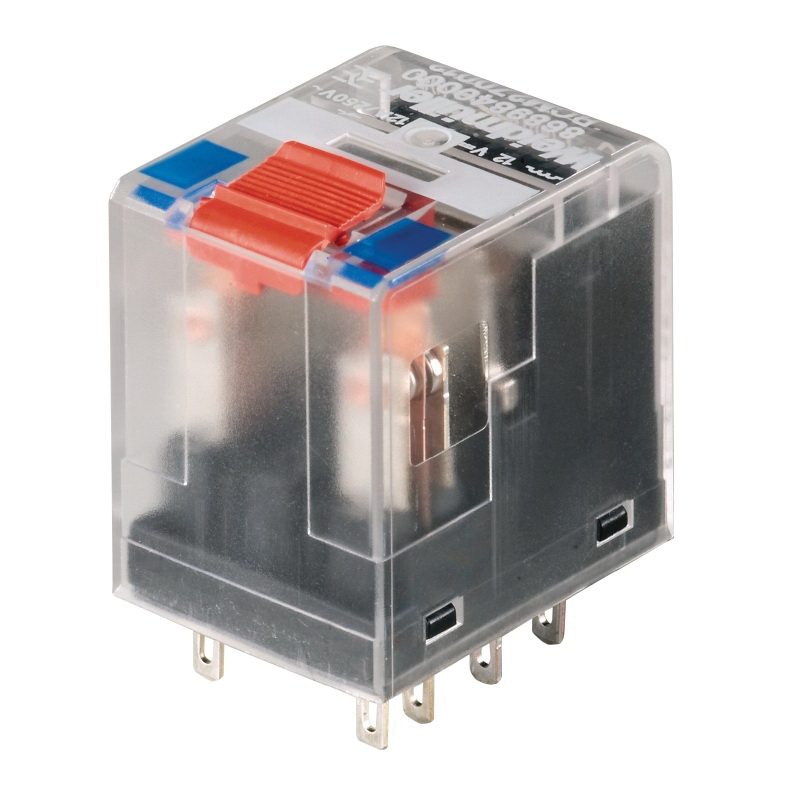

Weidmuller 8690220000 Socket Relay
Part Number # 8690220000
SKU # 2148822
$0.00 / 10Each
Typical price:$129.80 / Each
Weidmuller 8690220000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8690220000 |
| SKU #: | 2148822 |
| Amperage Rating: | 31.3 mA/6 A |
| Coil Voltage: | 24 V DC |
| Contact Form: | 4CO 4 Form C |
| Dimensions: | 28 mm H x 22.5 mm W x 29 mm D |
| Enclosure Type: | IP20 |
| Series: | RIDERSERIES RCM |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Plug-In |
| Type: | Miniature |
| Country of origin: | AT |
| Mounting type: | Socket |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04032248360840 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.00 / 10Each
Typical price:$129.80 / Each
Quantity:
- Weidmuller Industrial Relay, Miniature, Series: RIDERSERIES RCM, 31.3 mA, 6 A, 750 mW Power, 24 V DC Coil, 4CO 4 Form C Contact Form, Socket Mounting, Plug-In Terminal, IP20 Enclosure, -40 to 70 deg C, 28 mm H x 22.5 mm W x 29 mm D Dimensions
8690220000 Application
Industrial Applications8690220000 Item Features
- 1500 VA switching capacity
- Solder and plug connection
- Safe to touch test button, selectable locking
- White labeling panel
- Identification of coils (AC red/DC blue)
- 31.3 mA input rated current, 6 A output continuous current
8690220000 Standards
RoHS Compliant|CSA 249409-2426937|cULus File No. E224238|IEC 61810-1|UL 508|CE Certified|EAC Certified|VDE Approved|UL 94 V-2 Flammability RatingSKU #2148822Part Number #8690220000UNSPSC39122325UPC04032248360840
