Weidmuller 8731640000 Terminal Block
Image Disclaimers Message
Weidmuller 8731640000 Terminal Block
Weidmuller 8731640000 Terminal Block
Part #:8731640000
SKU #: 2163656
Key Features
Part #:8731640000
SKU #: 2163656
Brand: Weidmuller

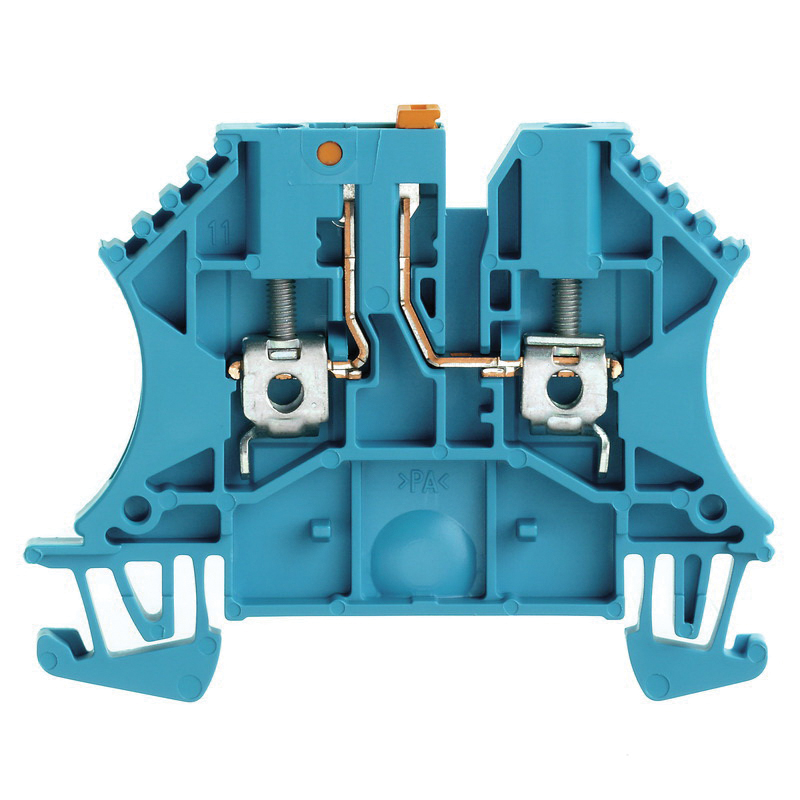

Weidmuller 8731640000 Terminal Block
Weidmueller 8731640000 Test-Disconnect Terminal, W-Series Single Tier, Wire Size: 30 - 12 AWG Rated, 30 - 12 AWG Factory Wiring UL, 30 - 12 AWG Field Wiring UL, 26 - 12 AWG CSA, M2.5 Terminal, 24 AMP Rated, 20 AMP UL, 10 AMP CSA, Voltage Rating: 500 V Rated, 600 V UL, 300 V CSA, Material: V-0 UL 94 Flammable Wemid, Blue, Mounting: Snap-On in TS 35, Screw On Side Connection, 60 MM Length X 5.1 MM Width X 48 MM Height, 6 KV Rated Impulse Withstand Voltage, -50 To 120 DEG C Continuous Operating Tem
Additional Description: WEID-8731640000 WTR 2.5 BL TEST-DISCONNECT TERMINAL, SCREW CONNECTION, 2.5 MM, 500 V, 24 A, PIVOTING, CROSS-DISCONNECT: WITHOUT, INTEGRAL TEST SOCKET: NO, TS 35, BLUE
Catalog Description: Weidmueller 8731640000 Test-Disconnect Terminal, W-Series Single Tier, Wire Size: 30 - 12 AWG Rated, 30 - 12 AWG Factory Wiring UL, 30 - 12 AWG Field Wiring UL, 26 - 12 AWG CSA, M2.5 Terminal, 24 AMP Rated, 20 AMP UL, 10 AMP CSA, Voltage Rating: 500 V Rated, 600 V UL, 300 V CSA, Material: V-0 UL 94 Flammable Wemid, Blue, Mounting: Snap-On in TS 35, Screw On Side Connection, 60 MM Length X 5.1 MM Width X 48 MM Height, 6 KV Rated Impulse Withstand Voltage, -50 To 120 DEG C Continuous Operating Temperature, 2.5 SQ-MM Wire Connection Cross Section, UL E60693VOL1SEC68 Listed, CSA 154685-1152890 Certified, IEC 60947-7-1 Certified, CE Certified, PCT ME25, ROHS Compliant
