8731660000

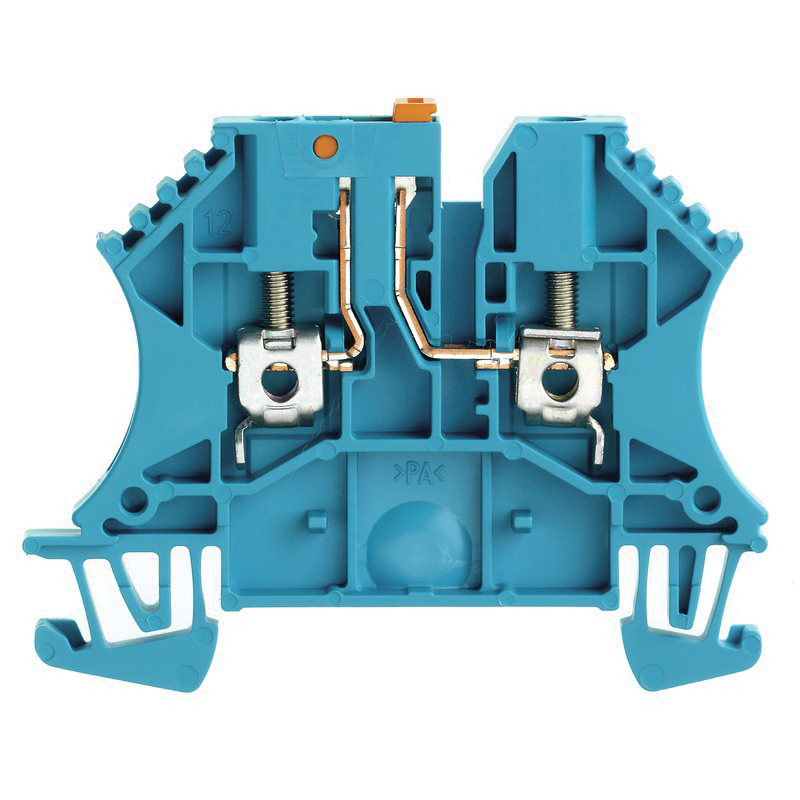

Weidmuller 8731660000 Electrical Terminal
Part Number # 8731660000
SKU # 2294176
$513.00 / 100Each
Typical price:$570.30 / Each
Weidmuller 8731660000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8731660000 |
| SKU #: | 2294176 |
| Dimensions: | 2.362 in H x 0.201 in W x 1.89 in D |
| Terminal Type: | Test Disconnect |
| Torque Rating: | 0.4 to 0.8 N-m |
| UNSPSC: | 39121410 |
| UPC: | 04032248404841 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$513.00 / 100Each
Typical price:$570.30 / Each
Quantity:
- Klippon Disconnect Terminal Block, Series: W Series, 300 V AC, 20 A, 30 to 12 AWG Wire, 10 mm Wire Strip Length, Test Disconnect Terminal, 0.4 to 0.8 N-m Torque, Snap-Fit Mounting, Thread Connection, -50 to 120 deg C, Wemid, Blue, 2.362 in H x 0.201 in W x 1.89 in D Dimensions
8731660000 Item Features
- Disconnection element, for plug-in cross-connector, one end without connector
- TS 35 mounting rail
- Right open sides
- 0.6 x 3.5 mm blade
- 0.13 to 4 sq-mm clamping range, rated connection
- On side connection direction
- One torque level with DMS electric screwdriver
- A3 gauge to IEC 60947-1
- M3 clamping screw
- 0.5 to 2.5 sq-mm minimum/maximum rated connection wire connection cross-section, finely stranded with wire to end ferrules DIN 46228/1
- 0.5 to 4 sq-mm minimum/maximum rated connection wire connection cross-section, solid core
- 1.5 to 4 sq-mm minimum/maximum rated connection wire connection cross-section, stranded
- Pivoting slitting
- 1.33 mOhm volume-resistance according to IEC 60947-7-x
- 6 kV rated impulse withstand voltage
- 3 pollution severity
- 2.5 sq-mm screw connection
- UL 94 flammability rating V-0
- WTR 2.5 STB2.3 BL type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
8731660000 Standards
UL File No. E60693 Listed|CE Certified|IEC|CSA Certified|EAC|RoHS CompliantSKU #2294176Part Number #8731660000UNSPSC39121410UPC04032248404841
Image provided may only be a representation of final product and may include optional equipment
