8731700000

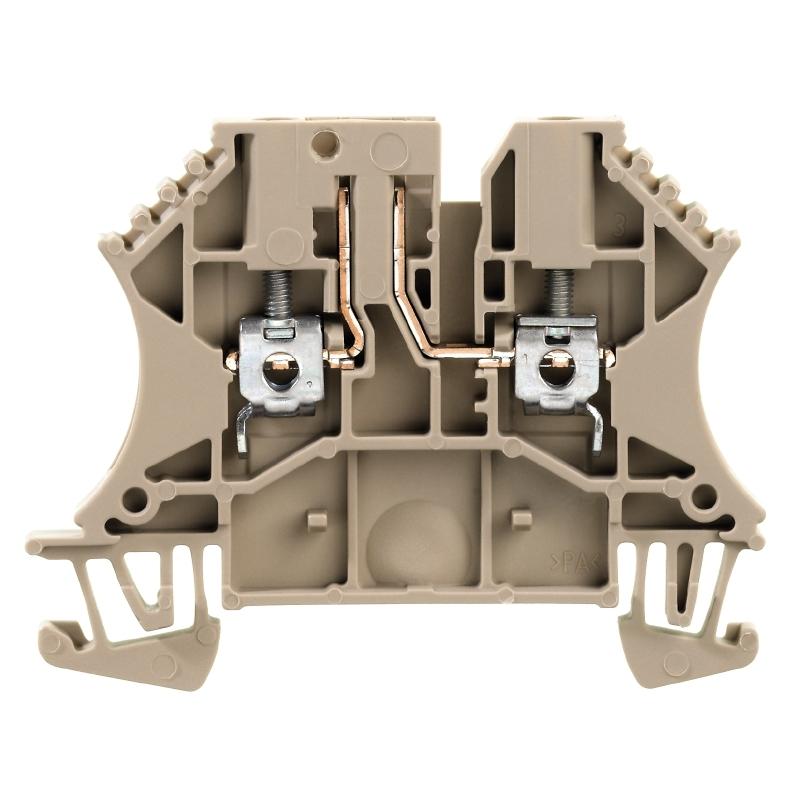

Weidmuller 8731700000 Terminal Block
Part Number # 8731700000
SKU # 2190636
$439.00 / 100Each
Typical price:$487.80 / Each
Weidmuller 8731700000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8731700000 |
| SKU #: | 2190636 |
| Dimensions: | 2.362 in H x 0.201 in W x 1.89 in D |
| Terminal Size: | 0.6 x 3.5 mm |
| Terminal Type: | Test Disconnect |
| Torque Rating: | 0.4 to 0.8 N-m |
| Type: | 1-Tier |
| Connection type: | Clamping Yoke Screw |
| UNSPSC: | 39121410 |
| UPC: | 04032248404889 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$439.00 / 100Each
Typical price:$487.80 / Each
Quantity:
- Weidmuller, 8731700000, Terminal Blocks, 1-Tier, Series: W Series, 500 V, 24 A, 2 Pole, 30 to 12 AWG Wire, 10 mm Wire Strip Length, Test Disconnect Terminal, 0.6 x 3.5 mm Terminal, 0.4 to 0.8 N-m Torque, Snap-Fit Mounting, Clamping Yoke Screw Connection, -50 to 120 deg C, Wemid, Dark Beige, 2.362 in H x 0.201 in W x 1.89 in D Dimensions
8731700000 Item Features
- In some applications it makes sense to add a test point or a disconnect element to the feed through terminal for testing and safety purposes
- With test disconnect terminals you measure electric circuits in the absence of voltage
- While the disconnecting points clearance and creepage distance is not assessed in dimensional terms, the specified rated impulse voltage strength must be proven
8731700000 Standards
RoHS Compliant|CE Certified|CSA Certified|DETNORVER|EAC Certified|UR ListedSKU #2190636Part Number #8731700000UNSPSC39121410UPC04032248404889
Image provided may only be a representation of final product and may include optional equipment
