8768660000

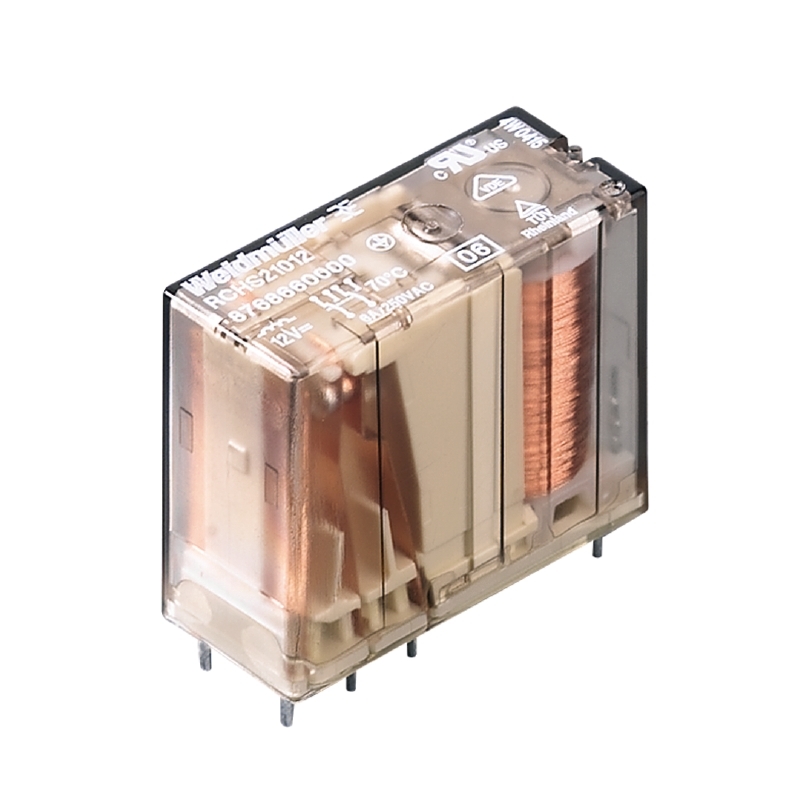

Weidmuller 8768660000 Socket Relay
Part Number # 8768660000
SKU # 2293993
$0.00 / 20Each
Typical price:$284.80 / Each
Weidmuller 8768660000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8768660000 |
| SKU #: | 2293993 |
| Amperage Rating: | 58.3 mA/6 A |
| Coil Voltage: | 12 V DC |
| Contact Form: | 2CO 2 Form C |
| Dimensions: | 29 mm L x 12.6 mm W x 25.5 mm H |
| Enclosure Type: | IP20 |
| Series: | RIDERSERIES RCH |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Terminal Type: | Screw |
| Type: | Miniature |
| Country of origin: | CZ |
| Mounting type: | Through Hole |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04032248437450 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.00 / 20Each
Typical price:$284.80 / Each
Quantity:
- Weidmuller Industrial Relay, Miniature, Series: RIDERSERIES RCH, 58.3 mA, 6 A, 700 mW Power, 12 V DC Coil, 2CO 2 Form C Contact Form, Through Hole Mounting, Screw Terminal, IP20 Enclosure, -25 to 70 deg C, 29 mm L x 12.6 mm W x 25.5 mm H Dimensions
8768660000 Application
Industrial Automation Applications8768660000 Item Features
- Relay with positively driven contacts according to EN 50205
- 1500 VA switching capacity
- 6 kV impulse withstand voltage
- 58.3 mA input rated current, 6 A output continuous current
8768660000 Standards
RoHS Compliant|cULus File No. E223474 Recognized|IEC 61810-1|UL508|VDE Approved|TUV CertifiedSKU #2293993Part Number #8768660000UNSPSC39122325UPC04032248437450
Image provided may only be a representation of final product and may include optional equipment
