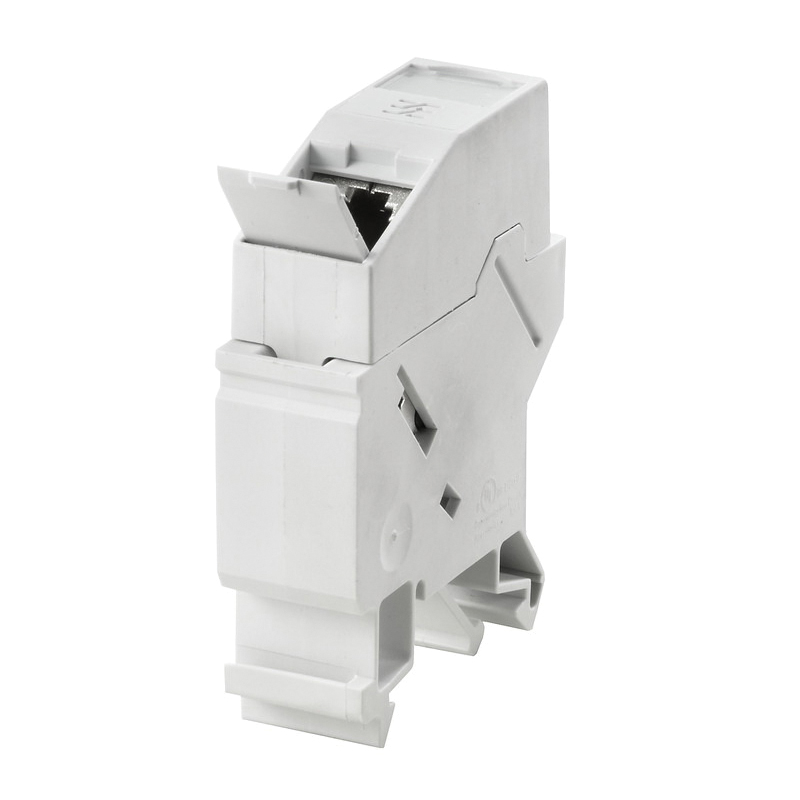

Weidmuller 8808360000 Rj Jack And Module
Image Disclaimers Message
Weidmuller 8808360000 Rj Jack And Module
Weidmuller 8808360000 Rj Jack And Module
Part #:8808360000
SKU #: 2143480
Key Features
Part #:8808360000
SKU #: 2143480
Brand: Weidmuller
Weidmuller 8808360000 Rj Jack And Module
Weidmueller 8808360000 Terminal Rail Outlet, RJ45/IDC Connection, Less Than or Equal to 20 MILOHM Contact Resistance, Withstand Voltage: Contact / Contact: Greater Than or Equal to 1000 VDC, Contact /Shield: Greater Than or Equal to 1500 VDC, Light Grey, Nema Rating: IP20, Temperature Rating: -25 To 70 DEG C, 26 - 12 AWG Wire Cross Section, 26 - 12 AWG Wire Cross-Section, Solid, Material: V-0 UL 94 Flammable Polyamide 66, GOST Approved, IEC 60603-7-5 Certified, ROHS Compliant
Additional Description: WEID-8808360000 IE-XM-RJ45/IDC FEED-THROUGH PLUG-IN CONNECTOR RJ45, IP20, CONNECTION 1: RJ45, CONNECTION 2: IDC, EIA/TIA T568 A, EIA/TIA T568 B, PROFINET, AWG 26...AWG 22
Catalog Description: Weidmueller 8808360000 Terminal Rail Outlet, RJ45/IDC Connection, Less Than or Equal to 20 MILOHM Contact Resistance, Withstand Voltage: Contact / Contact: Greater Than or Equal to 1000 VDC, Contact /Shield: Greater Than or Equal to 1500 VDC, Light Grey, Nema Rating: IP20, Temperature Rating: -25 To 70 DEG C, 26 - 12 AWG Wire Cross Section, 26 - 12 AWG Wire Cross-Section, Solid, Material: V-0 UL 94 Flammable Polyamide 66, GOST Approved, IEC 60603-7-5 Certified, ROHS Compliant
