8924270000
Weidmuller 8924270000 Surge Arrestor
Part Number # 8924270000
SKU # 2389235
$66.51 / Each
Typical price:$73.88 / Each
Weidmuller 8924270000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8924270000 |
| SKU #: | 2389235 |
| Dimensions: | 90 mm H x 17.8 mm W x 69 mm D |
| Specifications: | Screw Connection, Flange Mounted Housing, Analog, 2-Signals, 450 mA, -40 to 70 deg C Operating, IP20 |
| Suitable For Use With: | Data Networks/MCR-Technology Surge Protection Device, Pluggable VSPC Arrester and Unearthed Signal Circuit |
| Country of origin: | SI |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121634 |
| UPC: | 04032248695911 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$66.51 / Each
Typical price:$73.88 / Each
Quantity:
- Weidmuller Basic Element, For Use With: Data Networks/MCR-Technology Surge Protection Device, Pluggable VSPC Arrester and Unearthed Signal Circuit, Specifications: Screw Connection, Flange Mounted Housing, Analog, 2-Signals, 450 mA, -40 to 70 deg C Operating, IP20, Black, 90 mm H x 17.8 mm W x 69 mm D Dimensions
8924270000 Item Features
- Base element for two floating ground powered paired cables
- When the base unit is fitted, a simultaneous sparkover gap to high impedance earth is made between the mounting rail (earth) and the reference potential (ground) of the protective switch in the plug
- Mechanical coding of the base element to the protected plug according to switching type and rated voltage
- The base unit is coded itself by the first insertion of a protected plug
- Possible to mark all terminals
8924270000 Standards
CSA Certified|CSAEX Certified|RoHS Compliant|UL 497b File No. E311081|cUL Listed|CE Certified|IEC 61643-21|IEC 62305|DIN EN 60079-0.2009|DIN EN 60079-11:2007|DIN EN 60079-26:2007|DIN EN 61241-11:2006|GOST Certified|UL 94 V-0 Flammability RatingSKU #2389235Part Number #8924270000UNSPSC39121634UPC04032248695911

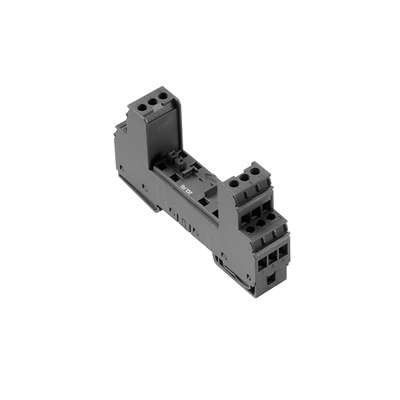

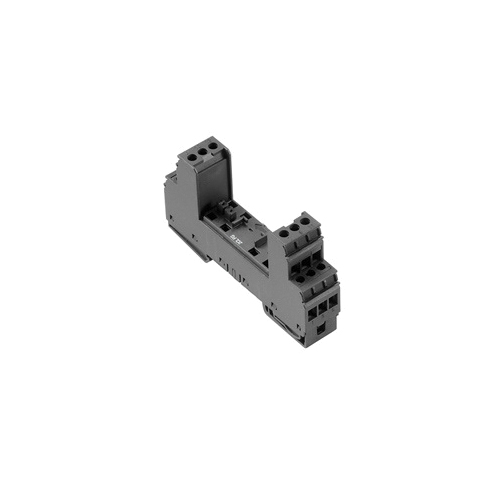

Image provided may only be a representation of final product and may include optional equipment
