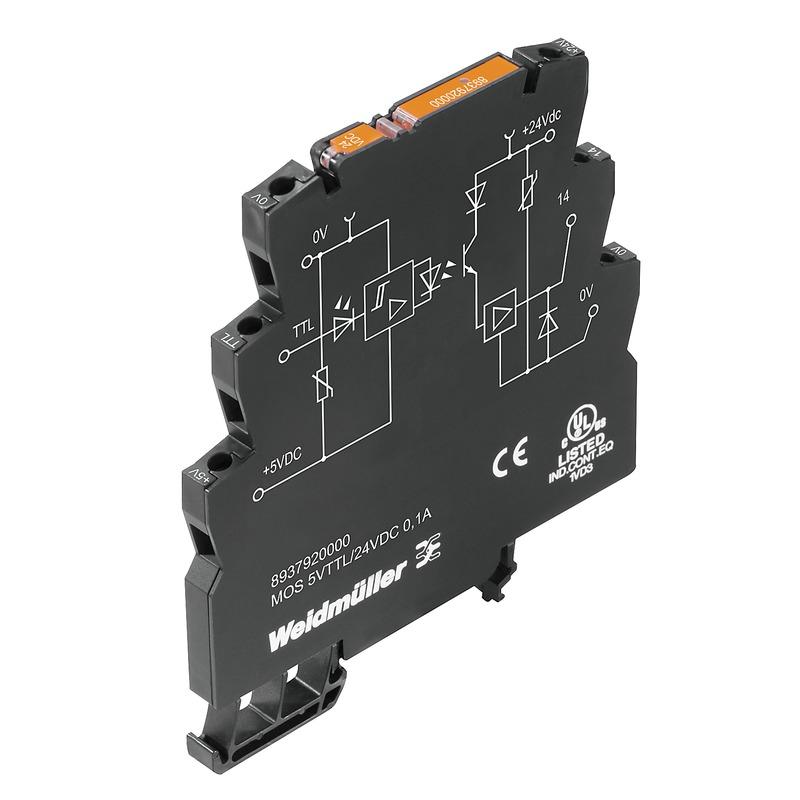

Weidmuller 8937920000 Solid State Relay
Part Number # 8937920000
SKU # 2236831
$22.38 / Each
Typical price:$23.47 / Each
Weidmuller 8937920000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8937920000 |
| SKU #: | 2236831 |
| Amperage Rating: | 100, 100 mA |
| Coil Voltage: | 5, 5 VDC |
| Contact Form: | NO |
| Dimensions: | 3.468 in H x 0.24 in W x 3.85 in D |
| Display Type: | LED |
| Enclosure Type: | IP20 |
| Frequency Rating: | 100, 100 kHz |
| Series: | MICROOPTO |
| Temperature Rating (Degrees F): | -25 to 60, -25 to 60 deg C |
| Terminal Type: | Screw |
| Country of origin: | PL |
| Mounting type: | TS35 Rail |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04032248716159 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$22.38 / Each
Typical price:$23.47 / Each
Quantity:
Weidmuller 8937920000 Solid State Relay
Brand: Weidmuller
Part Number: 8937920000
Weidmuller Solid State Relay, Series: MICROOPTO, 100 mA, <0.5 mW Power, 100 kHz Frequency, 5 VDC Coil, NO Contact Form, TS35 Rail Mounting, Screw Terminal, LED Display, IP20 Enclosure, -25 to 60 deg C, 3.468 in H x 0.24 in W x 3.85 in D Dimensions
Additional Description: WEID-8937920000 MOS 5VTTL/24VDC 0,1A SOLID-STATE RELAY, 5 V TTL, VARISTOR, REVERSE POLARITY PROTECTION 24 VDC ±20%, 100 MA, SCREW CONNECTION
8937920000 Specifications
- 5 to 93% relative humidity, Tu = 40 deg C, no condensation
8937920000 Item Features
- 5 to 93% relative humidity, Tu = 40 deg C, no condensation
- -40 to 60 deg C storage temperature
- 5 V TTL rated control voltage
- <100 uA nominal control current
- 2 V/1 VDC Cut-in/dropout voltage
- Green LED status indicator
- Varistor, reverse polarity protection protective circuit
- 5 VDC +/-5%/ HIGH: max. 9 mA, LOW: max 400 uA nominal auxiliary voltage
- 24 VDC +/-20% rated switching voltage
- 100 mA continuous current
- LC A load category
- <1.3 u switch-on delay
- <1 us switch-off delay
- <1 V voltage drop at maximum load
- <20 uA leakage current
- Free-wheel diode protective circuit, load side
- 24 VDC +/-20%/maximum 110 mA nominal auxiliary voltage
- 1 NO contact (Bipolar transistor)
- 0.6 x 3.5 mm blade
- 0.4 to 0.6 Nm tightening torque
8937920000 Standards
cULus Listed|UL 94 V0|RoHS Compliant|DIN EN 50178, GL 2003-Vl-Abs. 9|IEC 62314, UL508SKU #2236831Part Number #8937920000UNSPSC39122325UPC04032248716159
