8937930000

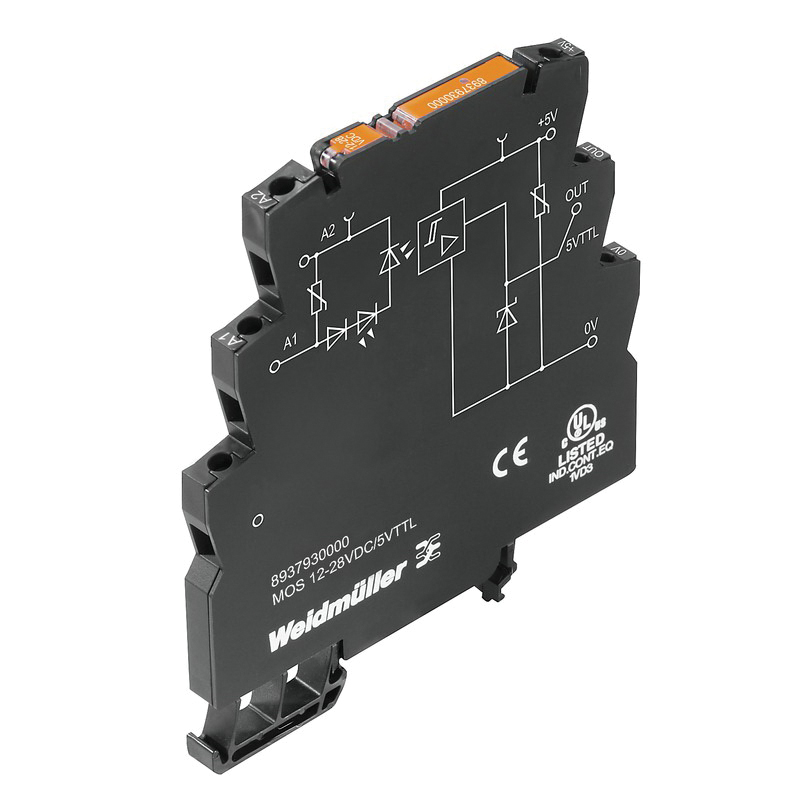

Weidmuller 8937930000 General Purpose Relay
Part Number # 8937930000
SKU # 2243787
$26.83 / Each
Typical price:$28.79 / Each
Weidmuller 8937930000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8937930000 |
| SKU #: | 2243787 |
| Amperage Rating: | 50 mA |
| Dimensions: | 3.468 in H x 0.24 in W x 3.85 in D |
| Frequency Rating: | 100 kHz |
| Series: | MICROOPTO |
| Temperature Rating (Degrees F): | -25 to 60 deg C |
| UNSPSC: | 39122325 |
| UPC: | 04032248716166 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$26.83 / Each
Typical price:$28.79 / Each
Quantity:
- Weidmuller Solid State Relay, Series: MICROOPTO, 50 mA, 150 mW, 100 kHz, DIN Rail Mount, Screw Terminal, -25 to 60 deg C, 3.468 in H x 0.24 in W x 3.85 in D
8937930000 Item Features
- 12 to 28 VDC rated control voltage
- Green LED status indicator
- <1 us switch-on delay, <4 us switch-off delay
- 1NO contact
- TS 35 mounting rail
- IP20 degree of protection
- 7 mm stripping length
- 0.4 to 0.6 Nm tightening torque
- 0.5 to 4 sq-mm clamping
8937930000 Standards
cULus Listed|UL File NO E141197|RoHS CompliantSKU #2243787Part Number #8937930000UNSPSC39122325UPC04032248716166
Image provided may only be a representation of final product and may include optional equipment
