8965340000

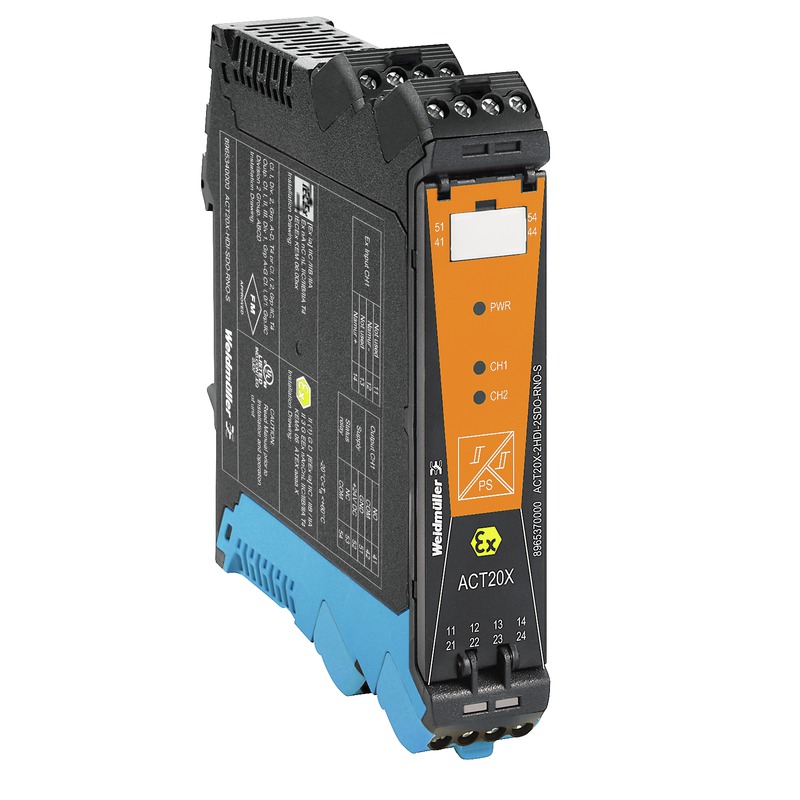

Weidmuller 8965340000 Amplifier
Part Number # 8965340000
SKU # 2346332
$212.89 / Each
Weidmuller 8965340000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8965340000 |
| SKU #: | 2346332 |
| Dimensions: | 117.2 mm H x 22.5 mm W x 113.6 mm D |
| Input Voltage: | 19.2 to 31.2 V DC |
| Number of Channels: | 1 |
| Response Time: | <10 ms |
| Specifications: | Relay/1NO Output, IP20, FDT/DTM Software, 0 to 95 % Humidity |
| Country of origin: | DK |
| Mounting type: | Rail |
| Output current: | 12 mA |
| Output voltage: | 10.6 V DC |
| UNSPSC: | 39121020 |
| UPC: | 04032248784851 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$212.89 / Each
Quantity:
- Weidmuller Isolating Switch Amplifier, 1 Channel, 19.2 to 31.2 V DC Input, 10.6 VDC Output, 12 mA Output Current, =1.3 W Power, Screw Connection, Rail Mounting, -20 to 60 deg C, <10 ms Response, Specifications: Relay/1NO Output, IP20, FDT/DTM Software, 0 to 95 % Humidity, 117.2 mm H x 22.5 mm W x 113.6 mm D Dimensions
8965340000 Item Features
- The ACT20X-HDI-SDO/2HDI-2SNO RNO/RNC isolating switch amplifiers are specially designed for recording Namur sensor signals and digital switching signals which originate from Ex zone 0
- Switching relays, optionally available with NO/NC contacts, transfer output signals to the safe zone
- Integrated alarm contacts issue an alert in the event of a malfunction, this makes troubleshooting easier and increases system availability
- With 11 mm width per channel, the devices need little space in the electrical cabinet
8965340000 Standards
RoHS Compliant|REACH Compliant|IEC 61508|UL File No. E337701|DIN EN 61326|NE 21|cULus File No. E337701|DNV-GL Approved|EAC Certified|FM Approved|Functional Safety Certified|IECEx-KEMA File No. IECEXKEM09.0072X|ATEX-KEMA File No. KEMA09ATEX0168XSKU #2346332Part Number #8965340000UNSPSC39121020UPC04032248784851
Image provided may only be a representation of final product and may include optional equipment
