8965370000
Weidmuller 8965370000 Amplifier
Part Number # 8965370000
SKU # 2322134
$241.13 / Each
Weidmuller 8965370000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8965370000 |
| SKU #: | 2322134 |
| Dimensions: | 4.614 in H x 0.886 in W x 4.472 in D |
| Input Voltage: | 19.2/31.2 V DC |
| Number of Channels: | 2 |
| Specifications: | 0 to 95% Non-Condensing RH, -20 to 85 deg C |
| Country of origin: | DK |
| UNSPSC: | 39121020 |
| UPC: | 04032248784882 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$241.13 / Each
Quantity:
- Weidmuller Signal Isolating Converter, 2 Channels, 19.2/31.2 V DC Input, =1.9 W Power, Thread Connection, DIN Rail Mounting, -20 to 60 deg C, Specifications: 0 to 95% Non-Condensing RH, -20 to 85 deg C, 4.614 in H x 0.886 in W x 4.472 in D Dimensions
8965370000 Item Features
- NAMUR sensor/switch
- Safe-output - relay
- NO contact configuration
- <20 Hz input frequency
- 1 kOhm input resistance
- Output signal in case of wire break - <0.1 mA, >6.5 mA (in case of wire break)
- Input sensor supply - 8 VDC/8 mA
- Trigger level low - <1.2 mA
- Pulse duration - >0.1 ms
- Trigger level high - >2.1 mA
- Input type - intrinsically safe circuit
- Switching frequency - 0.02 kHz
- Rated switching voltage -
- Power rating -
- Continuous current -
- Alarm function - line interruption at the input, short-circuit at input, no supply voltage, device error
- Nominal switching voltage -
- Power rating -
- Alarm output type - relay, 1 NC (voltage-free)
- Continuous current -
8965370000 Standards
cULus Listed|UL E-337701|ATEX|IEC Ex Certified|RoHS Compliant|FM ApprovedSKU #2322134Part Number #8965370000UNSPSC39121020UPC04032248784882

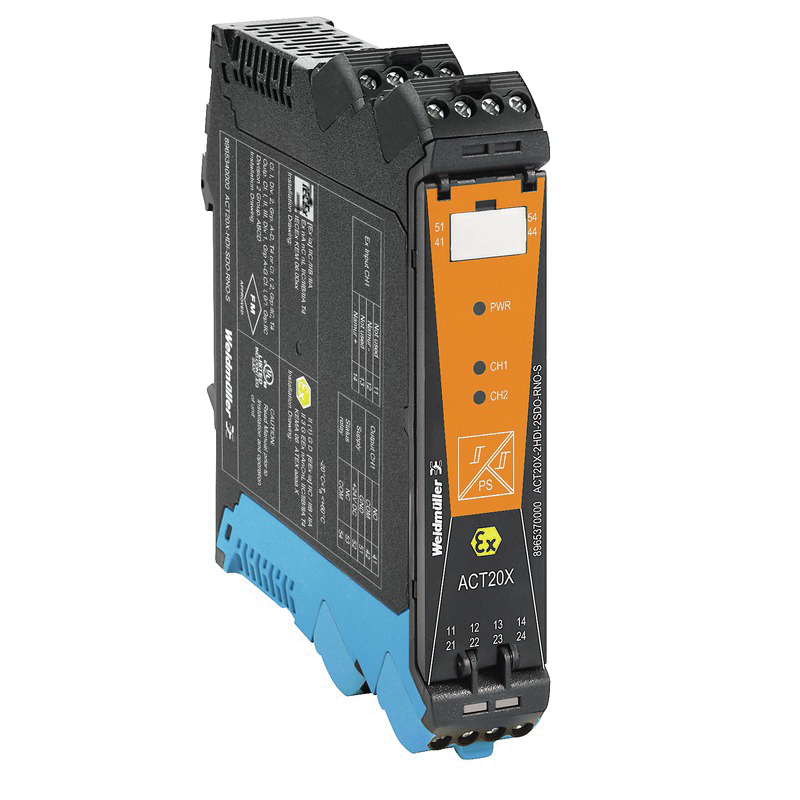

Image provided may only be a representation of final product and may include optional equipment
