9005180000

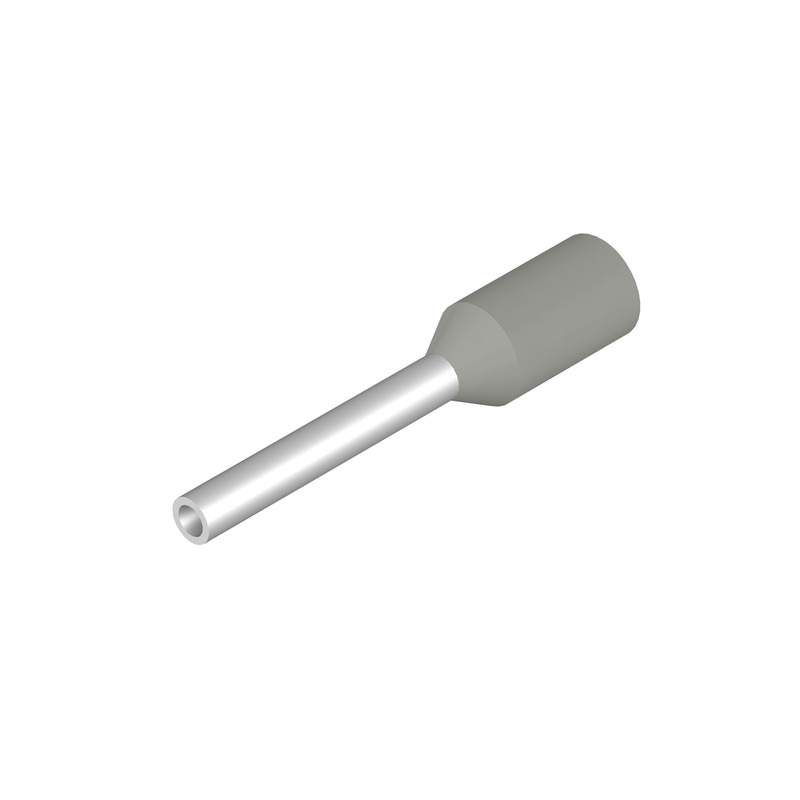

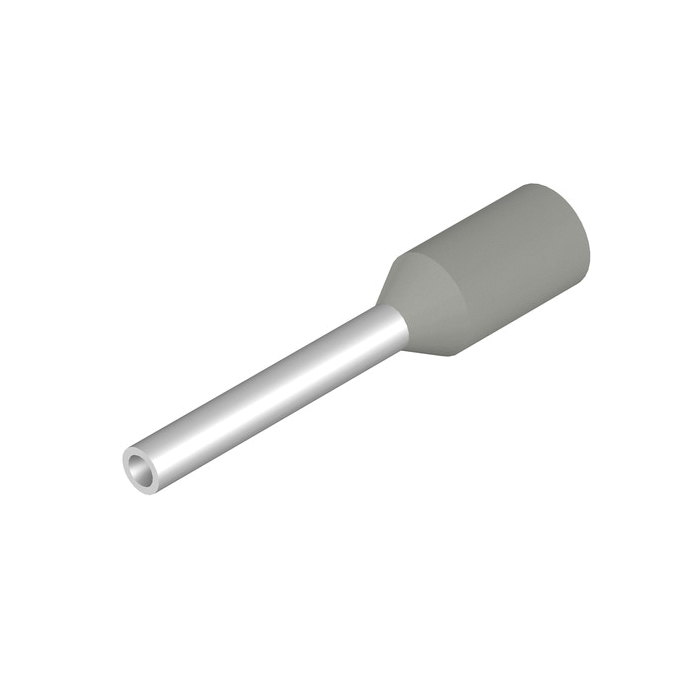

Weidmuller 9005180000 Wire End Ferrule
Part Number # 9005180000
SKU # 2269424
$25.00 / 500Each
Typical price:$29.00 / Each
Weidmuller 9005180000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9005180000 |
| SKU #: | 2269424 |
| Barrel Size: | 1.5 mm Dia |
| Conductor Size: | 26 AWG |
| Conductor Type: | E-Cu |
| Dimensions: | 10 mm W |
| Finish: | Electro Galvanized |
| Specifications: | 10 mm L Stripping |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Insulated |
| Color: | Gray |
| Country of origin: | DE |
| Length: | 10 mm |
| Material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190859909 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$25.00 / 500Each
Typical price:$29.00 / Each
Quantity:
Weidmuller 9005180000 Wire End Ferrule
Brand: Weidmuller
Part Number: 9005180000
Additional Description: WEID-9005180000 H0,14/10 GR SV WIRE END FERRULE, STANDARD, 0.14 MM, STRIPPING LENGTH: 8 MM, GREY H 0,14/10 26 AWG GREY PK=500
Catalog Description: Electrogalvanised copper sleeve for the protection of stripped flexible conductors. Crimping the wire-end ferrule protects the wires and enables permanently stable electrical connections.
9005180000 Item Features
- Wire end ferrules ensure the long term quality of electrical connections
- Another advantage is their usefulness during installation
- The wide range of products embraces wire end ferrules with or without plastic collars and twin wire end ferrules in all the colors normally required by users
9005180000 Standards
RoHS Compliant|cCSAus CertifiedSKU #2269424Part Number #9005180000UNSPSC31163102UPC04008190859909
