9005610000
Weidmuller 9005610000 Terminal Block
Part Number # 9005610000
SKU # 2150438
$209.35 / Each
Weidmuller 9005610000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9005610000 |
| SKU #: | 2150438 |
| Cable Size: | 6 to 16 sq-mm |
| Overall Length: | 190 mm |
| Cable type: | Flexible/Solid Conductor with PVC Insulation |
| UNSPSC: | 27111510 |
| UPC: | 04008190183875 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$209.35 / Each
Quantity:
Weidmuller 9005610000 Terminal Block
Brand: Weidmuller
Part Number: 9005610000

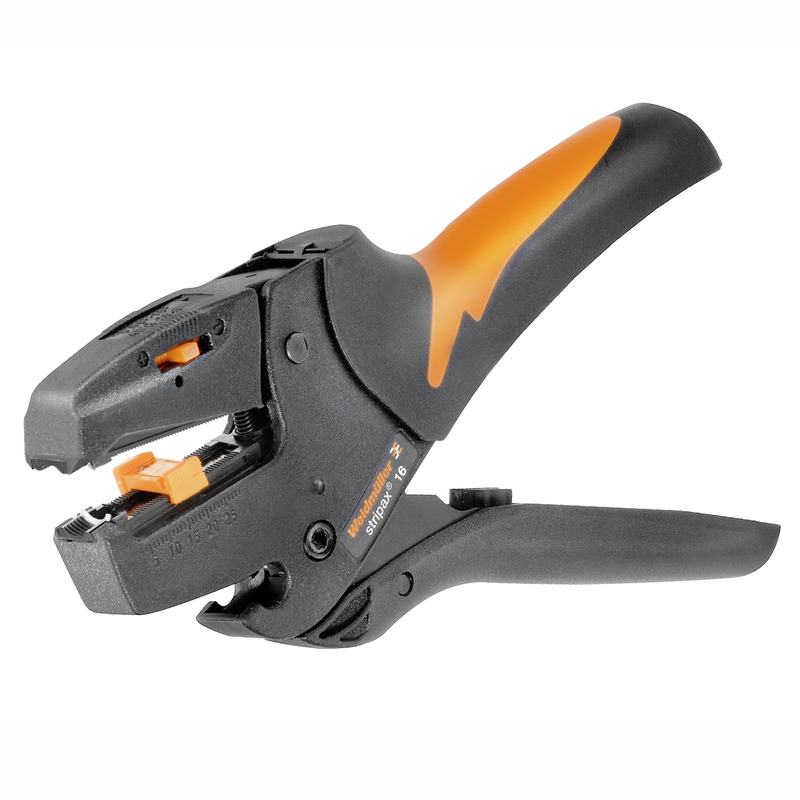

Additional Description: WEID-9005610000 STRIPAX 16 STRIPPING TOOL, FLEXIBLE AND SOLID CONDUCTORS WITH PVC INSULATION, 16 MM, 25 MM
Catalog Description: Stripping tool with automatic self-adjustment for precise and fast stripping of conductors.
9005610000 Item Features
- Stripping tools with automatic self-adjustment
- For flexible and solid conductors
- Ideally suitable for mechanical and plant engineering, railway and rail traffic, wind energy, robot technology, explosion protection as well as marine, offshore and ship building sectors
- Stripping length adjustable via end stop
- Automatic opening of clamping jaws after stripping
- No fanning out of individual conductors
- Adjustable to diverse insulation thicknesses
- Double insulated cables in two process steps without special adjustment
- No play in self-adjusting cutting unit
- Long service life
- Optimized ergonomic design
- Selectable 2-stage partial stripping
- Personalized marking with ESG device marker
- Stripping PVC insulated flexible and solid conductors from 6 to 16 sq-mm (10 to 6 AWG)
- Cutting PVC insulated flexible and solid conductors up to 6 sq-mm (10 AWG)
- No damage to the conductor thanks to specially shaped blade
9005610000 Standards
EAC Certified|REACH SVHC Lead 7439-92-1SKU #2150438Part Number #9005610000UNSPSC27111510UPC04008190183875
Image provided may only be a representation of final product and may include optional equipment
