Part Number # 9019060000
SKU # 2297674
Image Disclaimers Message
9019060000

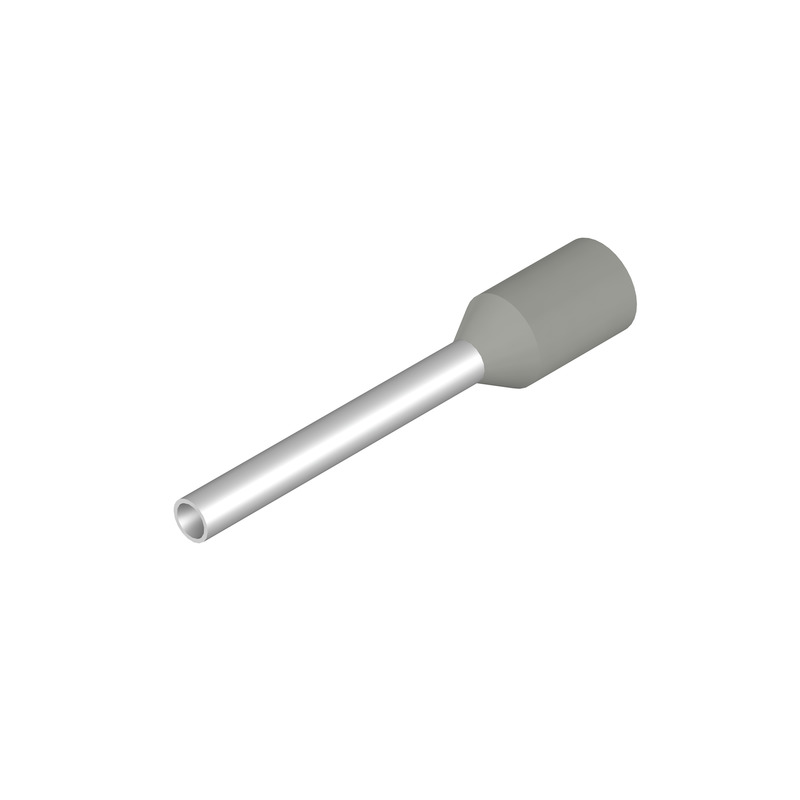

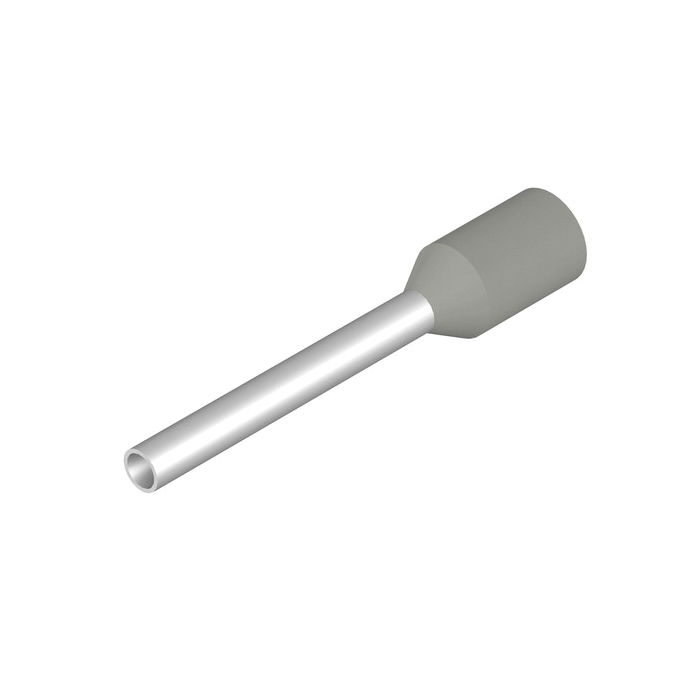

Weidmuller 9019060000 Wire End Ferrule
Part Number # 9019060000
SKU # 2297674
$30.00 / 500Each
Typical price:$32.00 / Each
Weidmuller 9019060000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9019060000 |
| SKU #: | 2297674 |
| Barrel Size: | 2.8 mm Dia x 0.25 mm THK |
| Barrel Type: | Funnel Entry |
| Conductor Size: | 18 AWG |
| Finish: | Electro-Galvanized |
| Specifications: | 14 mm L Stripping, 1.2 mm Dia x 12 mm L Contact Surface, 0.15 mm THK Sleeve |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Insulated |
| Color: | Gray |
| Country of origin: | DE |
| Length: | 18 mm |
| Material: | Copper |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190049560 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$30.00 / 500Each
Typical price:$32.00 / Each
Quantity:
Weidmuller 9019060000 Wire End Ferrule
Brand: Weidmuller
Part Number: 9019060000
Additional Description: WEID-9019060000 H0,75/18D GR WIRE END FERRULE, STANDARD, 0.75 MM, STRIPPING LENGTH: 14 MM, GREY H 0,75/18D GRAY PK=500
Catalog Description: Electrogalvanised copper sleeve for the protection of stripped flexible conductors. Crimping the wire-end ferrule protects the wires and enables permanently stable electrical connections.
9019060000 Item Features
- Polypropylene conical entry funnel
- Heat-resistant up to 105 deg C
9019060000 Standards
RoHS Compliant|DIN 46228 Part 4|UL File No. E499744|cCSAus Certified|cULus Listed|CSA Certified|UL Recognized|VDE ApprovedSKU #2297674Part Number #9019060000UNSPSC31163102UPC04008190049560
