9019100000

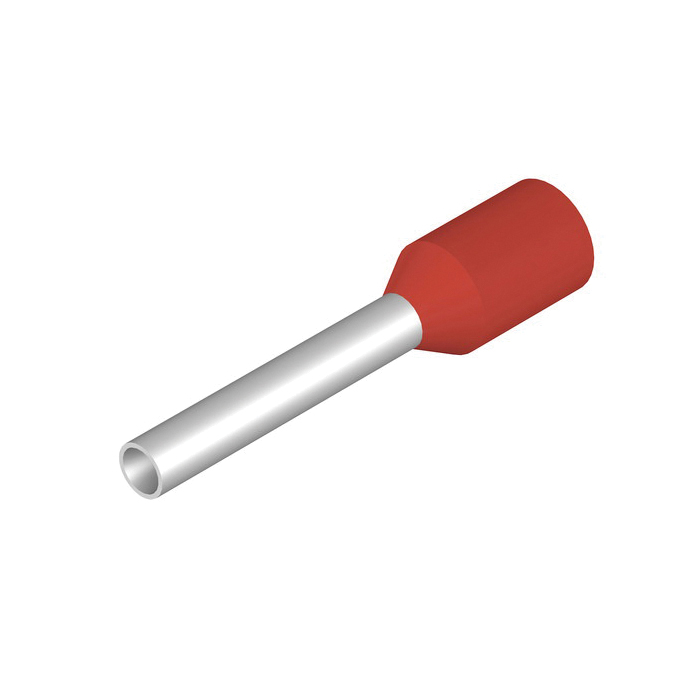

Weidmuller 9019100000 Ferrule
Part Number # 9019100000
SKU # 2429670
$31.90 / 500Each
Typical price:$35.50 / Each
Weidmuller 9019100000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9019100000 |
| SKU #: | 2429670 |
| Conductor Size: | 17 AWG |
| Overall Length: | 16 mm |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Type H1.0/16D |
| Connection type: | Crimped |
| Contact material: | Electro-Galvanized Cathode Copper |
| Country of origin: | DE |
| Insulation material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190159986 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$31.90 / 500Each
Typical price:$35.50 / Each
Quantity:
- Weidmuller Wire End Ferrule, Type H1.0/16D, 17 AWG Conductor, Polypropylene Insulation, Crimped, Electro-Galvanized Cathode Copper Contact, 105 deg C, 16 mm Overall Length, Red
9019100000 Item Features
- Polypropylene conical entry funnel
- Heat-resistant up to 105 deg C
- The entry funnel can also be manufactured from a non-flammable material on request
- Dimensional tolerances to DIN 46228 Part 4
- 0.15 mm metal sleeve thickness
- 0.25 mm plastic collar thickness
- 1 sq-mm conductor cross-section
- 1.4 mm contact surface diameter
- 3 mm collar diameter
- 12 mm stripping length
- T 20A 010 A military designation
9019100000 Standards
CSA Certified|cULus Listed|RU Compliant|UL E354986|RoHS CompliantSKU #2429670Part Number #9019100000UNSPSC31163102UPC04008190159986
Image provided may only be a representation of final product and may include optional equipment
