Part Number # 9019260000
SKU # 1737593
Image Disclaimers Message
Brand: Weidmuller
9019260000

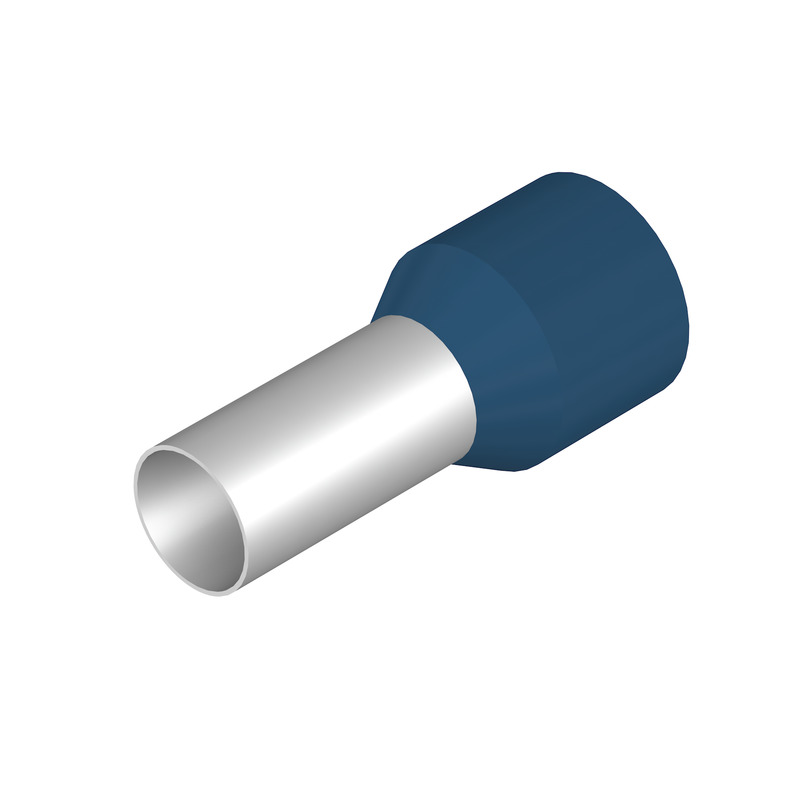

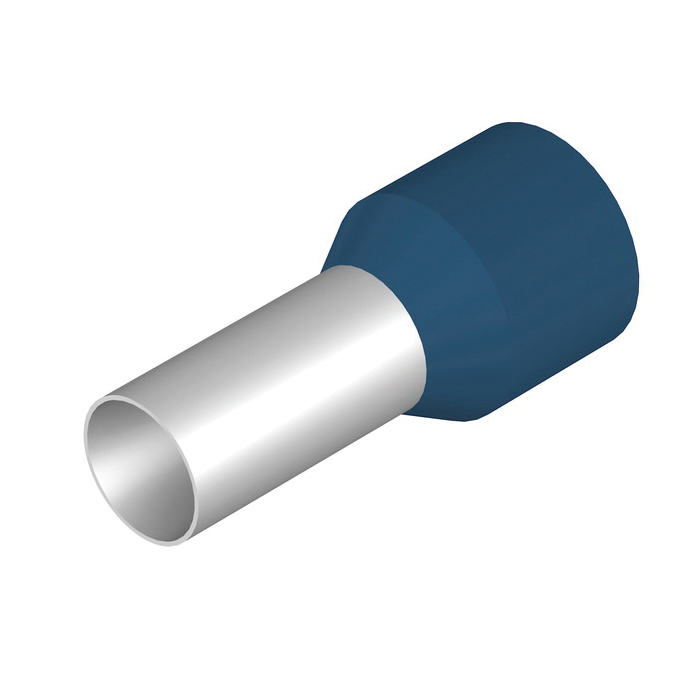

Weidmuller 9019260000 Wire Ferrule
Part Number # 9019260000
SKU # 1737593
$15.00 / 100Each
Typical price:$16.40 / Each
Weidmuller 9019260000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9019260000 |
| SKU #: | 1737593 |
| Conductor Size: | 6 AWG |
| Conductor Type: | Tin Plated Copper |
| Specifications: | 15 mm Stripping Length |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Insulated |
| Color: | Blue |
| Country of origin: | USA |
| Length: | 0.866 in |
| Material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190125806 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15.00 / 100Each
Typical price:$16.40 / Each
Quantity:
Weidmuller 9019260000 Wire Ferrule
Brand: Weidmuller
Part Number: 9019260000
Additional Description: WEID-9019260000 H16,0/22D BL WIRE END FERRULE, STANDARD, 16 MM, STRIPPING LENGTH: 15 MM, BLUE H16,0/22D BLUE PK=100
Catalog Description: Electrogalvanised copper sleeve for the protection of stripped flexible conductors. Crimping the wire-end ferrule protects the wires and enables permanently stable electrical connections.
9019260000 Item Features
- 8.8 mm Dia collar
- 5.8 mm Dia contact surface
- 0.2 mm THK metal sleeve
- 0.4 mm THK plastic collar
- 12 mm L contact surface
- Polypropylene conical cable entry
- H16.0/22D BL type
9019260000 Standards
UL File No. E354986, UR Listed|VDE|cCSAus Certified|CSA Certified|cULus Listed|RoHS CompliantSKU #1737593Part Number #9019260000UNSPSC31163102UPC04008190125806
