Part Number # 9021230000
SKU # 2153821
Image Disclaimers Message
9021230000

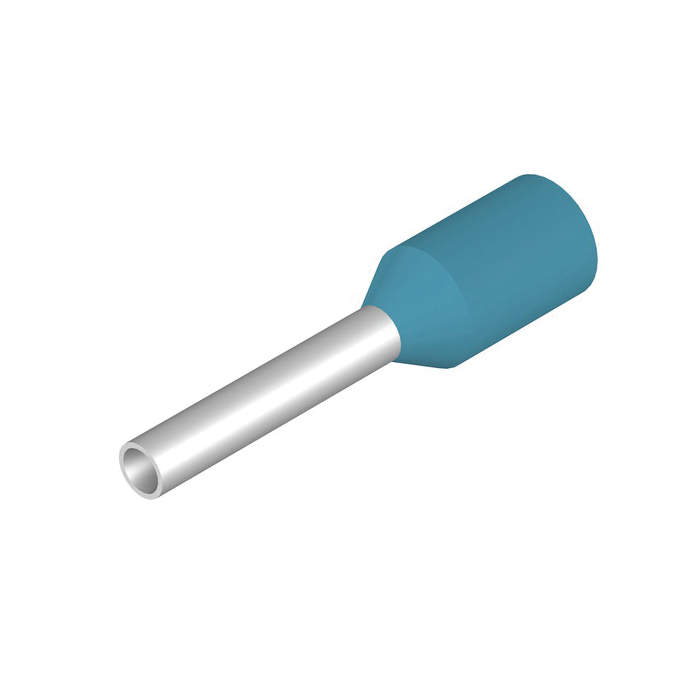

Weidmuller 9021230000 Wire Connector
Part Number # 9021230000
SKU # 2153821
Weidmuller 9021230000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9021230000 |
| SKU #: | 2153821 |
| Barrel Size: | 2.8 mm Dia x 0.25 mm THK |
| Barrel Type: | Funnel Entry |
| Conductor Size: | 18 AWG |
| Finish: | Electro-Galvanized |
| Specifications: | 10 mm L Stripping, 1.2 mm Dia x 8 mm L Contact Surface, 0.15 mm THK Sleeve |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Insulated |
| Color: | Light blue |
| Country of origin: | DE |
| Length: | 14 mm |
| Material: | Copper |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190153106 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 9021230000 Wire Connector
Brand: Weidmuller
Part Number: 9021230000
Weidmueller 9021230000 Wire End Ferrule, With Collar, 14 MM Length X 8 MM Contact Surface Length X 1.2 MM Contact Surface Diameter X 2.8 MM Collar Width X 0.15 MM Sleeve Thickness X 1/4 MM Collar Thickness, Wire Size: 0.75 SQ-MM, 18AWG, Material: Metal Sleeve, Plastic Collar, Light Blue Collar, C/US CSA Certified, PCT ME25, RoHS Compliant
Additional Description: WEID-9021230000 H0,75/14T HBL SV PK=500 1PK=500PCS
Catalog Description: Weidmueller 9021230000 Wire End Ferrule, With Collar, 14 MM Length X 8 MM Contact Surface Length X 1.2 MM Contact Surface Diameter X 2.8 MM Collar Width X 0.15 MM Sleeve Thickness X 1/4 MM Collar Thickness, Wire Size: 0.75 SQ-MM, 18AWG, Material: Metal Sleeve, Plastic Collar, Light Blue Collar, C/US CSA Certified, PCT ME25, RoHS Compliant
9021230000 Item Features
- Polypropylene conical entry funnel
- Heat-resistant up to 105 deg C
9021230000 Standards
RoHS Compliant|DIN 46228 Part 4|cCSAus CertifiedSKU #2153821Part Number #9021230000UNSPSC31163102UPC04008190153106
