Brand: Weidmuller

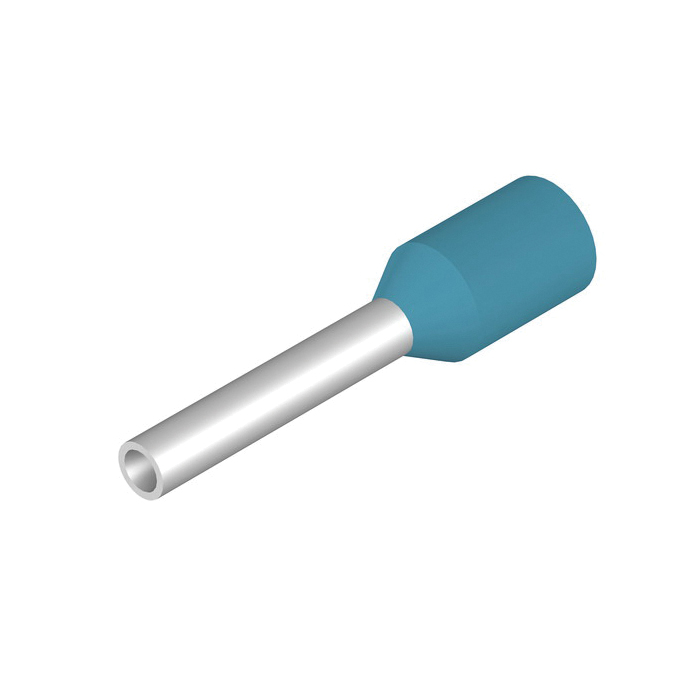

Weidmuller 9025740000 Wire End Ferrule
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 9025740000 Wire End Ferrule
Brand: Weidmuller
Weidmuller 9025740000 Wire End Ferrule
Part #:9025740000
SKU #: 42603
$25.00/500EA
Key Features
Part #:9025740000
SKU #: 42603
Brand: Weidmuller
Conductor Size: 24 AWG
Overall Length: 10 mm
Temperature Rating (Degrees F): 105 deg C
Type: Type H0.25/10
Color: Light blue
$25.00/500EA
- Polypropylene conical entry funnel
- Heat-resistant up to 105 deg C
- The entry funnel can also be manufactured from a non-flammable material on request
- Dimensional tolerances to DIN 46228 Part 4
- 0.15 mm metal sleeve thickness
- 0.25 mm plastic collar thickness
- 0.25 sq-mm conductor cross-section
- 0.8 mm contact surface diameter
- 1.8 mm collar diameter
- 8 mm stripping length
Specifications
Brand: Weidmuller
Conductor Size: 24 AWG
Overall Length: 10 mm
Temperature Rating (Degrees F): 105 deg C
Type: Type H0.25/10
Color: Light blue
Connection type: Crimped
Contact material: Electro-Galvanized Cathode Copper
Insulation material: Polypropylene
UNSPSC: 31163102
UPC: 04008190092054
Weidmuller 9025740000 Wire End Ferrule
Additional Description: WEID-9025740000 H0,25/10 HBL WIRE END FERRULE, STANDARD, 0.25 MM, STRIPPING LENGTH: 8 MM, LIGHT BLUE 1 = 1 pkg of 500
