9456940000
Weidmuller 9456940000 Electrical Receptacle
Part Number # 9456940000
SKU # 2147584
Weidmuller 9456940000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9456940000 |
| SKU #: | 2147584 |
| Specifications: | 4 A |
| Temperature Rating (Degrees F): | -45 to 85 deg C |
| Contact material: | Copper/Bronze/Zinc |
| Insulation resistance: | 10 Power 8 Ohm |
| UNSPSC: | 32151902 |
| UPC: | 04008190304935 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Weidmuller 9456940000 Electrical Receptacle
Brand: Weidmuller
Part Number: 9456940000
Weidmuller Plug-In Connector, 5 Contacts, M12 Shell, 125 VAC, Surface Mount, 10 Power 8 Ohm Insulation, Copper/Bronze/Zinc Contact, Polyamide Housing, Screw Terminal, -45 to 85 deg C, 4 A
Additional Description: WEID-9456940000 SAIS-5/7 ROUND PLUG (FIELD CUSTOMISABLE), PIN, STRAIGHT, SCREW CONNECTION, M12, 0.14 MM, 0.75 MM, 4 - 6 MM, NUMBER OF POLES: 5, SHIELD CONNECTION: NO
9456940000 Item Features
- PG 7 cable gland
- Greater or equal to 50 plugging cycle
- 3 pollution severity
- IP67 protection degree
- Die cast zinc threaded ring material
- 4 to 6 mm Dia cable
- CuSnZn contact material
- 10^8 Ohm insulation-resistance
- 5-poles
- >=50 plugging cycles
- SAIS-5/7 type
- 0.14 to 0.75 sq-mm cross-section connection
9456940000 Standards
cURus|UL File No. E307231 Listed|RoHS CompliantSKU #2147584Part Number #9456940000UNSPSC32151902UPC04008190304935

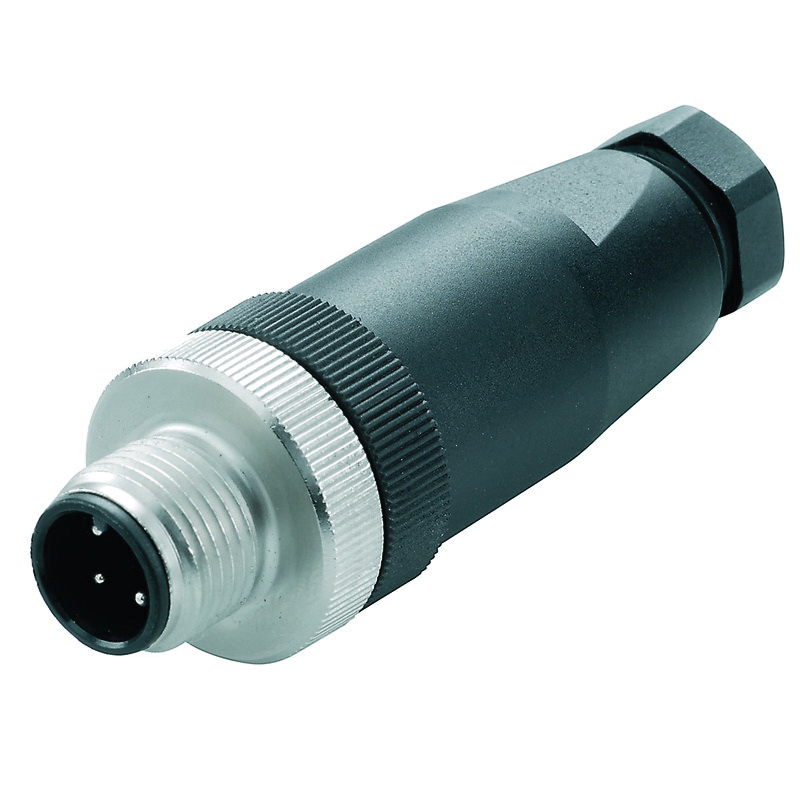

Image provided may only be a representation of final product and may include optional equipment
