9501160000
Weidmuller 9501160000 Electrical Terminal
Part Number # 9501160000
SKU # 2284896
Weidmuller 9501160000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9501160000 |
| SKU #: | 2284896 |
| Dimensions: | 1.969 in H x 0.315 in W x 2.362 in D |
| UNSPSC: | 39121410 |
| UPC: | 04008190549534 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 9501160000 Electrical Terminal
Brand: Weidmuller
Part Number: 9501160000
Klippon® Feed-Through Terminal Block, 1-Tier, Series: SAK, 690 VAC, 32 A, 12 mm Wire Strip Length, 4 sq-mm Terminal, 0.5 to 1 N-m, Snap-On Mount, Clamping Yoke Screw, -50 to 100 deg C, Polyamide 6.6, Beige/Yellow, 1.969 in H x 0.315 in W x 2.362 in D
Additional Description: WEID-9501160000 RSF 3/35 FEED-THROUGH TERMINAL BLOCK, SCREW CONNECTION, 4 MM, 690 V, 32 A, NUMBER OF CONNECTIONS: 2
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
9501160000 Item Features
- Countless approvals, specifications and the worlds most extensive range of terminal mean that SAK terminal can be used for a wide range of different applications
- Ambient temperatures are not an issue for the SAK series thanks to different materials such as polyamide, thermoplastics and heat-resistant ceramics
- The legendary high-strength steel screw clamp absorbs every geometric change to the connected conductor
- TS 32/TS 35 "2 in 1" combination foot
- UL 94 flammability rating V-2
- 1 number of potentials, 1 number of levels, 2 number of clamping points per level
- Right open sides
- 0.6 x 3.5 mm blade
- 1 mOhm volume-resistance
- With spring-loaded cable clamp, one end without connector
- 6 kV rated impulse withstand voltage
- RSF 3/35 type
- 0.5 to 4 sq-mm wire connection cross section, finely stranded with wire-end ferrules
- https://www.youtube.com/watch?v=DBdk5eXPQb8
9501160000 Standards
UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #2284896Part Number #9501160000UNSPSC39121410UPC04008190549534

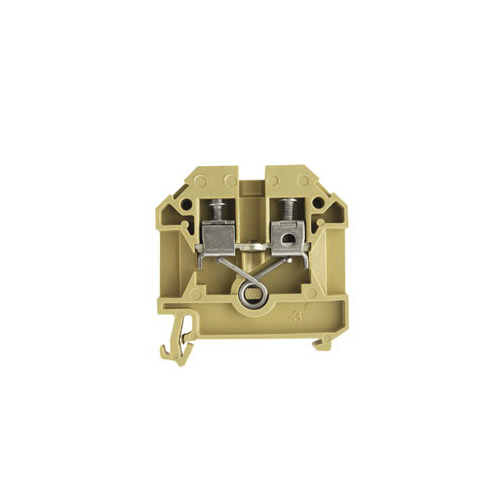

Image provided may only be a representation of final product and may include optional equipment
