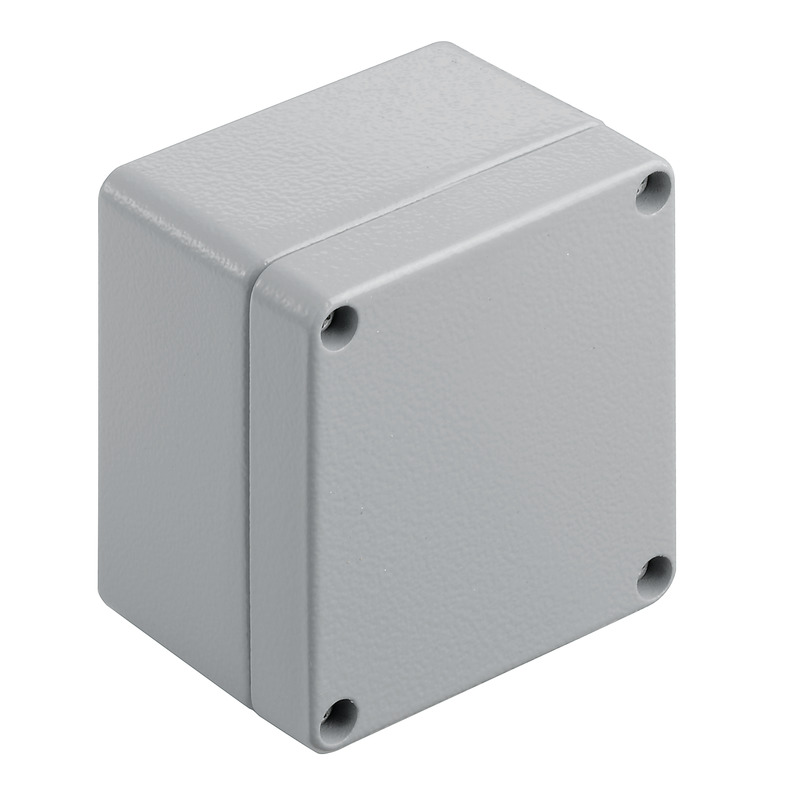

Weidmuller 9529130000 Electrical Terminal Enclosure
Part Number # 9529130000
SKU # 2404348
9529130000
Weidmuller 9529130000 Electrical Terminal Enclosure
Part Number # 9529130000
SKU # 2404348
$411.60 / 10Each
Weidmuller 9529130000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9529130000 |
| SKU #: | 2404348 |
| Cable Entry Size: | (2) M12, (2) M16, (1) M20 Left, (2) M12, (2) M16, (1) M20 Right, (2) M12, (2) M16, (1) M20, (1) M25 Top/Bottom |
| Finish: | Textured Powder Coated |
| NEMA Rating: | NEMA 4/4X |
| Panel Size: | 2.5 mm THK |
| Series: | K11 |
| Temperature Rating (Degrees F): | -40 to 80 deg C |
| Type: | Standard |
| Country of origin: | CN |
| Depth: | 57 mm |
| Height: | 80 mm |
| Material: | Aluminum |
| Mounting type: | DIN Rail/Surface |
| Width: | 75 mm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121327 |
| UPC: | 04008190918033 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$411.60 / 10Each
Quantity:
- Klippon Empty Enclosure, Standard, Series: K11, 75 mm Width, 57 mm Depth, 80 mm Height, NEMA 4/4X NEMA Rating, 2.5 mm THK Panel, Lock: Screw, (2) M12, (2) M16, (1) M20 Left, (2) M12, (2) M16, (1) M20 Right, (2) M12, (2) M16, (1) M20, (1) M25 Top/Bottom Cable Entry, DIN Rail/Surface Mounting, -40 to 80 deg C, Aluminum, Textured Powder Coated, Silver Gray
9529130000 Application
Process Industry, Transportation, Marine Engineering, Packaging Industry, Harbor Facilities, Machine Construction, Assembly of Modular Terminal Blocks, Switches, Power Supplies, Operational and Display Elements/Electronic Module Applications9529130000 Item Features
- Uniform Torx slotted screw head for over 19 enclosure sizes
- Mounting holes outside of the gasket area
- High IP protection classes - IP66, IP67 and IP68
- Impact resistance of up to 7 (10) J
- Alloy is resistant to salt water
- Standardized distributor enclosures with threaded holes and a variety of terminal configurations
9529130000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|CE Certified|cULus File No. E197061|DNV-GL Approved|EAC RUC-DE.08.B.00472|IECEx Approved|Russian Maritime Register 14.40040.250|Germanische Lloyd 4453607 HHSKU #2404348Part Number #9529130000UNSPSC39121327UPC04008190918033
Image provided may only be a representation of final product and may include optional equipment
