9529260000
Weidmuller 9529260000 Terminal Block
Part Number # 9529260000
SKU # 2227297
$239.31 / Each
Weidmuller 9529260000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9529260000 |
| SKU #: | 2227297 |
| Cable Entry Size: | (8) M12, (6) M16, (3) M20, (2) M25, (2) M32, (1) M40 Left, (8) M12, (6) M16, (3) M20, (2) M25, (2) M32, (1) M40 Right, (42) M12, (26) M16, (17) M20, (10) M25, (6) M32, (5) M40 Top/Bottom |
| Finish: | Textured Powder Coated |
| Panel Size: | 3 mm THK |
| Series: | K7 Series |
| Width: | 350 mm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121327 |
| UPC: | 04008190918156 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$239.31 / Each
Quantity:
Weidmuller 9529260000 Terminal Block
Brand: Weidmuller
Part Number: 9529260000

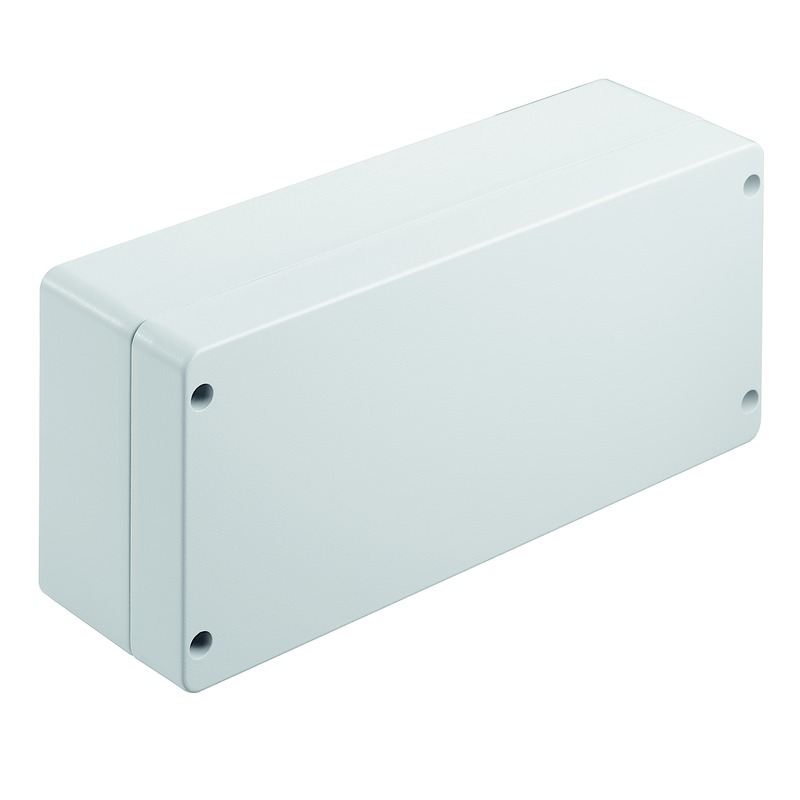

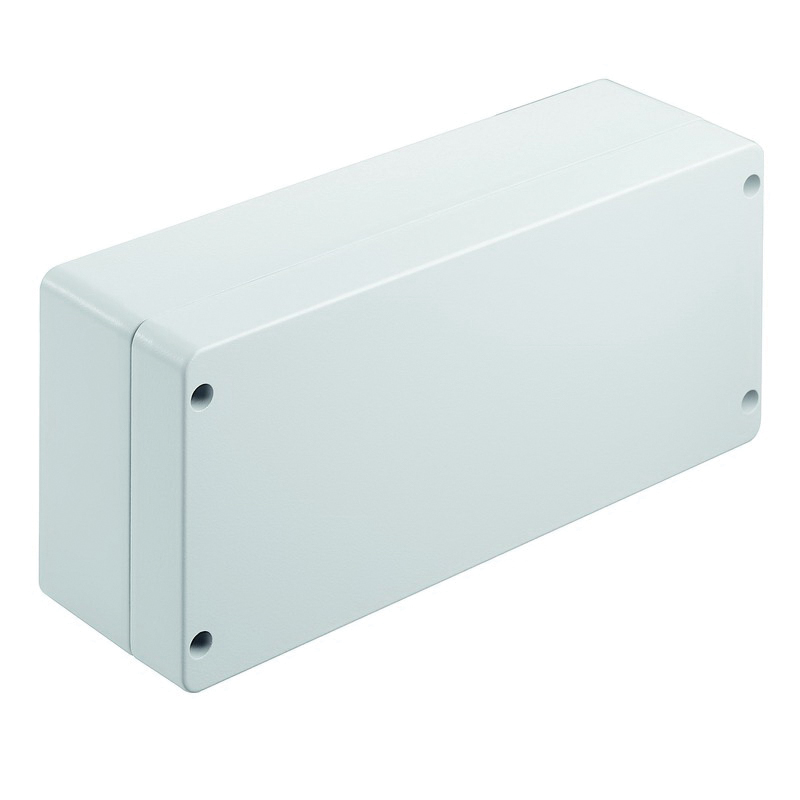

Additional Description: WEID-9529260000 KLIPPON K7 RAL7001 METAL HOUSING, KLIPPON K (ALUMINIUM EMPTY ENCLOSURE), ALUMINIUM ENCLOSURE, 350 X 160 X 100 MM
Catalog Description: Metal housing for use in industrial applications. The fixing holes are located outside the sealed area. Wall mounting can be achieved using mounting holes or mounting feet.
9529260000 Application
Process Industry, Transportation, Marine Engineering, Packaging Industry, Harbor Facilities, Machine Construction, Assembly of Modular Terminal Blocks, Switches, Power Supplies, Operational and Display Elements/Electronic Module Applications9529260000 Item Features
- Uniform Torx slotted screw head for over 19 enclosure sizes
- Mounting holes outside of the gasket area
- High IP protection classes - IP66, IP67 and IP68
- Impact resistance of up to 7 (10) J
- Alloy is resistant to salt water
- Standardized distributor enclosures with threaded holes and a variety of terminal configurations
9529260000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|CE Certified|cULus File No. E197061|DNV-GL Approved|EAC RUC-DE.08.B.00472|IECEx Approved|Russian Maritime Register 14.40040.250|Germanische Lloyd 4453607 HHSKU #2227297Part Number #9529260000UNSPSC39121327UPC04008190918156
Image provided may only be a representation of final product and may include optional equipment
