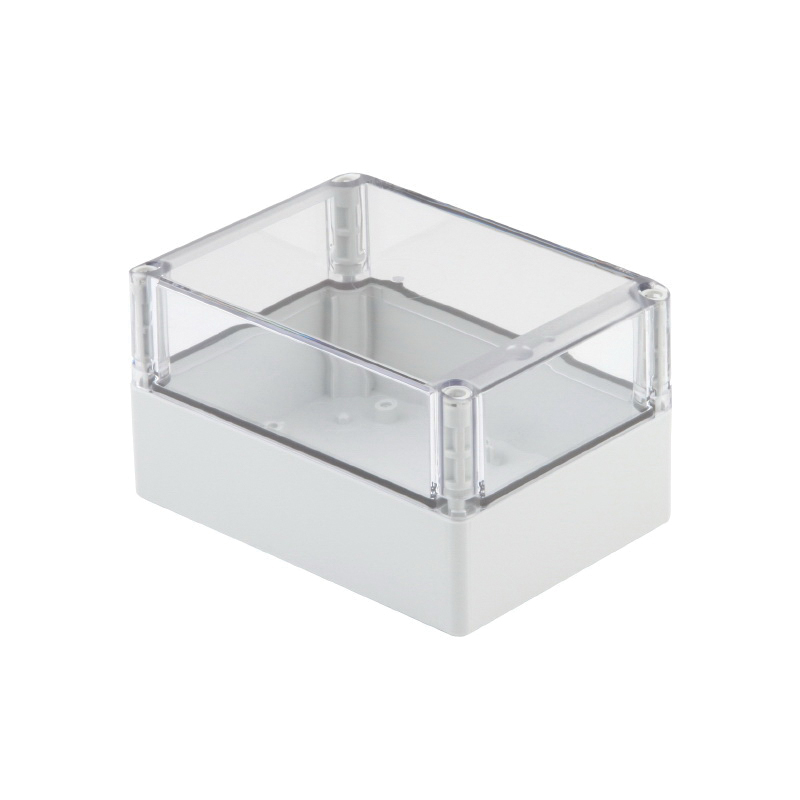

Weidmuller 9535340000 Electrical Terminal Enclosure
Part Number # 9535340000
SKU # 2417726
9535340000
Weidmuller 9535340000 Electrical Terminal Enclosure
Part Number # 9535340000
SKU # 2417726
$55.01 / Each
Weidmuller 9535340000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9535340000 |
| SKU #: | 2417726 |
| Cable Entry Size: | (6) M12, (4) M16, (4) M20 Right, (4) M12, (3) M16, (3) M20 Top/Bottom |
| Series: | MPC |
| Temperature Rating (Degrees F): | -50 to 130 deg C |
| Type: | Small |
| Country of origin: | EE |
| Depth: | 125 mm |
| Height: | 125 mm |
| Material: | Polycarbonate |
| Mounting type: | Threaded |
| Width: | 175 mm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121327 |
| UPC: | 04032248009237 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$55.01 / Each
Quantity:
- Klippon Empty Enclosure, Small, Series: MPC, 175 mm Width, 125 mm D, 125 mm Height, Lock: Self-Tapping Screw, (6) M12, (4) M16, (4) M20 Right, (4) M12, (3) M16, (3) M20 Top/Bottom Cable Entry Size, Threaded Mount, -50 to 130 deg C, Polycarbonate
9535340000 Application
Building Systems and Technology, Transportation, Packaging Industry, Machine Construction, Enclosing Electrical, Electro-Mechanical, Pneumatic Devices and PCB Applications9535340000 Item Features
- 9 sizes in 2 versions
- Cover with lead-seal holes
- Mounting holes outside the seal area - receptacle threads for rail mounting, mounting plates and circuit board
- The enclosures are used in situations with extreme mechanical and chemical conditions
- Lid fixing screws equipped with sealing holes
- Fixing holes outside the sealed area
- Thread for fitting to terminal rails, mounting plates and PCBs
- High thermal stability thanks to the polycarbonate
- Extremely tough and impact-resistant thanks to the high fiberglass content
- Good IP rating, due to use of polyurethane gasket material
9535340000 Standards
EAC Certified|RoHS CompliantSKU #2417726Part Number #9535340000UNSPSC39121327UPC04032248009237
Image provided may only be a representation of final product and may include optional equipment
