Part Number # BN4161406CHAL
SKU # 2438023
Image Disclaimers Message
Brand: Wiegmann
BN4161406CHAL
Wiegmann BN4161406CHAL
Part Number # BN4161406CHAL
SKU # 2438023
$767.47 / Each
Typical price:$1323.88 / Each
Wiegmann BN4161406CHAL Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | BN4161406CHAL |
| SKU #: | 2438023 |
| Capacity: | 1344 cu-in |
| Finish: | Smooth Grained |
| NEMA Rating: | NEMA 4/4X/12/13 |
| Panel Size: | 14.88 x 12.88 in |
| Series: | BN4-CHAL |
| Type: | Welded Seam |
| Color: | Aluminum |
| Country of origin: | US |
| Depth: | 6 in |
| Height: | 16 in |
| Material: | Aluminum Alloy |
| Mounting type: | External Feet/Wall |
| Width: | 14 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725335046 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$767.47 / Each
Typical price:$1323.88 / Each
Quantity:
Wiegmann BN4161406CHAL
Brand: Wiegmann
Part Number: BN4161406CHAL

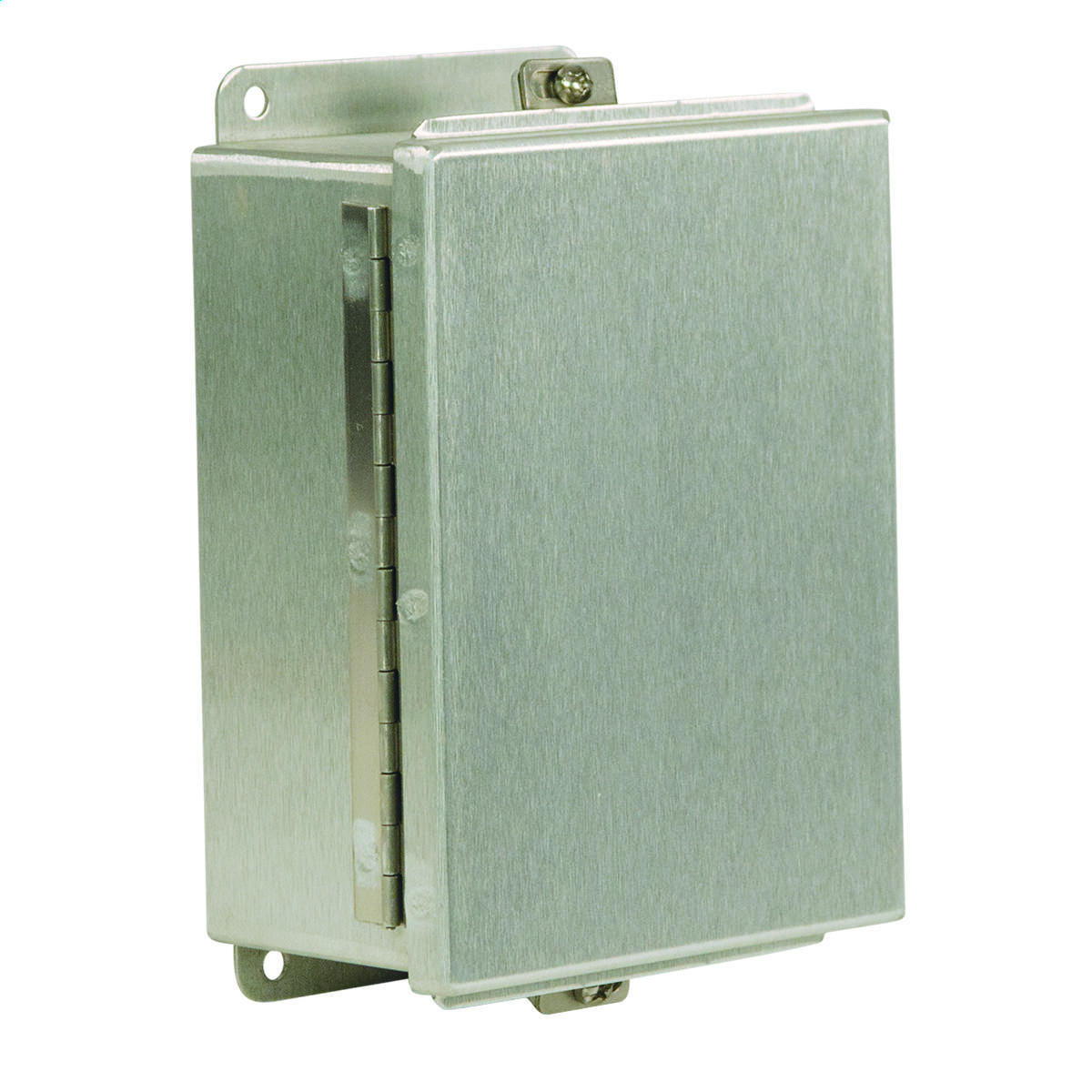

Wiegmann® Enclosure, Welded Seam, Series: BN4-CHAL, 14 in Width, 6 in Depth, 16 in Height, NEMA 4/4X/12/13, Continuous Hinged Cover, 14.88 x 12.88 in Panel, 1344 cu-in, External Feet/Wall Mount, Aluminum Alloy, Smooth Grained, Aluminum
Additional Description: WGMN-BN4161406CHAL (N) N4X JIC CONT HINGE 16X14X6 ALUMINUM NON-CANCELABLE, NON-RETURNABLE
Catalog Description: N4X JIC Continuous Hinge 16X14X6 Aluminum
BN4161406CHAL Application
For electrical, electronic, pneumatic components, ideal for applications where a lightweight, corrosion resistant enclosure is requiredBN4161406CHAL Includes
Stainless Steel Screws and ClampBN4161406CHAL Item Features
- Bodies and doors fabricated from 14 ga 0.08 in THK 5052-H32 aluminum
- Continuously welded seams ground smooth, less holes or knockouts
- Closed cell oil-resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided to secure optional back panel
- Stainless steel screws and clamps on three sides of cover to assure watertight seal
- Grounding provisions provided
- Cover removed by pulling stainless steel continuous hinged pin
- Without knockout
BN4161406CHAL Standards
CSA File No. LL66078|IEC 60529|UL File No. E6924/E64791/E470978|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|IEC Certified|JIC EL-1-71SKU #2438023Part Number #BN4161406CHALUNSPSC39121324UPC00786725335046
