Part Number # HW-100806CHSC
SKU # 2247671
HW-100806CHSC

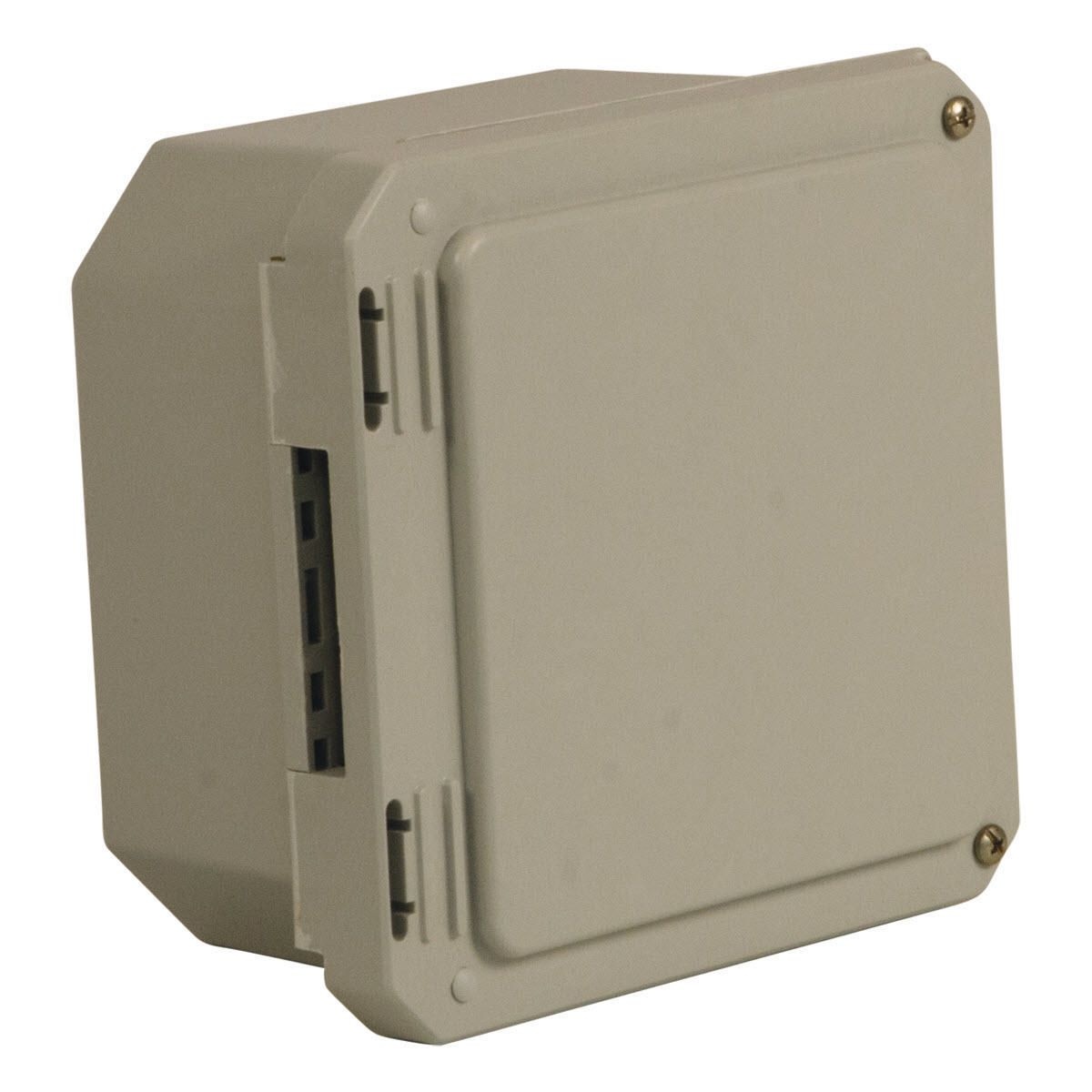

Wiegmann HW-100806CHSC Enclosure
Part Number # HW-100806CHSC
SKU # 2247671
$217.28 / Each
Typical price:$299.84 / Each
Wiegmann HW-100806CHSC Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | HW-100806CHSC |
| SKU #: | 2247671 |
| Capacity: | 480 cu-in |
| NEMA Rating: | NEMA 1/3/3S/4X/12/13 |
| Series: | Premier, Premier™, Premium |
| Temperature Rating (Degrees F): | -40 to 250, -40 to 250 deg F |
| Type: | Non-Metallic |
| Depth: | 6.31, 6.31 in |
| Height: | 11.42 in |
| Length: | 11.42 |
| Mounting type: | Wall |
| Width: | 9.79, 9.79 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725856039 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$217.28 / Each
Typical price:$299.84 / Each
Quantity:
- Wiegmann, HW-100806CHSC, Enclosure, Non-Metallic, Series: Premier 9.79 in Width, 6.31 in Depth, 11.42 in Height, NEMA 1/3/3S/4X/12/13 NEMA Rating, Hinged Cover, 480 cu-in Capacity, Wall Mounting, -40 to 250 deg F, Fiberglass, Gray
HW-100806CHSC Item Features
- Constructed of molded fiberglass
- Rounded edges, minimal protrusions or exposed pocket area for accumulation of dust or debris
- Optional mounting foot kit is available
- Full 180 deg door opening
- Raised bosses with brass inserts accepting 10-32 screws for optional panel mounting
- 300 series stainless steel used on all external hardware
- Excellent chemical and corrosion resistance
- Impact resistance and physical strength greater than that of ABS and PVC
- Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal
- Continuous hinge with two-screw cover
HW-100806CHSC Standards
UL E64791|cUL 50/508 File No. E64791|CSA C22.2 File No. 222873|IEC 60529|NFPA No. 101|Class A|UL 94 V-0/5V Flammability RatingSKU #2247671Part Number #HW-100806CHSCUNSPSC39121324UPC00786725856039
Image provided may only be a representation of final product and may include optional equipment
