Part Number # HW-181610CHQR
SKU # 2186248
Image Disclaimers Message
Brand: Wiegmann
HW-181610CHQR

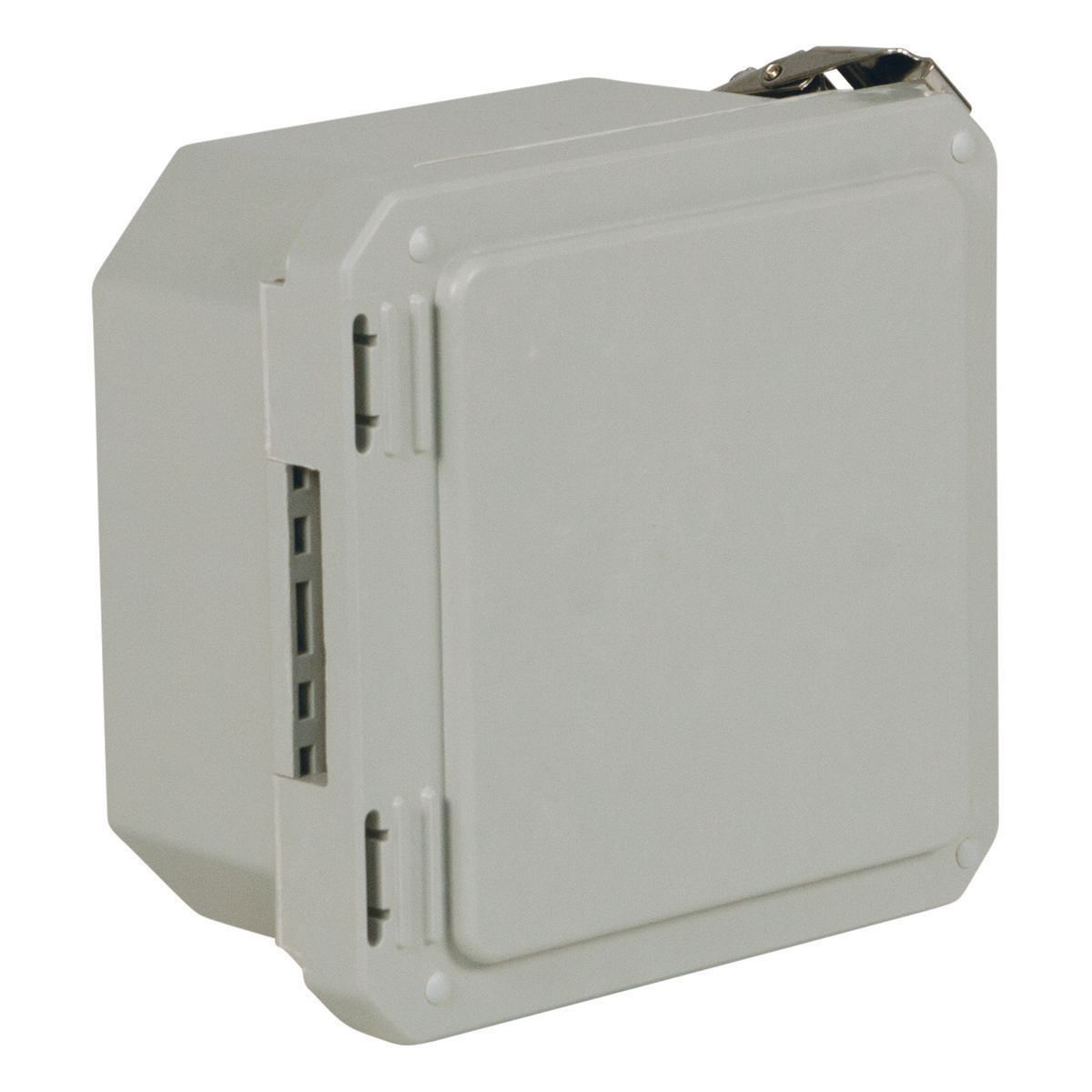

Wiegmann HW-181610CHQR Enclosure
Part Number # HW-181610CHQR
SKU # 2186248
$492.22 / Each
Typical price:$679.26 / Each
Wiegmann HW-181610CHQR Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | HW-181610CHQR |
| SKU #: | 2186248 |
| Capacity: | 2880 cu-in |
| NEMA Rating: | NEMA 1/3/3S/4X/12/13 |
| Series: | Premier |
| Temperature Rating (Degrees F): | -76 to 274 deg F |
| Type: | Non-Metallic |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 10.34 in |
| Height: | 19.77 in |
| Material: | Fiberglass |
| Mounting type: | Wall |
| Width: | 18.15 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725856183 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$492.22 / Each
Typical price:$679.26 / Each
Quantity:
Wiegmann HW-181610CHQR Enclosure
Brand: Wiegmann
Part Number: HW-181610CHQR
Wiegmann Enclosure, Non-Metallic, Series: Premier , 18.15 in Width, 10.34 in Depth, 19.77 in Height, NEMA 1/3/3S/4X/12/13, Hinged/Opaque Cover, Lock: Padlock/Pull Latch, 2880 cu-in, Wall Mount, -76 to 274 deg F, Fiberglass, Gray
Additional Description: WGMN-HW-181610CHQR PS OC HPL GR 18.63X16.63X10.06
Catalog Description: NEMA 4X Continuous Hinge Quick Release Padlockable 18X16X10 Fiberglass-Opaque
HW-181610CHQR Item Features
- Constructed of molded fiberglass
- Continuous hinge with quick-release padlockable latches
- Poured seamless gasket provides a water-tight and dust-tight seal
- Optional mounting foot kit is available
HW-181610CHQR Standards
cUL 50/508 File No. E64791|CSA C22.2 File No. 222873|IEC 60529|NFPA No. 101|Class A|UL 94 V-0/5V Flammability RatingSKU #2186248Part Number #HW-181610CHQRUNSPSC39121324UPC00786725856183
