Part Number # N1C364811
SKU # 2208625
Image Disclaimers Message
N1C364811

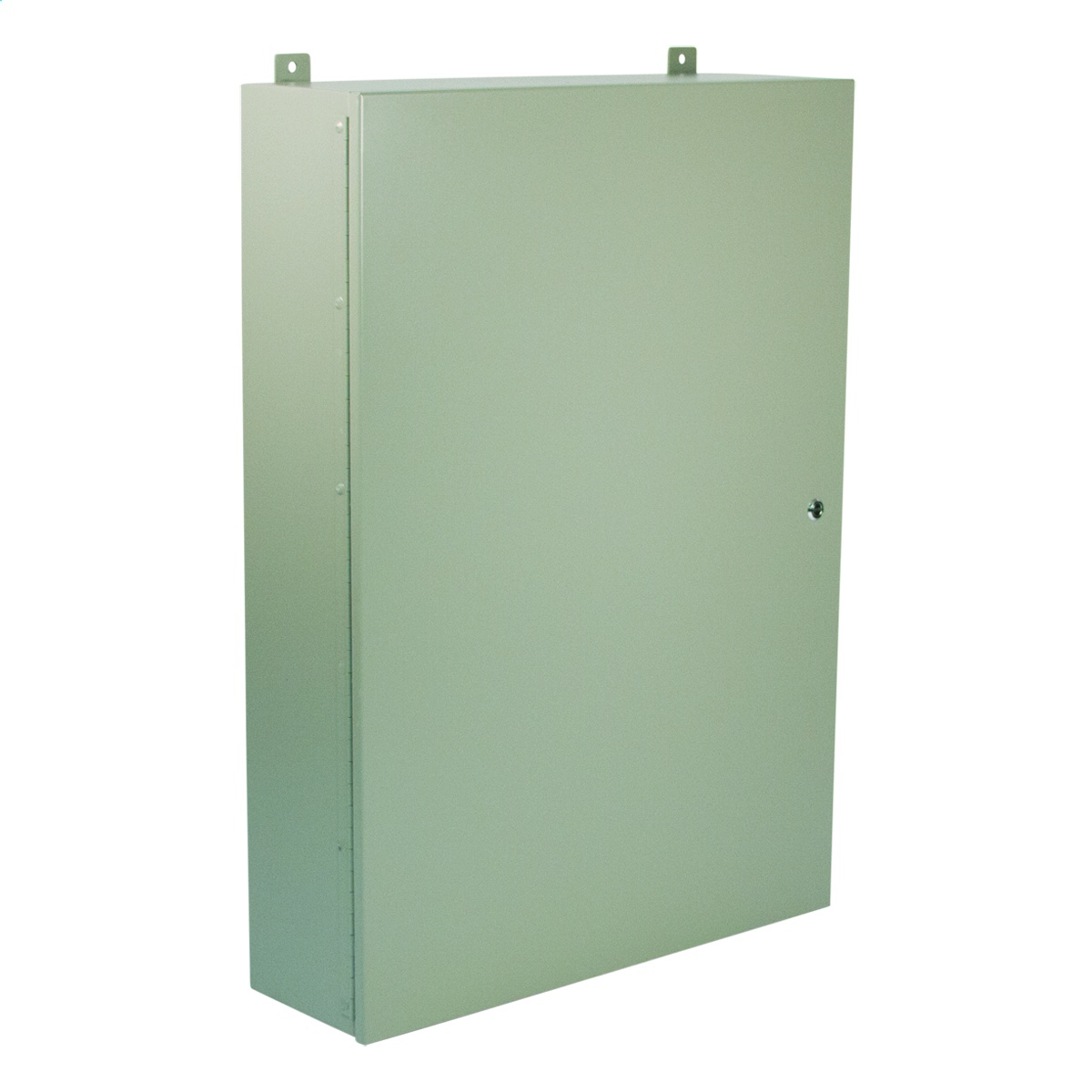

Wiegmann N1C364811 Enclosure
Part Number # N1C364811
SKU # 2208625
$1321.04 / Each
Typical price:$3284.74 / Each
Wiegmann N1C364811 Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | N1C364811 |
| SKU #: | 2208625 |
| Capacity: | 18904.32, 18904.32 cu-in |
| Finish: | Textured/Polyester Powder Coated |
| NEMA Rating: | NEMA 1 |
| Panel Size: | 45 x 33, 45 x 33 in |
| Series: | N1C, N1C Series |
| Type: | Large Seam Spot Welded |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 10.94, 11 in |
| Height: | 48 in |
| Material: | Carbon Steel |
| Mounting type: | External Feet, External Feet/Wall |
| Width: | 36, 36 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725341979 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1321.04 / Each
Typical price:$3284.74 / Each
Quantity:
Wiegmann N1C364811 Enclosure
Brand: Wiegmann
Part Number: N1C364811
Wiegmann Enclosure, Large Seam Spot Welded, Series: N1C, 36 in Width, 11 in Depth, 48 in Height, NEMA 1 NEMA Rating, Continuous Hinged Cover, 45 x 33 in Panel, Lock: Quarter-Turn Latch, 18904.32 cu-in Capacity, External Feet/Wall Mounting, Carbon Steel, Textured/Polyester Powder Coated, Gray
Additional Description: WGMN-N1C364811 N1 HINGED COVER 36X48X11 CRBN STL -GRY
Catalog Description: N1 Hinged-Cover 36X48X11 Carbon Steel - Gray
N1C364811 Application
For use in control and instrumentation applications in areas which do not require oil-tight and dust-tight specificationsN1C364811 Item Features
- Bodies and doors fabricated from 14 ga carbon steel
- Doors are easily removable by pulling the hinged pin
- Grounding provisions provided
- Doors are furnished standard with flush mount quarter-turn latch
- Without knockout
- Collar studs provided for mounting optional back panels
N1C364811 Standards
CSA File No. LL66078|UL 50|UL File No. E6924|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2208625Part Number #N1C364811UNSPSC39121324UPC00786725341979
