Part Number # N412161206WC
SKU # 2274355
Image Disclaimers Message
Brand: Wiegmann
N412161206WC

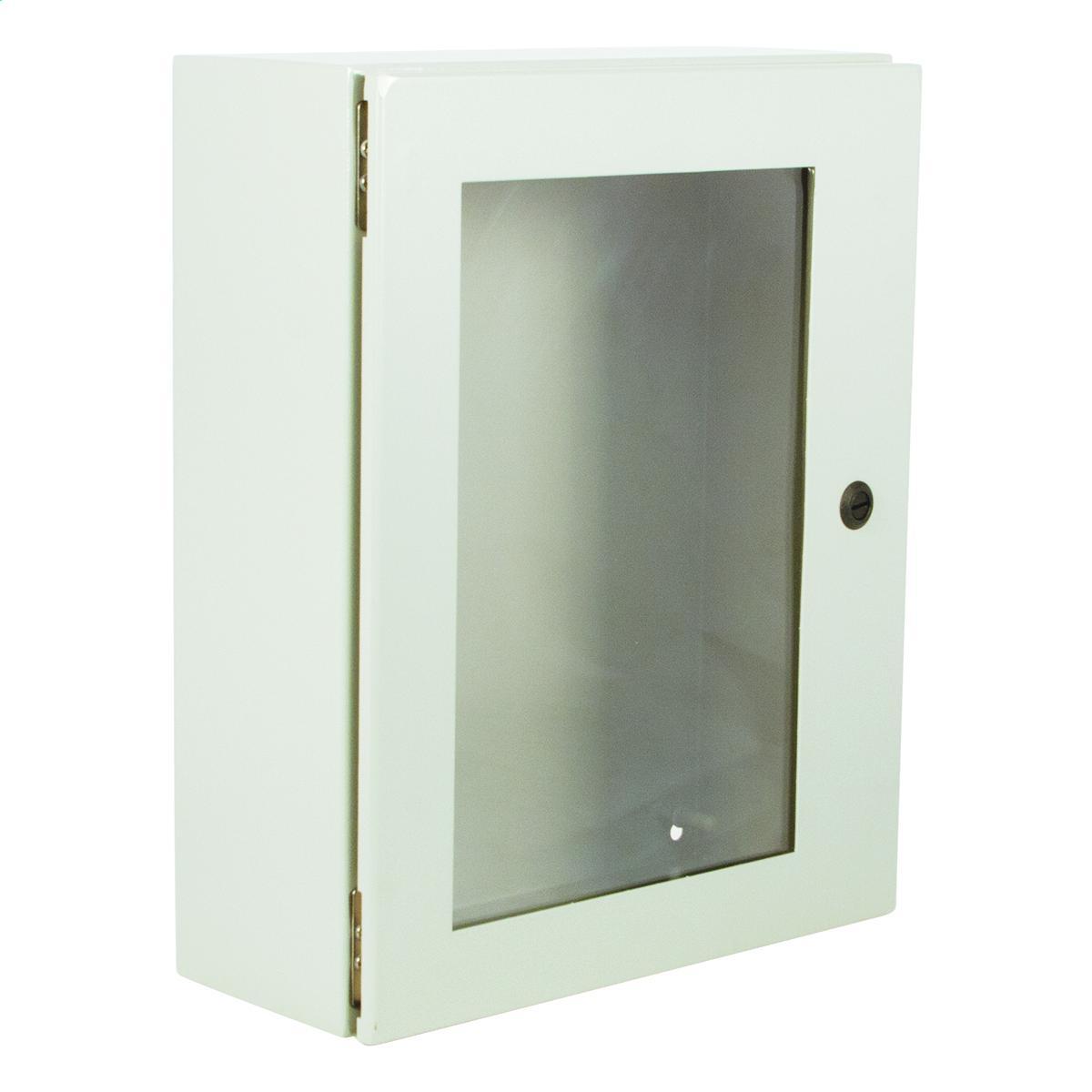

Wiegmann N412161206WC Enclosure
Part Number # N412161206WC
SKU # 2274355
$647.72 / Each
Typical price:$1342.12 / Each
Wiegmann N412161206WC Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | N412161206WC |
| SKU #: | 2274355 |
| Capacity: | 1152, 1152 cu-in |
| Finish: | Smooth/Polyester Powder Coated |
| NEMA Rating: | NEMA 3R/4/12/13 |
| Panel Size: | 14.2 x 10.2, 14.2 x 10.2 in |
| Series: | N412-WC ULTIMATE, N412-WC ULTIMATE® |
| Type: | 1-Door Welded Seam |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 6, 6 in |
| Height: | 16 in |
| Material: | Carbon Steel |
| Mounting type: | Hole/Wall, Mounting Hole |
| Width: | 12, 12 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725859405 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$647.72 / Each
Typical price:$1342.12 / Each
Quantity:
- Wiegmann Enclosure, 1-Door Welded Seam, Series: N412-WC ULTIMATE, 12 in Width, 6 in Depth, 16 in Height, NEMA 3R/4/12/13, Concealed Hinged Cover, 14.2 x 10.2 in Panel, Lock: Quarter-Turn Semi-Flush Latch, 1152 cu-in, Hole/Wall Mount, Carbon Steel, Smooth/Polyester Powder Coated, Gray
N412161206WC Application
For house and protect electrical and electronic components from harsh, dirty environments, used in installations where dirt, dust, oil, water or other contaminants are present, streamlined styling, flush latching and attractive stainless steel finish complements any high tech electronic equipmentN412161206WC Item Features
- Bodies and doors fabricated from 14 ga carbon steel
- Continuously plasma welded seams
- Increased tub opening for better access
- Plexiglass viewing window
- Doors are interchangeable and easily removable
- Grounding provisions provided
- 1/4 turn semi-flush oiltight latches are supplied to hold door securely closed
- Print pocket is provided
- Doors are sealed with poured in place polyurethane gasket
- Mounting holes in rear of enclosure
- Studs for mounting
N412161206WC Standards
CSA File No. LL66078|UL 508A|UL File No. E64791/E470978|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2274355Part Number #N412161206WCUNSPSC39121324UPC00786725859405
