Part Number # N412242208CD
SKU # 2460166
N412242208CD
Wiegmann N412242208CD
Part Number # N412242208CD
SKU # 2460166
Wiegmann N412242208CD Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | N412242208CD |
| SKU #: | 2460166 |
| Capacity: | 4224 cu-in |
| Finish: | Smooth/Polyester Powder Coated |
| NEMA Rating: | NEMA 3R/4/4X/12/13/412 |
| Panel Size: | 18.2 in W x 22.2 in H |
| Series: | N412CD ULTIMATE |
| Type: | 1-Door |
| Country of origin: | US |
| Depth: | 8 in |
| Height: | 24 in |
| Material: | Carbon Steel |
| Mounting type: | Mounting Hole/Flange/Wall |
| Width: | 22 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725862634 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Wiegmann N412242208CD
Brand: Wiegmann
Part Number: N412242208CD
Wiegmann® Disconnect Enclosure, 1-Door, Series: N412CD ULTIMATE®, 22 in Width, 8 in Depth, 24 in Height, NEMA 3R/4/4X/12/13/412, Concealed Hinged Cover, 18.2 in W x 22.2 in H Panel, Lock: 2-Point Latch, 4224 cu-in, Mounting Hole/Flange/Wall Mount, Carbon Steel, Smooth/Polyester Powder Coated, Gray
Additional Description: WGMN-N412242208CD N412 SGL DR FLG DISC ULTM 24X22X8 CS-GRY
Catalog Description: N412 Single Door Flanged Disconnect Ultimate 24X22X8 Carbon Steel - Gray
N412242208CD Application
For general purpose use which accept major brand disconnect switches and circuit breakersN412242208CD Item Features
- Bodies and doors fabricated from 14 ga carbon steel
- Latching system interlocks with the disconnect handle for added safety
- Seams are continuously plasma welded and ground smooth
- Increased tub opening for better access
- Doors are interchangeable and easily removable
- Grounding provisions provided
- Doors are sealed with poured in place polyurethane gasket
- Mounting holes in rear of enclosure
- Studs for mounting optional sub panel
- Door latching system installed on door with a slotted insert defeater mechanism to open
N412242208CD Standards
CSA File No. LL66078|UL 508A|UL File No. E64791/E470978|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2460166Part Number #N412242208CDUNSPSC39121324UPC00786725862634

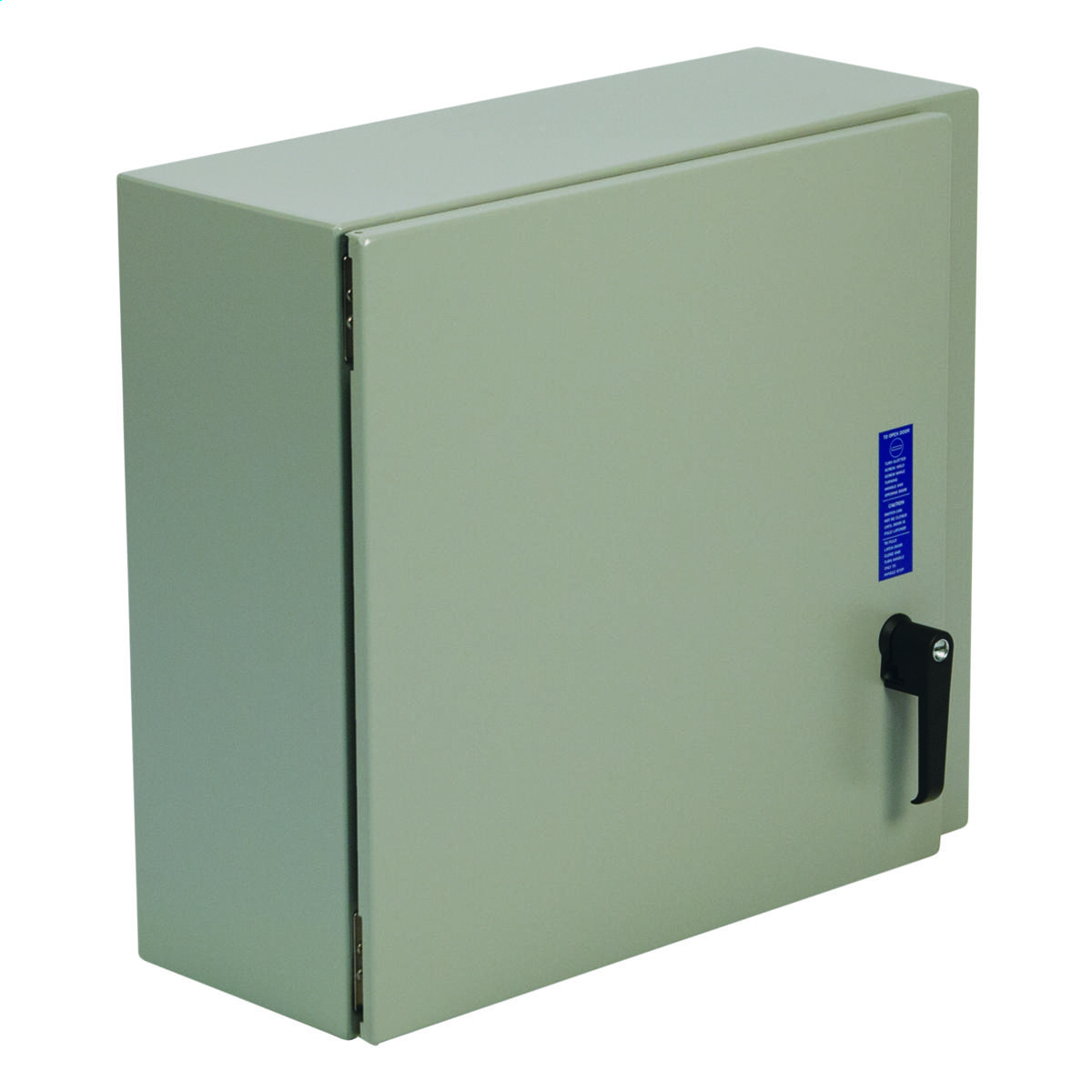

Image provided may only be a representation of final product and may include optional equipment
