Brand: Wiegmann
N412242408WC

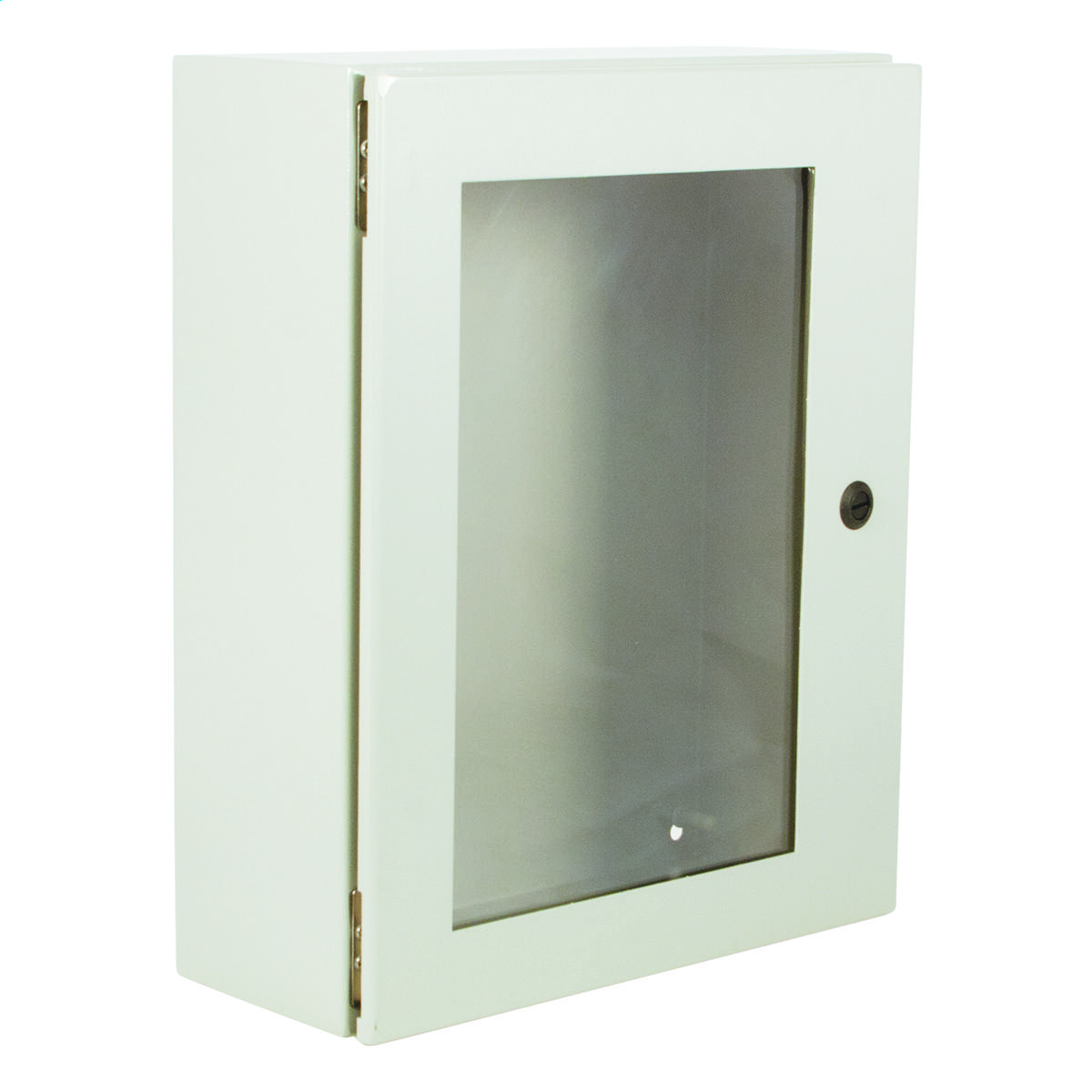

Wiegmann N412242408WC Enclosure
Part Number # N412242408WC
SKU # 2308793
$989.08 / Each
Typical price:$2049.44 / Each
Wiegmann N412242408WC Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | N412242408WC |
| SKU #: | 2308793 |
| Capacity: | 4608, 4608 cu-in |
| Finish: | Smooth/Polyester Powder Coated |
| NEMA Rating: | NEMA 3R/4/12/13 |
| Panel Size: | 22.2 x 22.2, 22.2 x 22.2 in |
| Series: | N412-WC ULTIMATE, N412-WC ULTIMATE® |
| Type: | 1-Door Welded Seam |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 8, 8 in |
| Height: | 24 in |
| Material: | Carbon Steel |
| Mounting type: | Hole/Wall, Mounting Hole |
| Width: | 24, 24 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725859511 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$989.08 / Each
Typical price:$2049.44 / Each
Quantity:
Wiegmann N412242408WC Enclosure
Brand: Wiegmann
Part Number: N412242408WC
Wiegmann Enclosure, 1-Door Welded Seam, Series: N412-WC ULTIMATE , 24 in Width, 8 in Depth, 24 in Height, NEMA 3R/4/12/13, Concealed Hinged Cover, 22.2 x 22.2 in Panel, Lock: Quarter-Turn Semi-Flush Latch, 4608 cu-in, Hole/Wall Mount, Carbon Steel, Smooth/Polyester Powder Coated, Gray
Additional Description: WGMN-N412242408WC N412 1DR WM ULTM W/WDW 24X24X8 CS -GRY
Catalog Description: N412 Single Door Wall-Mount Ultimate with Window 24X24X8 Carbon Steel - Gray
N412242408WC Application
For house and protect electrical and electronic components from harsh, dirty environments, used in installations where dirt, dust, oil, water or other contaminants are present, streamlined styling, flush latching and attractive stainless steel finish complements any high tech electronic equipmentN412242408WC Item Features
- Bodies and doors fabricated from 14 ga carbon steel
- Mounting holes in rear of enclosure
- Studs for mounting
- Continuously plasma welded seams
- Increased tub opening for better access
- Plexiglass viewing window
- Doors are interchangeable and easily removable
- Grounding provisions provided
- 1/4 turn semi-flush oiltight latches are supplied to hold door securely closed
- Print pocket is provided
- Doors are sealed with poured in place polyurethane gasket
N412242408WC Standards
CSA File No. LL66078|UL 508A|UL File No. E64791/E470978|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2308793Part Number #N412242408WCUNSPSC39121324UPC00786725859511
