Part Number # N412363010SSAC
SKU # 2286985
Image Disclaimers Message
N412363010SSAC

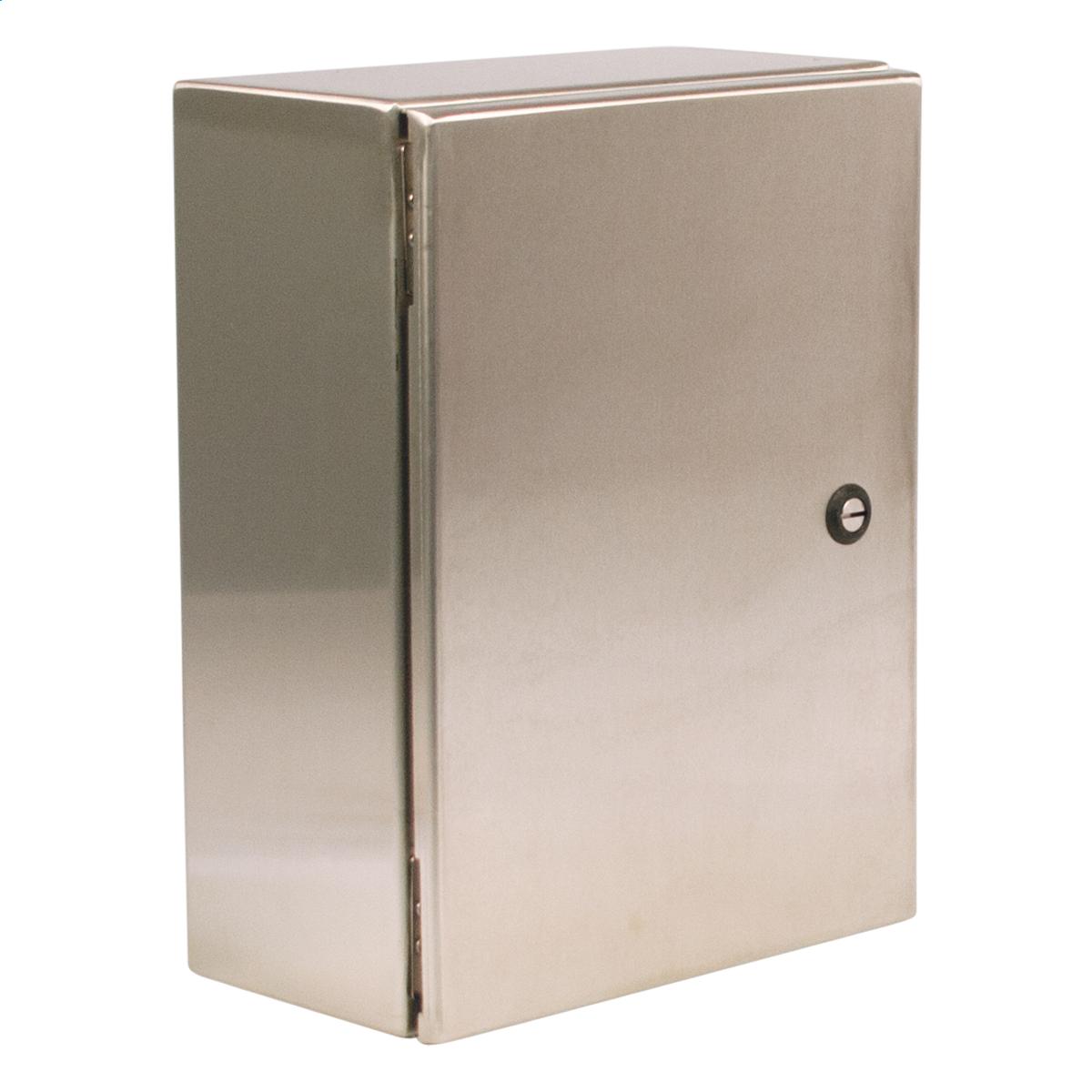

Wiegmann N412363010SSAC Enclosure
Part Number # N412363010SSAC
SKU # 2286985
$4260.18 / Each
Typical price:$8827.40 / Each
Wiegmann N412363010SSAC Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | N412363010SSAC |
| SKU #: | 2286985 |
| Capacity: | 10800, 10800 cu-in |
| Finish: | Smooth Grained |
| NEMA Rating: | NEMA 3R/4/4X/12/13 |
| Panel Size: | 34.2 x 28.2, 34.2 x 28.2 in |
| Series: | N412-SSC ULTIMATE®, N412-SSC ULTIMATE� |
| Type: | 1-Door Welded Seam |
| Color: | Silver |
| Country of origin: | US |
| Depth: | 10, 10 in |
| Height: | 36 in |
| Material: | 316 Stainless Steel |
| Mounting type: | Hole/Wall, Mounting Hole |
| Width: | 30, 30 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725871681 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4260.18 / Each
Typical price:$8827.40 / Each
Quantity:
Wiegmann N412363010SSAC Enclosure
Brand: Wiegmann
Part Number: N412363010SSAC
Wiegmann Enclosure, 1-Door Welded Seam, Series: N412-SSC ULTIMATE , 30 in Width, 10 in Depth, 36 in Height, NEMA 3R/4/4X/12/13, Concealed Hinged Cover, 34.2 x 28.2 in Panel, Lock: Quarter-Turn Semi-Flush Latch, 10800 cu-in, Hole/Wall Mount, 316 Stainless Steel, Smooth Grained, Silver
Additional Description: WGMN-N412363010SSAC N412 SGL DR WALL MNT ULTM 36X30X10 316SS
Catalog Description: N412 Single Door Wall-Mount Ultimate 36X30X10 316 Stainless Steel
N412363010SSAC Application
For house and protect electrical and electronic components from harsh, dirty environments, used in installations where dirt, dust, oil, water or other contaminants are present, streamlined styling, flush latching and attractive stainless steel finish complements any high tech electronic equipmentN412363010SSAC Item Features
- Bodies and doors fabricated from 14 ga 316 stainless steel
- Continuously plasma welded seams
- Increased tub opening for better access
- Doors are interchangeable and easily removable
- Ground stud located in door
- 1/4 turn semi-flush oiltight latches are supplied to hold door securely closed
- Print pocket is provided
- Doors are sealed with poured in place polyurethane gasket
- Mounting holes in rear of enclosure
- Studs for mounting
- Without knockout
N412363010SSAC Standards
CSA File No. LL66078|IEC 60529|UL 508A|UL File No. E64791/E470978|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2286985Part Number #N412363010SSACUNSPSC39121324UPC00786725871681
