Part Number # N412363208CD
SKU # 2215818
Image Disclaimers Message
N412363208CD

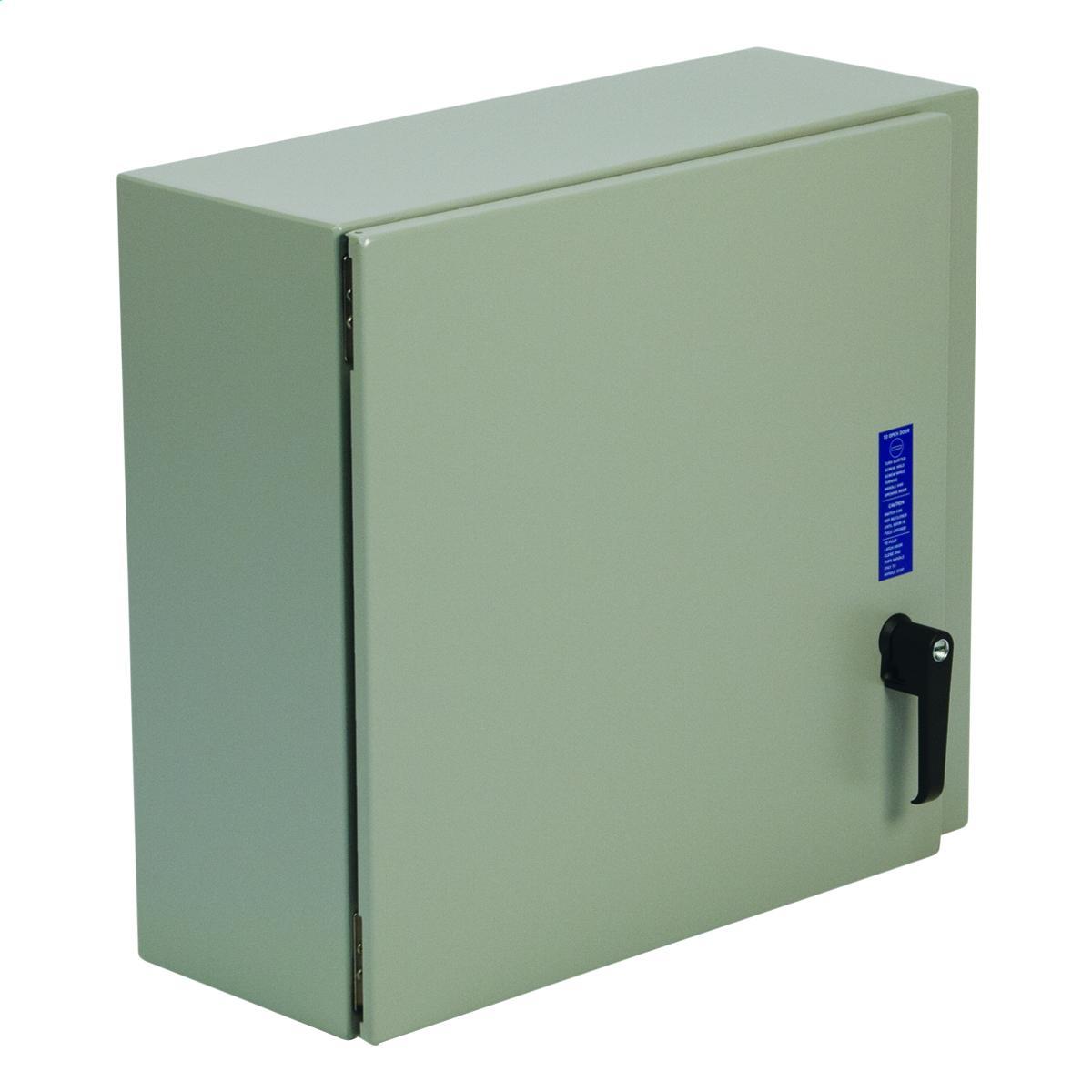

Wiegmann N412363208CD Disconnect Enclosure
Part Number # N412363208CD
SKU # 2215818
$1581.43 / Each
Typical price:$3276.84 / Each
Wiegmann N412363208CD Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | N412363208CD |
| SKU #: | 2215818 |
| Capacity: | 9216, 9216 cu-in |
| Finish: | Smooth/Polyester Powder Coated |
| NEMA Rating: | NEMA 3R/4/4X/12/13/412 |
| Panel Size: | 28.2 in W x 34.2 in H, 34.2 in H x 28.2 in W |
| Series: | N412CD ULTIMATE, N412CD ULTIMATE®, N412CD ULTIMATE® Series |
| Type: | 1-Door |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 8, 8 in |
| Height: | 36 in |
| Material: | Carbon Steel |
| Mounting type: | Mounting Hole/Flange/Wall |
| Width: | 32, 32 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725862719 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1581.43 / Each
Typical price:$3276.84 / Each
Quantity:
Wiegmann N412363208CD Disconnect Enclosure
Brand: Wiegmann
Part Number: N412363208CD
Wiegmann Disconnect Enclosure, 1-Door, Series: N412CD ULTIMATE , 32 in Width, 8 in Depth, 36 in Height, NEMA 3R/4/4X/12/13/412, Concealed Hinged Cover, 28.2 in W x 34.2 in H Panel, Lock: 2-Point Latch, 9216 cu-in, Mounting Hole/Flange/Wall Mount, Carbon Steel, Smooth/Polyester Powder Coated, Gray
Additional Description: WGMN-N412363208CD N412 SGL DR FLG DISC ULTM 36X32X8 CS-GRY 36X32X8W/HNDL-ULTIMATE
Catalog Description: N412 Single Door Flanged Disconnect Ultimate 36X32X8 Carbon Steel - Gray
N412363208CD Application
For general purpose use which accept major brand disconnect switches and circuit breakersN412363208CD Item Features
- Bodies and doors fabricated from 14 ga carbon steel
- Seams are continuously plasma welded and ground smooth
- Increased tub opening for better access
- Doors are interchangeable and easily removable
- Grounding provisions provided
- Doors are sealed with poured in place polyurethane gasket
- Studs for mounting optional sub panel
- Door latching system installed on door with a slotted insert defeater mechanism to open
- Latching system interlocks with the disconnect handle for added safety
N412363208CD Standards
CSA File No. LL66078|UL 508A|UL File No. E64791/E470978|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2215818Part Number #N412363208CDUNSPSC39121324UPC00786725862719
