Part Number # N412483616CSSST
SKU # 2198525
Image Disclaimers Message
N412483616CSSST
Wiegmann N412483616CSSST Enclosure
Part Number # N412483616CSSST
SKU # 2198525
Wiegmann N412483616CSSST Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | N412483616CSSST |
| SKU #: | 2198525 |
| Capacity: | 27648, 27648 cu-in |
| Finish: | Smooth Grained |
| NEMA Rating: | NEMA 3R/4/4X/12/13 |
| Panel Size: | 46.2 x 34.2, 46.2 x 34.2 in |
| Series: | N412-CSSST ULTIMATE, N412-CSSST ULTIMATE® |
| Type: | 1-Door Slope Top Welded Seam |
| Color: | Silver |
| Country of origin: | US |
| Depth: | 16, 16 in |
| Height: | 48 in |
| Material: | 304 Stainless Steel |
| Mounting type: | Hole/Wall, Mounting Hole |
| Width: | 36, 36 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725864270 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

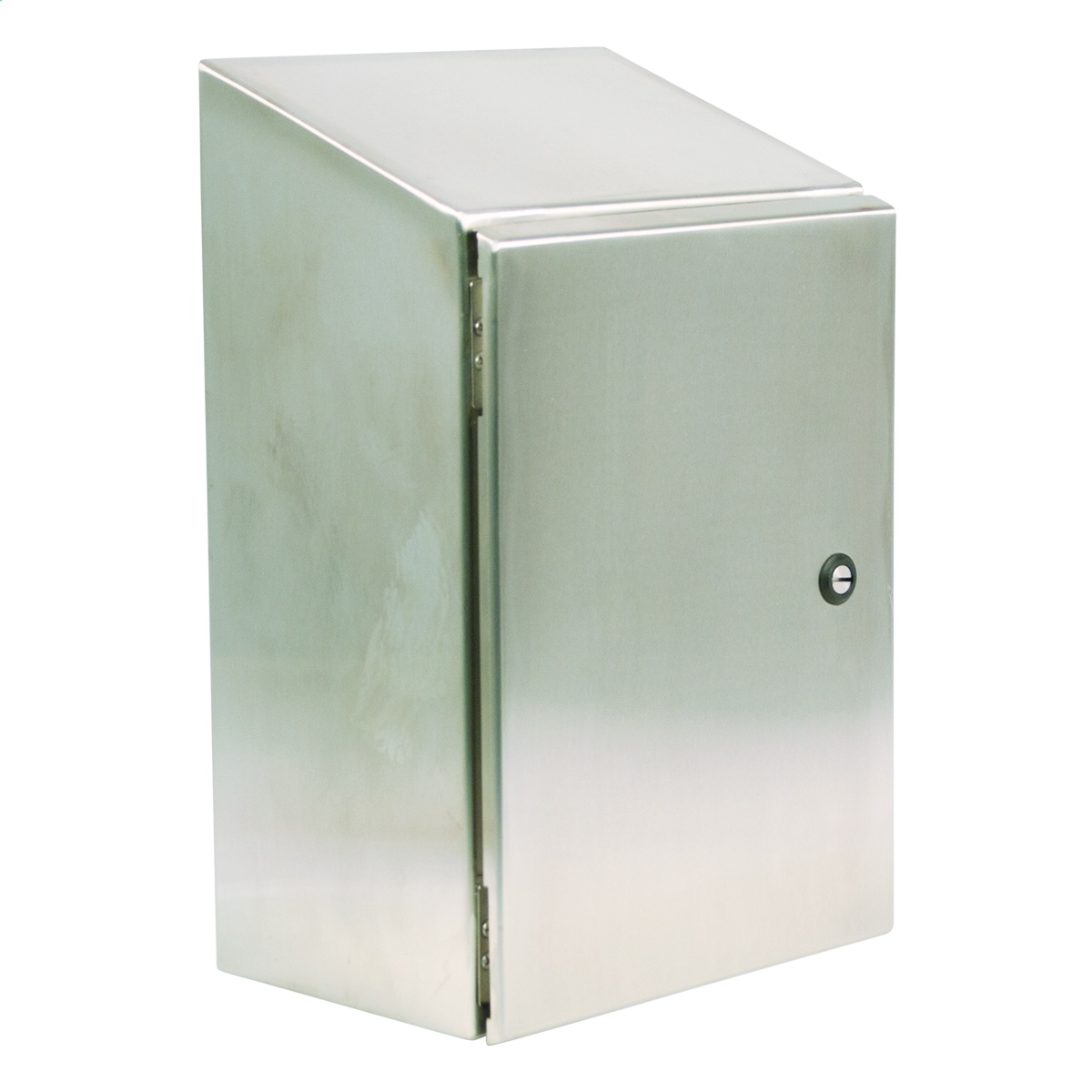

Wiegmann N412483616CSSST Enclosure
Brand: Wiegmann
Part Number: N412483616CSSST
Wiegmann Enclosure, 1-Door Slope Top Welded Seam, Series: N412-CSSST ULTIMATE , 36 in Width, 16 in Depth, 48 in Height, NEMA 3R/4/4X/12/13 NEMA Rating, Concealed Hinged Cover, 46.2 x 34.2 in Panel, Lock: Quarter-Turn Semi-Flush Latch, 27648 cu-in Capacity, Hole/Wall Mounting, 304 Stainless Steel, Smooth Grained, Silver
Additional Description: WGMN-N412483616CSSST N412 1 DR SLOPE TOP ULTM 48X36X16 304SS TOP,SS,48X36X16
Catalog Description: N412 Single Door Slope-Top Ultimate 48X36X16 304 Stainless Steel
N412483616CSSST Application
For house and protect electrical and electronic components from harsh, dirty environments, used in installations where dirt, dust, oil, water or other contaminants are present, streamlined styling, flush latching and attractive stainless steel finish complements any high tech electronic equipmentN412483616CSSST Item Features
- Bodies and doors fabricated from 14 ga 304 stainless steel
- Continuously plasma welded seams
- Increased tub opening for better access
- 20 deg sloped top
- Sloped top tub flange
- Concealed hinges
- Doors are interchangeable and easily removable
- Grounding provisions provided
- 1/4 turn semi-flush oiltight latches are supplied to hold door securely closed
- Print pocket is provided
- Enclosures are supplied with closed cell neoprene gasket
- Mounting holes in rear of enclosure
- Studs for mounting
- Ultimate accessory driven
- Without knockouts
N412483616CSSST Standards
CSA Certified File No. LL66078|IEC 60529|UL 508A|UL Listed File No. E64791/E470978|PROP65: This product can expose you to chemicals including - lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2198525Part Number #N412483616CSSSTUNSPSC39121324UPC00786725864270
