Part Number # PB3
SKU # 42997
PB3
Wiegmann PB3 Pushbutton Enclosure
Part Number # PB3
SKU # 42997
$143.86 / Each
Typical price:$298.08 / Each
Wiegmann PB3 Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | PB3 |
| SKU #: | 42997 |
| Capacity: | 73.06, 73.06 cu-in |
| Finish: | Polyester Powder Coated/Textured |
| NEMA Rating: | NEMA 4/12 |
| Number of Outlets: | 2 |
| Series: | PB Series |
| Type: | Operator Interface Standard |
| Depth: | 2.81, 2.81 in |
| Material: | Carbon Steel |
| Mounting type: | Wall |
| Width: | 3-1/4, 3-1/4 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121326 |
| UPC: | 00786725430154 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$143.86 / Each
Typical price:$298.08 / Each
Quantity:
- Wiegmann, PB3, Pushbutton Enclosure, Operator Interface Standard, Series: PB Series, 3-1/4 in Width, 2.81 in Depth, NEMA 4/12 NEMA Rating, Screw Cover, 2 Outlets, 73.06 cu-in Capacity, Wall Mounting, Carbon Steel, Polyester Powder Coated/Textured, Gray
PB3 Application
For use to hold all standard brands of pushbuttons, switches, pilot lightsPB3 Item Features
- Standard 4-way pushbutton holes accept all brands of oiltight pushbuttons, switches and pilot lights
- Captivated cover screws thread into sealed wells
- External mounting plates, top and bottom of enclosure
- Continuously welded seams ground smooth
- Bodies and doors fabricated from 14 ga steel
- Provides protection from dust, dirt, oil and water
- Closed cell oil-resistant neoprene gasket
- Grounding provisions provided
PB3 Standards
UL 508A|UL File No. E64791|CSA File No. LL66078|EEMAC Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #42997Part Number #PB3UNSPSC39121326UPC00786725430154

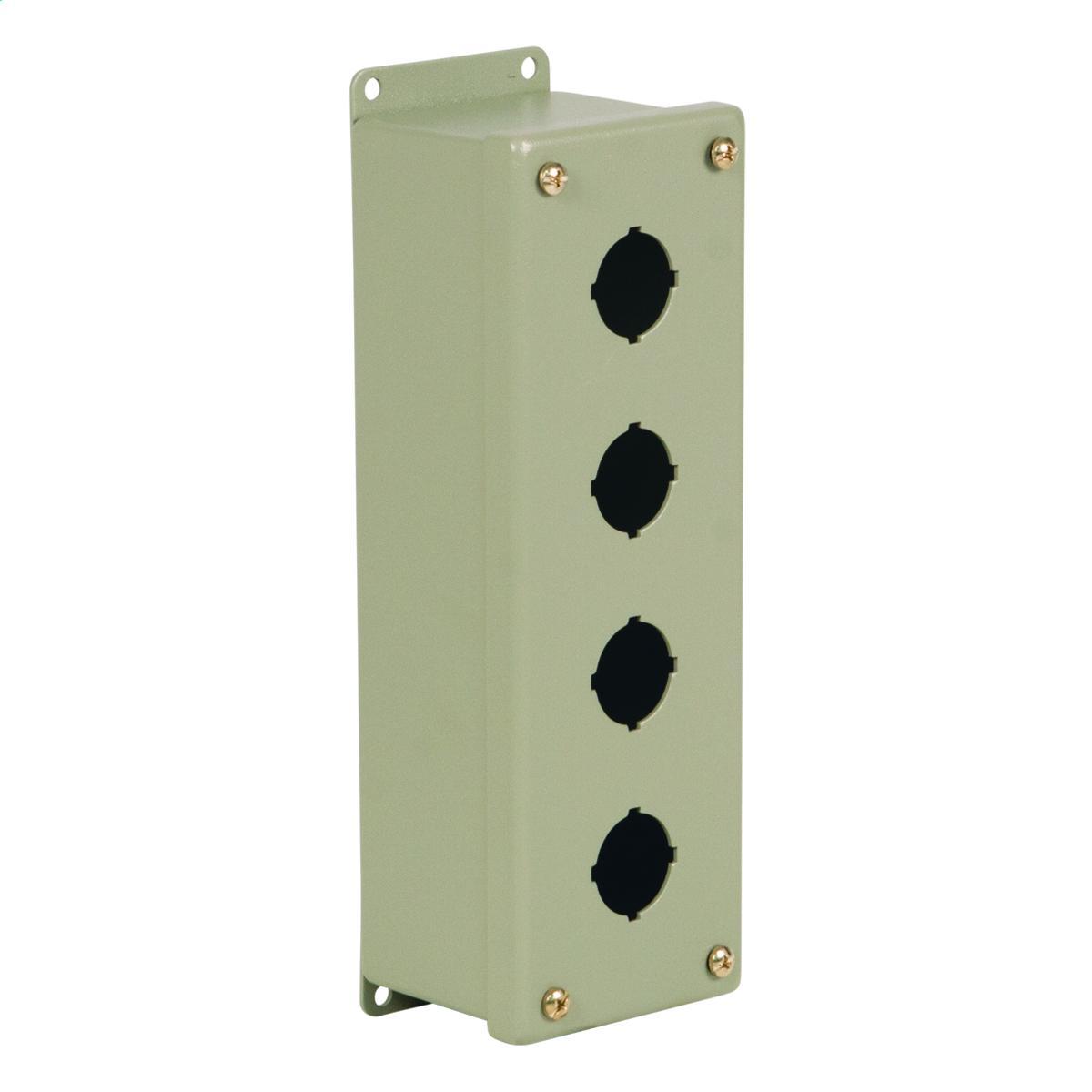

Image provided may only be a representation of final product and may include optional equipment
