Brand: Wiegmann

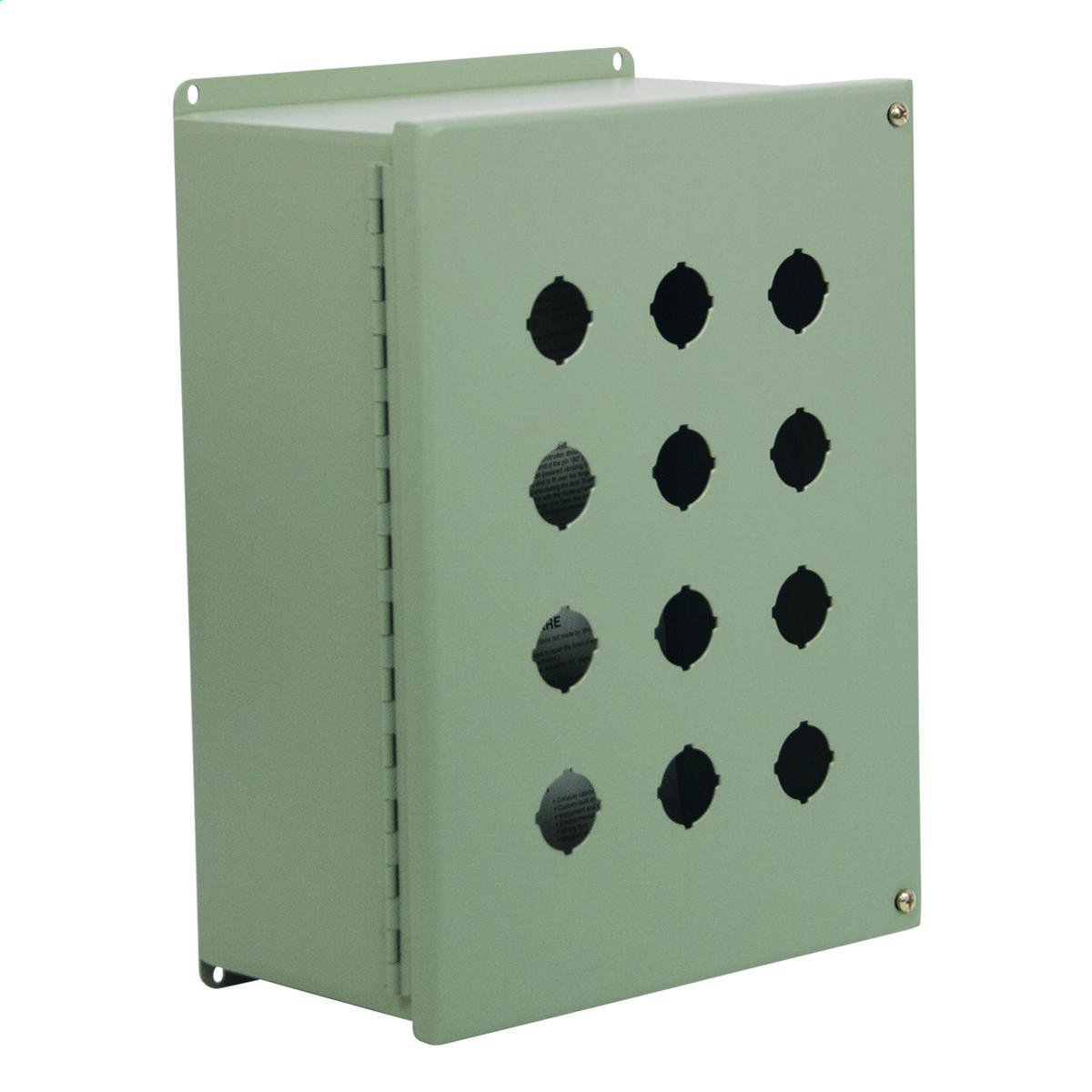

Wiegmann PBYX4S Pushbutton Enclosure
Image Disclaimers Message
Brand: Wiegmann
Wiegmann PBYX4S Pushbutton Enclosure
Brand: Wiegmann
Wiegmann PBYX4S Pushbutton Enclosure
Part #:PBYX4S
SKU #: 2154838
$245.30/EA
Key Features
Part #:PBYX4S
SKU #: 2154838
Brand: Wiegmann
Capacity: 382.5, 382.5 cu-in
Finish: Polyester Powder Coated/Textured
NEMA Rating: NEMA 4/12/13
Number of Outlets: 4
Panel Size: 6-1/2 x 5-1/2 in
$245.30/EA
- Continuously welded seams ground smooth
- Cover held in place by continuous hinge
- Closed cell oil resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Captivated cover screws thread into sealed wells
- Standard 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Grounding provisions provided
- Provides protection from dust, dirt, oil and water
- Fabricated from 14 ga steel
Specifications
Brand: Wiegmann
Capacity: 382.5, 382.5 cu-in
Finish: Polyester Powder Coated/Textured
NEMA Rating: NEMA 4/12/13
Number of Outlets: 4
Panel Size: 6-1/2 x 5-1/2 in
Series: PBYX
Type: Operator Interface
Color: Gray
Country of origin: US
Depth: 6, 6 in
Length: 8-1/2 in
Material: Carbon Steel
Mounting type: Wall
Width: 7-1/2, 7-1/2 in
Manufacturer Name: Hubbell
UNSPSC: 39121326
UPC: 00786725432387
Wiegmann PBYX4S Pushbutton Enclosure
Wiegmann Pushbutton Enclosure, Operator Interface, Series: PBYX, 7-1/2 in Width, 6 in Depth, NEMA 4/12/13, Continuous Hinged/Screw Cover, 4 Outlets, 382.5 cu-in, Wall Mount, Carbon Steel, Polyester Powder Coated/Textured, Gray
Additional Description: WGMN-PBYX4S N12 30.5MM 4 PB CH ENCL 8.5X7.5X6 CS-GRY W/PANEL, CH CVR
Catalog Description: N12 30.5 MM 4 Pushbutton Continuous Hingle Enclosure 8.5X7.5X6 Carbon Steel - Gray
Item FeaturesFor designed to hold 30.5 mm oil tight pushbuttons, switches and pilot lights with extra size to allow 2-1/2 in between centers of pushbutton holes
Item FeaturesBack Panel
Item Features
Item FeaturesUL 508A|CSA File No. LL66078|EEMAC Certified|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|JIC EL-1-71|UL 508 File No. E64791
