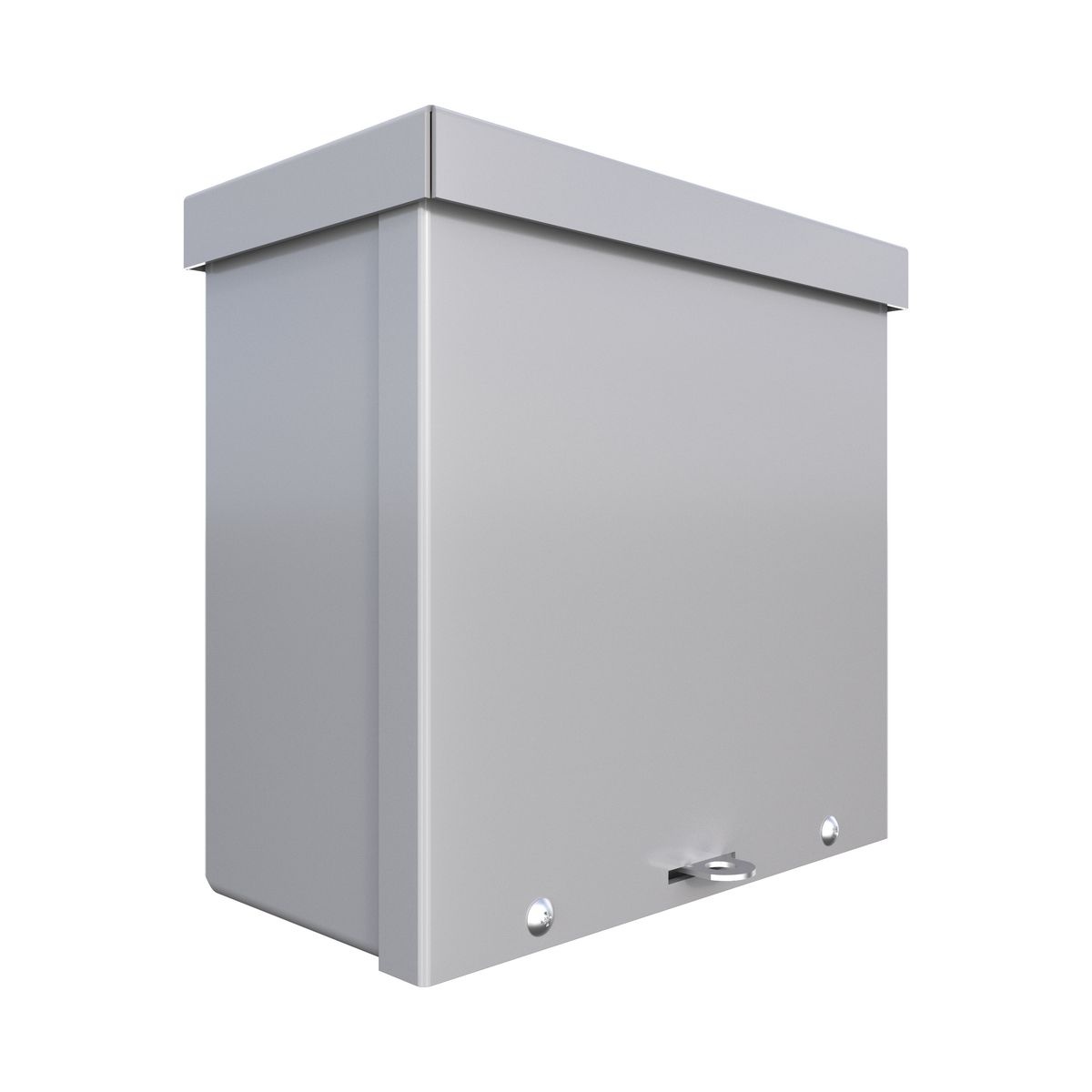

Wiegmann RSC080804 Enclosure
Part Number # RSC080804
SKU # 2259290
$39.68 / Each
Typical price:$131.20 / Each
Wiegmann RSC080804 Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | RSC080804 |
| SKU #: | 2259290 |
| Capacity: | 256 cu-in |
| Finish: | Polyester Powder Coated |
| NEMA Rating: | NEMA 3R |
| Series: | RSC |
| Type: | Rainproof |
| Country of origin: | MX |
| Depth: | 4 in |
| Height: | 8 in |
| Material: | Carbon Steel |
| Mounting type: | Wall |
| Width: | 8 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39131714 |
| UPC: | 00786725400300 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$39.68 / Each
Typical price:$131.20 / Each
Quantity:
- Wiegmann, RSC080804, Enclosure, Rainproof, Series: RSC, 8 in Width, 4 in Depth, 8 in Height, NEMA 3R NEMA Rating, Screw Cover, Lock: Padlock, 256 cu-in Capacity, Wall Mounting, Carbon Steel, Polyester Powder Coated, Gray
RSC080804 Application
Outdoor ApplicationsRSC080804 Includes
ScrewsRSC080804 Item Features
- Hasp for padlocking or meter seal is provided
- No gasketing is required
- Embossed mounting holes
- Knockouts are standard on bottom of 4 in deep enclosure
- ANSI-61 gray polyester powder inside and out over carbon steel
- Bodies and doors fabricated from 16 ga carbon steel
- Drop shield top and smooth seamless sides and front
- A slip-on reversible cover is securely fastened with screws located along bottom edge
- 6 in and 8 in W (A-B-A) knockout pattern
- Designed for use as wiring boxes and junction boxes, provide protection in outdoor applications against rain, sleet and snow or indoors against dripping water
RSC080804 Standards
NEMA/EEMAC|CSA File No. LL66078|UL 50|UL File No. E6924|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2259290Part Number #RSC080804UNSPSC39131714UPC00786725400300
