- Fabricated from 14 ga G-90 pre-galvanized steel
- Flat, removable covers fastened with plated steel screws
- Cover design permits easy removal without extracting cover screws
- Mounting holes on the back of the enclosure
- Removable concentric knockouts on all four sides
- Flush covers must be ordered separately for flush mount applications
Specifications
Brand: Wiegmann
Cable Entry Size: 1/2 to 1-1/4, 1/2 to 1-1/4 in
Capacity: 1728, 1728 cu-in
Finish: Pre-Galvanized
NEMA Rating: NEMA 1
Series: SC Series
Type: Spot Welded
Color: Gray
Country of origin: US
Depth: 4, 4 in
Height: 24, 24 in
Material: Carbon Steel
Mounting type: Embossed Hole/Wall, Wall/Embossed Hole
Width: 18, 18 in
Manufacturer Name: Hubbell
UNSPSC: 39121324
UPC: 00786725846818

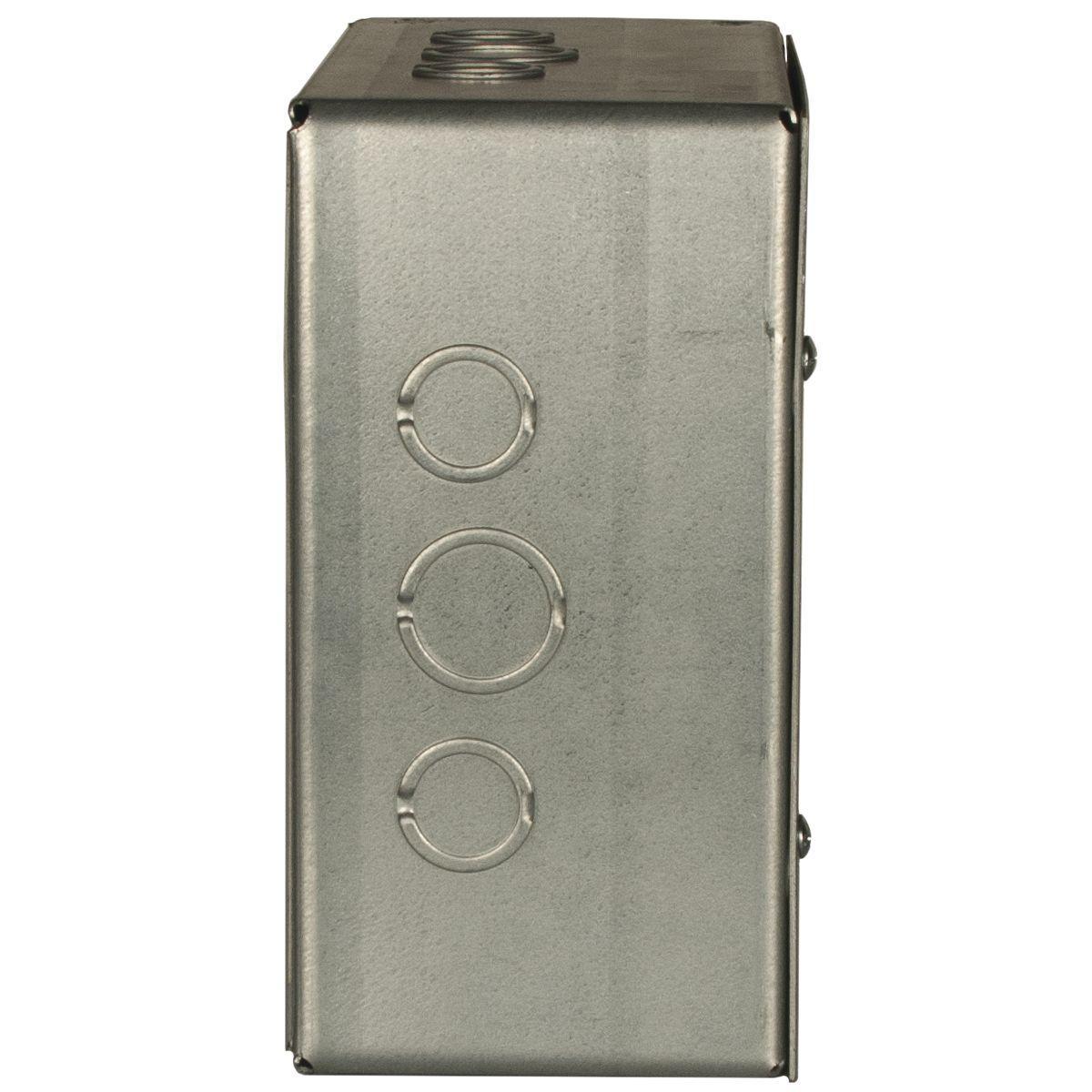

Wiegmann SC182404G Pull Box Enclosure
Wiegmann Pull Box Enclosure, Spot Welded, Series: SC Series, 18 in Width, 4 in Depth, 24 in Height, NEMA 1, Screw Cover, 1/2 to 1-1/4 in Cable Entry Size, 1728 cu-in, Embossed Hole/Wall Mount, Carbon Steel, Pre-Galvanized, Gray
Additional Description: WGMN-SC182404G N1 SCREW COVER 18X24X4 CRBN STL -GLV
Catalog Description: N1 Screw-Cover 18X24X4 Carbon Steel - Galvanized
Item FeaturesCommercial and General Industrial Applications
Item Features
Item FeaturesCSA File No. LL66078|OSHA Compliant|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|UL File No. E23553
